Place of Origin
Shanghai, China
Brand Name
SHTG
Model Number
3.6m,5.4m,7.2m
Power
Other, Mechanical
Usage
Other, Beckman Beam Test Sets
Specifications
Pavement Resilience Test Apparatuslever ratio: 2:1
indication graduation: 0.01mm
specification: 3.6m, 5.4m, 7.2m

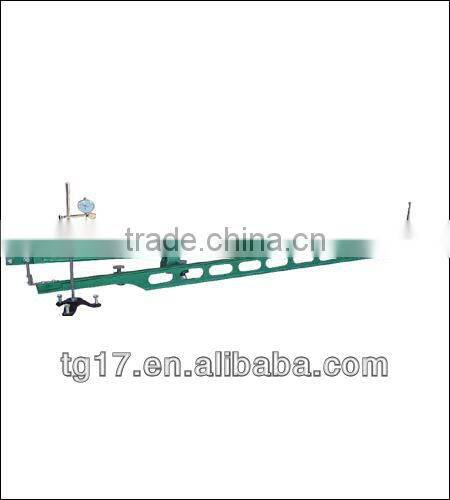

Pavement Resilience Test Apparatus
1. Applicatioin:
It is used to determin the intensity of pavement andcheck the quality of pavement through test the resilience value of pavement under negative pressure. It is widely used by highway design, execution and maintenance
2. Characteristic
- Patent product
- The supporting part of lever is used billard bearing structure
- High sensitivity, convenient operation, precise measurement
- Have three measuring bar with different length, is suitabl for measurement in all kinds of different working site
3. Specification:
- lever ratio: 2:1
- indication graduation: 0.01mm
- specification: 3.6m, 5.4m, 7.2m
4. Apparatus set:
- Front lever
- Back lever
- Apparatus seat
- Dial gauge bracket
- Measuring poling
- Measuring head: 50mm, 100mm, 150mm 1pc per size
- Dial gauge
Packing details
Net Dimension : 2200×350×350mm
Net Weight : 50kg
Pkg no : 2
Purchasing notes :
1. you have to buy at least 2sets to be used altogether
2. dial gauge as optional parts
Pls note:
we take OEM and special production for you. Meanwhile we will give you a certain discount.
