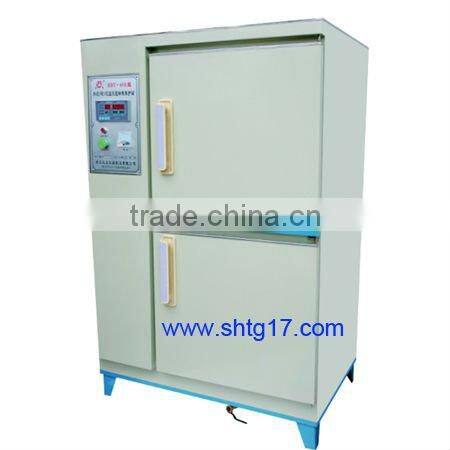

HBY-40B Standard Concrete Curing Cabinet (Patent Product)

       Standard Concrete Curing Cabinet (Patent product)

Item no.:HBY-40C

Functions :

include heating, refrigeration, spray, temperature and humidity controlling.

Structure: Inner structure is made of stainless steel, outer structure is made of high quality cold rolled steel and thermal insulation is polyurethane form. 6 shelves are made of stainless steel.  Two-doors design ensures good heat retaining property.

Specifications:

1. Digital control unit: temperature and relative humidity are displayed at all times as well as all the other phases

2. Voltage:AC220V, 50HZ

3. Compressor power:125W

4. Heating power:500W

5. Humidity: >95%RH

6. Temperature range: 15°C-30°C, ±1°C

7. Refrigerating system: direct cooling refrigerator, coil evaporator and exposed

condenser; inner fan to help heat exchange and reduce temperature  difference;Heating: U type electric heating tubes

8. Humidifier: ultrasonic humidifier, spray foam water molecular style ensures humidity >95%RH

9. Working room: 600X550X1380mm

10. Outer dimension: 1180X860X1640mm

11. Weight: 185kg

Feature:

Outsde is painted with polyester powder.
