Specifications

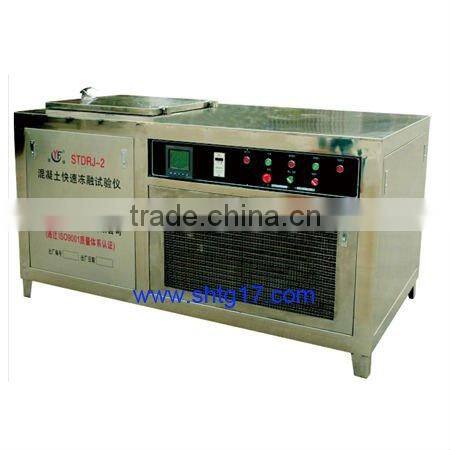

               Freezing and Thawing Testing Machine

Complies to ASTM/C666

Application:

The machine determines the resistance of concrete specimens to rapidly repeated cycles of freezing and thawing in the laboratory by method of Rapid Freezing and Thawing in Water.

Technical parameters:
1. Accepted specimens are 16 pcs and 28pcs
2. Specimen size: 100×100×400mm,Specimen container size:120×120×500mm
3. Freezing and thawing circle: around 2.5-4 hours while thawing time is no less than 1/4 of the whole circle
4. Time/specimen center temperature when freezing completed: 1.5-2.5hour/-17±2°C
5. Time/specimen center temperature when thawing completed: 1.0-1.5hour/3±2°C
6. Temperature difference between surface and center of specimens is less than 28°C
7. Standard cycles are 300 times while counter can record upto 999999 times
8. Freezing and thawing media: 120kg antifreeze fluid(-45°C)
9. Imported high quality compressor: complet shut-off type 7.5HP
10. Max working power: 9.7KW

Features:

1. compact in frame

2. stainless steel for both inner and outside of the cabinet

3. easy installation and maintainance

Freezing and thawing tesing machine
