Concrete Freezing and Thawing Testing Machine With ASTM/C666 Standard

Specifications

Concrete Freezing and thawing testing machine with ASTM/C666 standard

Complies to ASTM/C666

Application: The machine determines the resistance of concrete specimens to rapidly repeated cycles of freezing and thawing in the laboratory by method of Rapid Freezing and Thawing in Water.

Technical parameters:
1. Accepted specimens are 16 pcs and 28pcs;
2. Specimen size: 100×100×400mm,Specimen container size:120×120×500mm,
3. Freezing and thawing circle: around 2.5-4 hours while thawing time is no less than 1/4 of the whole circle;
4. Time/specimen center temperature when freezing completed: 1.5-2.5hour/-17±2°C;

5. Time/specimen center temperature when thawing completed: 1.0-1.5hour/3±2°C;
6. Temperature difference between surface and center of specimens is less than 28°C;
7. Standard cycles are 300 times while counter can record upto 999999 times;
8. Freezing and thawing media: 120kg antifreeze fluid(-45°C);
9. Imported high quality compressor: complet shut-off type 7.5HP;
10. Max working power: 9.7KW;

Features:

compact in frame; stainless steel for both inner and outside of the cabinet; easy installation and maintainance.

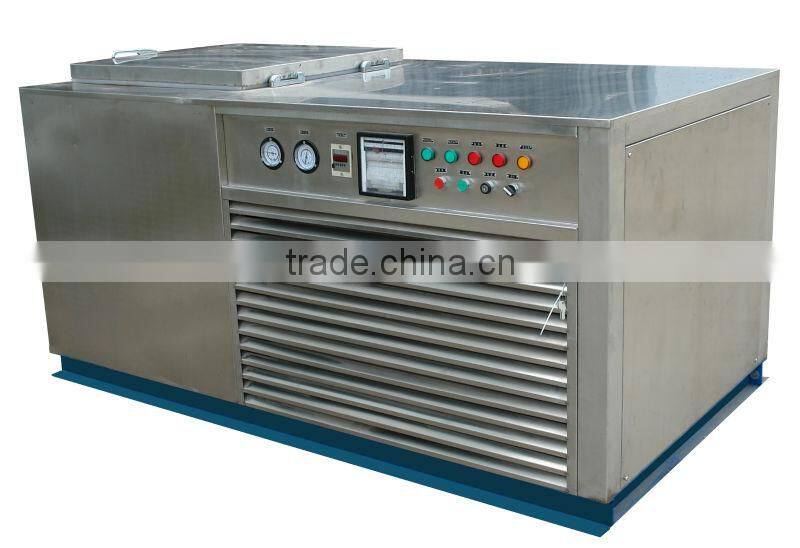

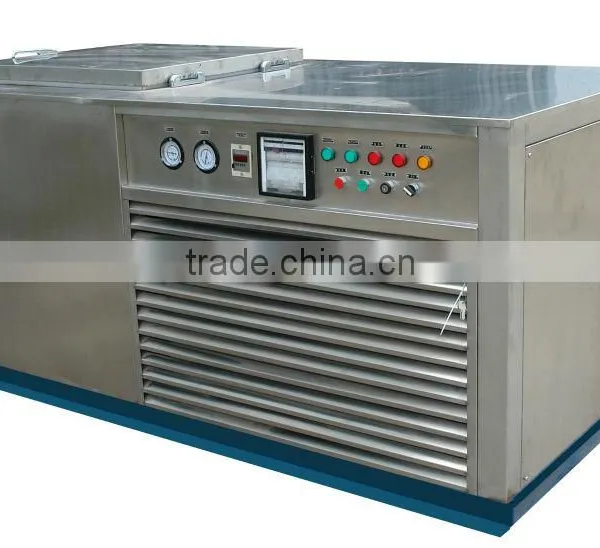

Below is picture of  Freezing and thawing testing machine:

Packing Material: Plywood Case meeting export long transport requirement.

Packing Method: Horizontal Packing to saving more shipping cost.

Shipping : within 10days after receive 100% payment .

Shipping way: shipped by sea or Air is avaliable.

Warrant one year.Honesty to working for you, after sale with our patient and sincerity.

Our company is a leading manufacturer of this field in China .covering an area of 26,680 square meters (40 Chinese acres);14 modernized standard workshops. And all the products are conform with ISO standard and Other special standard.
