Specifications
Geomembrane Wedge Welding Machine1.automatic continuous temperature PID control
2.Weld strength: more than 85%
Geomembrane Wedge Welding Machine
Function:
Geo-membrane welding apparatus are a new style welding apparatus developed by us ,has satisfied welding of the geo-membrane welding with all kinds of material properties and different thickness ,and used widely in the hot fusibility material welding like PE, PVC, HDPE, EVA, PP .
Feature:
1.The series of welding machine use automatic continuous temperature PID control in temperature control; control of high precision, small temperature fluctuation
2.Speed control adopt pulse width modulation(PWM)automatic regulator-speed and voltage circle
3.DC servo motor drive, the bigger output torque, run smoothly. The machine can keeping speed invariableness at the time of climbing slope, vertical climbing and overload pavement change
4.the series of welding machine working with steady performance, not be affected by outside temperature and voltage change
5.The machine has excellent performance,easy to operate,high-speed welding and excellent welding quality. Widely used in high-way, railway, tunnel, water warehouse, Sullage, Waste warehouse and building Etc
Technical parameters
1.Input voltage:220V∼ Frequency:50Hz
2.Power:1800W
3.Welding speed:0.5-5m/min
4.Heating temperature: 0-450°C
5.Welding material thickness: 1-4mm (single membrane)
6.Weld with: 15mm×2 Middle cavity12mm
7.Weld strength: ≥85% Base plate (Tensile shear direction)
8.Joint width: 120mm
9.Insulation class: Class II
10.Net Weight(about ): 13Kg

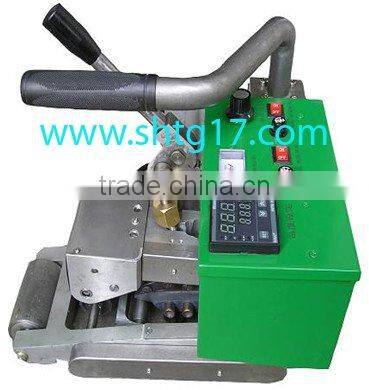

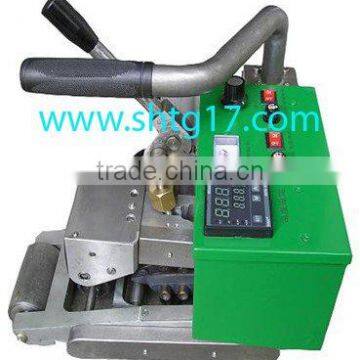

Below is picture of Geomembrane Wedge Welding Machine :
Packing Material: Plywood Case meeting export long transport requirement.
Packing Method: Horizontal Packing to saving more shipping cost.
Shipping : within 5-10 days after receive 100% payment .
Shipping way: shipped by sea or Air is avaliable.
Warranty one year. Honesty to working for you, after sale with our patience and sincerity.
