STHDY-1 Geosyntheic Materials testing machine

Specifications

Geosyntheic Materials testing machine
1.lever ratio : 1:6
2.smooth round structure if 25cm2 area
3.weight: 5Kn

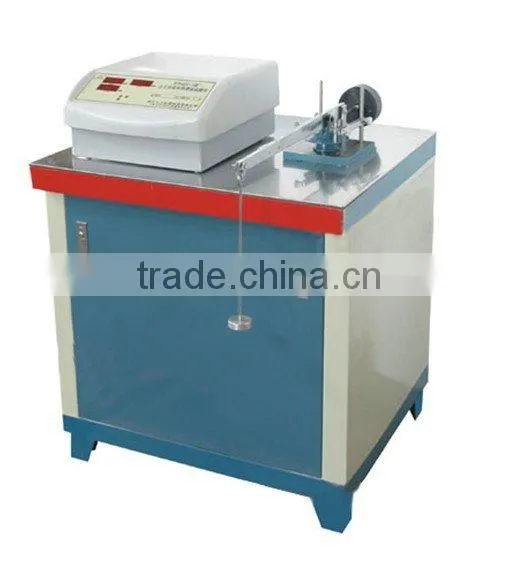

STHDY-1 Geosynthetics material Thickness Tester



Geosyntheic Materials testing machine



Applications:

It's use to determination the different thickness of geosynthetics material under different pressures

Features:

The instrument uses lever plus weight method to exert loading force, , lever ratio : 1:6.
Displacement sensor for measuring the vertical distance between the base plate and the presser foot
Specification:

pressing foot size : smooth round structure if 25cm² area, weight: 5Kn , pressure force exterted by pressing foot on specimen
Base plate: more than 2times of pressing foot
vertical loading by lever and weights, value is 20±0.1Kpa,200±01Kpa.
displacement meansurement by laterial displacement transducers
