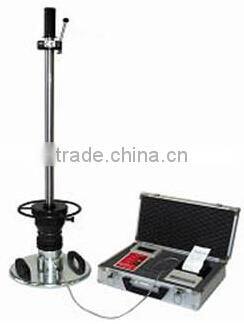

dynamic deformation modulus tester
Product Details:
LFG type Evd dynamic deformation modulus tester, falling weight bearing capacity of foundation Tester, is for high-speed rail-based bed surface and the transition section of the Evd graded gravel testing, the new railway, the existing railway speed transformation K30 detection, as well as the highways, airports, urban transport, ports and industries. Determination of embankment under the action of moving loads bend value is to assess the amount of subgrade bearing capacity and deformation.
Scope of application:
Rail / road earthwork construction
Ditch soil quality test
Cable trench fill pressure test
Construction cushion Detection
Backfill the basis of quality test
Pile dipping test
Building the foundation frame deformation detection
Features:
²Small size, light in weight to carry - the total weight of 35 kg
²Installation and removal easy, simple - a person may operate
High degree of automation, test speed - a test just 3 minutes
Performance is stable, reliable, high precision - the use of advanced sensor technology
Environmentally friendly products, has been people-oriented - no radiation, exhaust and other pollution
Technical parameters:
Loading Device
Total weight: 15.0kg
Drop Hammer Weight: 10.0kg
Maximum impact: 7.07kN
Impact duration: 18.0 ± 2.0ms
Material: Galvanized steel / alloy steel
Load plate
Diameter: 300mm
Thickness: 20.0mm
Weight: 15.0kg
Material: Galvanized steel
E-subsidence Tester
Subsidence Test Range: 0.1 ~ 2.0mm ± 0.02mm
Evd test range: 10MPa ~ 225MPa
Power Supply: 4xR6 Battery
Temperature range: 0 ~ 50°C
Appearance Dimensions: 210mmx80mmx25mm
Storage capacity: 200 Group Test Curve
Weight: 0.4kg
Packing Material: Plywood Case meeting export long transport requirement.
Packing Method: Horizontal Packing to saving more shipping cost.
Shipping : within 5-10 days after receive 100% payment .
Shipping way: shipped by sea or Air is avaliable.
Your inquiries will be replied in 24 hours, 24 hours technical support by email
Honesty to working for you, after or before sale with our patient and sincerity.
