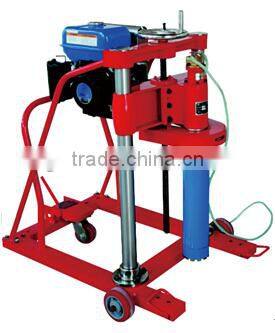

STHZ-20 Concrete Core Drilling Machine (EN 12504-1)

STHZ-20 Concrete Core Drilling Machine (EN 12504-1)

Application:

the core drilling machine which combines high speed cutting technology and thin walled diamond bits, is widely applied to drill and core in building works,

equipment installation projects and construction inspection projects.

Specifications

1.Max. drilling diameter: Φ200mm;

2.Max. drilling depth: 400mm (up to 1500mm by using

extension bar);

3.Motor power: 3.3KW

4.Principal axis speed: 800-1200 r.p.m

5.Weight:140Kg

Features:

double posts structure, YAMAHA motor as the driving force; no need screw fixation; machine is mounted on 3 wheels for ease of movement; reliable and convenientin operation. The core drilling machine is able to drill and cut high strength concrete, with high effeciency, precise hole position, smooth wall of hole and cored specimen,

small vibration and no damage to construction.
