50Kn CBR Testing Machine1. New Model by our factory
2. 50Kn Cap
3. displacement and load by hign transducer

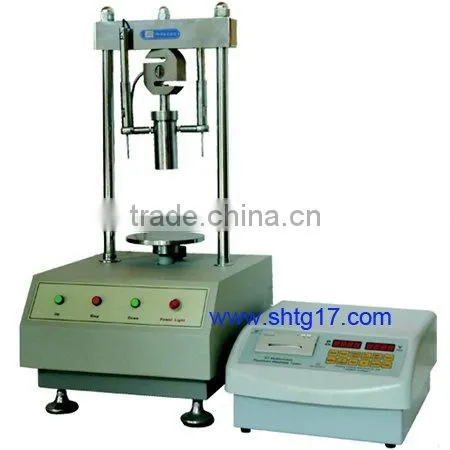

50Kn CBR Testing Machine
Selling Points:
1. New Model by our factory
2.50Kn Cap
3.Heavy-duty testing machine
4. Measuring displacement and load by hign precision transducer
Application
The apparatus is suitable for doing CBR test (bearing-ratio test) for the soil, the base course and the sub-base materials after making the specimen in the prescriptive cylinder.
the machine features a rigid two-column frame with upper cross-beam, which can be adjusted in height and locked in posiion with locknuts. the driving force is provided by an linkage of motor, worm and worm wheel housed in the base position cabinets, which also accommodates the motor and the electric panel, can openated both by motor and manual handle,
Specifications:
Capacity: 50KN
Standard penetration speed: 1mm/min(BS Standard), 1.27mm/min (ASTM Standard)
Testing range: 50KN
Size of the penetration rod: Dia 50×100mm
Size of the cylinder: 152×170mm
Electricity supply: AC220V±5%, 5
CBR Tester, Soil Testing, Soil Tester, Lab CBR Test, California Bearing Ratio, 30Kn or 50Kn Cap, 1mm/min, 1.27mm/min,
3. Accessores
Guide bracket and ball seating, adaptor to fit pressure transducer, pressure transducer 50kn Cap, connect pressure transducer/accessories, adjustable CBR Penetration piston, adjustable transducer holder, 25mm displacment transducer, digital controller plus data acquisition and processing system and so on ,
ASTM / BS Digital CBR Machine
