Motorized Fluidity Apparatus1.Digital display
2.Motor driven
3.Grind and polished table
4.Sturdy machined base-plate

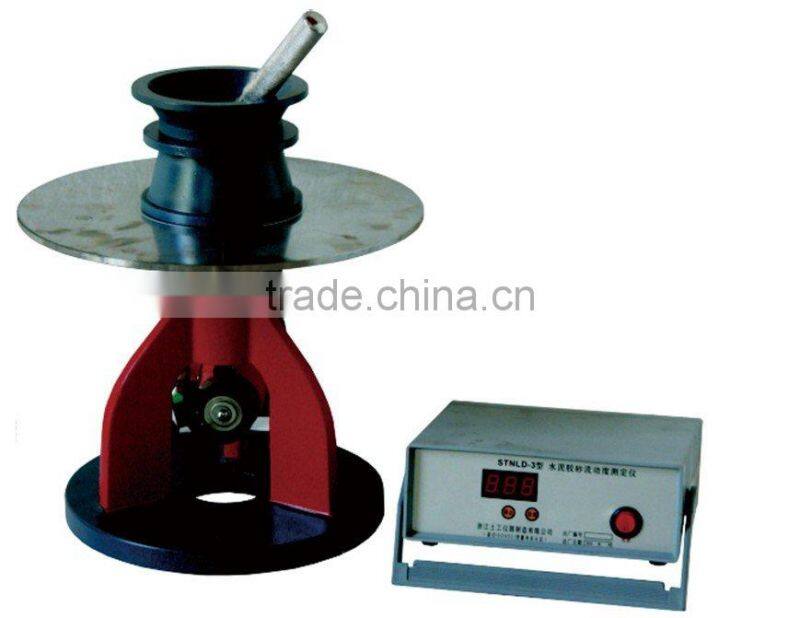

Motorized Fluidity Apparatus ( Flow Table )
Application:
In accordance with GB/T2419-2005 new standard,
The apparatus is used to test the Mobility and workability of cement mortar,. The fluidity of cement and mortar is reaction of Plasticity of cement and mortar, testing and controlling the fluidity of cement and mortar is basic elements to assure the accuracy and Commeasur ability.
Main technical data:
Weight of jumping part: 3450g±10g
Drop distance of round steel plate jumping part: 10mm±0.1mm
Dia of round table: ¢300 mm±0.1mm
Cone mounted round mould:
Dia of top opening: ¢70 mm±0.5mm
Dia of bottom opening: ¢100 mm±0.5mm
Height: 60mm±0.5mm Cylinder tampering rod: ¢20mm±200mm
Automatic stop frequency : 30times
Jumping time: 30s Power: 220V. 50Hz
Net size: 400400×690mm, Net Weight: 5kg
