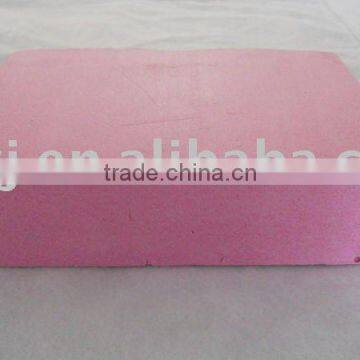

XPS foam board
- 30000 Cubic Meter / Cubic Meters per Month
- ShangHai
- T/T
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | JinYi | |
Model Number | JY-XPS032 | Material | Other, XPS |
Product Description
Specifications
XPS is light weight and easy to cut and carry . It is a superior building material of environmental protection and energy-savingMain specification of JinYi XPS foam board
Color:Pink(normal color), blue,other color is optional
Compressive strength: 150kPa---700kPa
Length:1200mm---6000mm width:600mm---1350mm thickness:5mm---140mm
Edge treatment: flat(SS)type Overlap joint(SL)type TG tenon type
Surface treatment:with skin(smooth),without skin(roughening),line groove surface,special embossing surface
Main Characterisitics of JinYi XPS foam board
1.High compressive strength
XPS not only light-weight,its intrinsic mechanical strength make it even bear higher load pressure in residential,commercial and industrial buildings roof, ground,floor and wall, to provide the solution to the intergration of thermal insulation and structure.
2.Water-resistance
It's nearly 100% closed cell structure.Its water absorption in volume is less than 0.5%. No matter it is used under building floor, external side wall of basement .or in the inverted roof, It is R-value won't decrease due to the low water absorption and won't make qualitative change even in long-term iimmersion in water or suffering from repeated freeze-thaw cycle .
3.Flexible Usage
XPS with tight closed-cell structure, can be easily cut into different shape on the installationspot
It is facilitate to the abnormal joints of practical buildings, and can be used as insulation filler or in making variety of prefabricated units, such as refrigerated truck bodies, insulation doors etc...
4.Ligt-weight
XPS is light weight,low density(30-40Kg/m3).With suitable specification, it is convenient to install on the spot, easy to carry and install.
5.Excellent thermal resistance
XPS is with low thermal conductivity less than 0.030W/m.K Its stable and low thermal conductivity make it become the reliable insulation material for building roof, floor ,or external wall.
6.Recyclable
XPS insualtion board, a kind of foam plastic material,though can't naturally degrade, it is 100% recyclable and absolutely can reach the environmental protection .
7.Anti-microbial corrosion
XPS insulation board, without biodegradation, will not be microbial erossion, rot or mildew and can be widely used in the externa wall of the basement,planting roof and even can be buried underfloor for long time .
8.Anti chemical corrosion
XPS insulation board won't be corroded by most common chemicals such as acid, alkali,salt,water-based emulsion paint ,cement,asphalt etc..
Item | Unit | Property Index(with skin) | property Index(without skin) |
Compresive strength | Kpa | X150 X200 X250 X300 X350 X400 X450 X500 | W200 W300 |
Water absorption,immersion 96h | % | ≤1.0 | ≤2.0 ≤1.5 |
Water vapor permeability,23°C±1°C,RH50%±5% | ng/(m.s.Pa) | ≤3.5(X150 X200) ..≤3.0 (X250 X300 X350) ...≤2.0(X400 X450 X500) | ≤3.5 ≤3.0 |
Thermal conductivity,at average temperature of 10°C | W/(m.K) | ≤0.028 ≤0.027 ≤0.026 | ≤0.033 ≤0 |
Thermal conductivity, at average temperature of 25°C | W/(m.K) | ≤0.030 ≤0.029 ≤0.030 | ≤0.035 ≤0.032 |
Dimensional stability,70°C±2°C 48h | % | ≤2.0 ≤1.5 ≤1.0 | ≤2.0 ≤1.5 |
Combustion performance | grade | B1 B2 | B3 |
