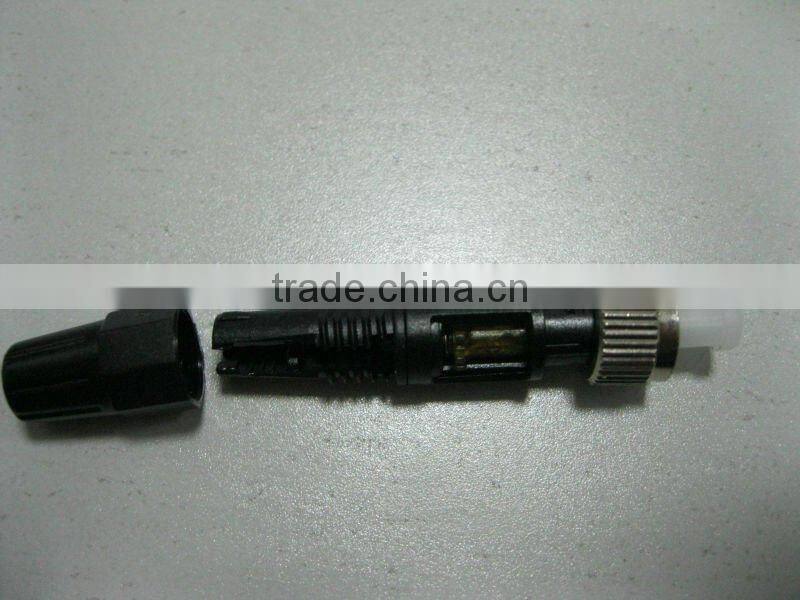

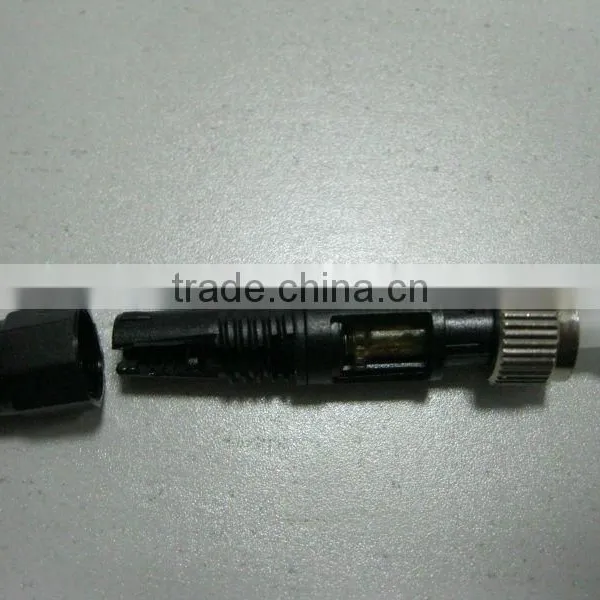

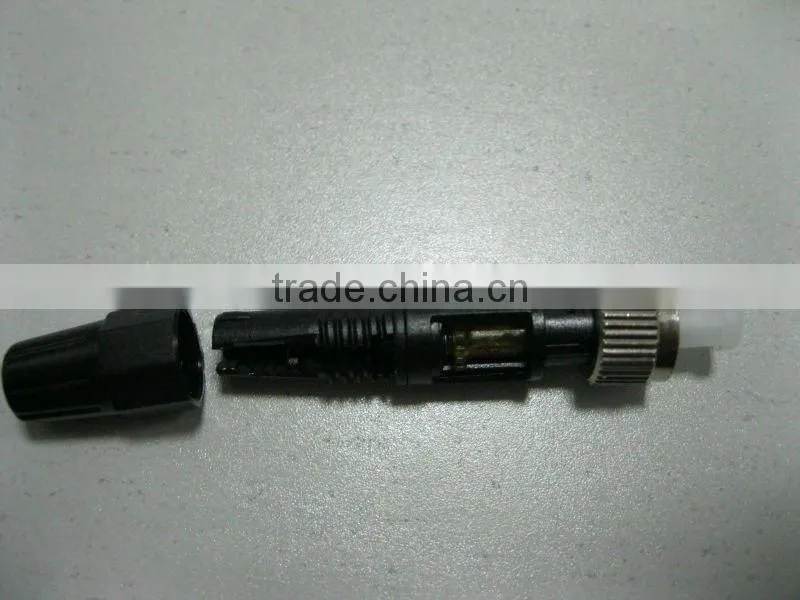

Fast connector (optical fiber direct type)
1.Product Introduction
With the increasing popularity and promotion of FTTH construction,optical fiber fast quick connecting and optical fiber mechanical cold technology had been developing,two new light path docking and welding products was born:Optical fiber fast connectors and optical fiber mechanical splicer.
Compared to traditional optical fiber connectors,Optical fiber fast connectors are more suitable for FTTH engineering siteoperation.
construction workers on the site can make connecter on the reservations pigtail , and loss, tensile, stability and performance can be achieved within the plant production of traditional optical fiber connectors of the same level.
Ferrule in optical fiber direct type fast connector have no reserved fiber,there is no splice point in V-Groove,fiber end can be checked when construction,and without intermittent points in it.Adopt the three-point clamping techniques,separately clamp and fasten 0.125 bare optical fiber, 0.25 or 0.9 tight pack line, kevlar line, 3 * 2 cable skin, 2.0 or 3.0 fiber optic jacket, solid tight high strength, good stability.
2.Product Type
Connectoe: SC type FC type;
Splice technology: Embedded optical fiber type or optical fiber direct type.
3. Product Feature
•Ferrule in optical fiber direct type fast connector have no reserved fiber,there is no splice point in V-Groove,reduce the fault point and link loss
•Adopt the three-point clamping techniques,ensure tensile and impact resistance ability between the fiber optic cable and connectors.
•High precision V-GROOVE design, guarantee of high precision of docking
•Connector the fiber, assembly plug and socket on site
•Not need to use a special tool, without the adhesive and grinding
•The operation is simple, more less and simple worker training
4 the performance index,
•insertion loss: < 0.5 dB
•return loss: > 40 dB
•allow inserted number: > 500 times
•tensile strength: > 19.6 N
