Help CenterOptical Fiber Horizontal Splice Closure
Related Products
Specifications
1. optical fiber horizontal splice closure2. Vertical type
3.Good quality High performance

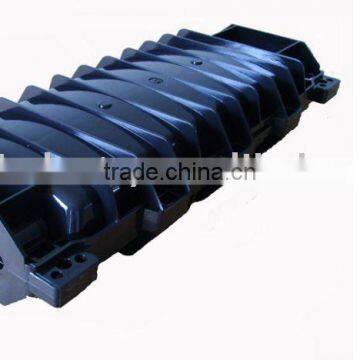

optical fiber horizontal splice closure
1.Products type/size:
model | Size(mm) | Core capacity | Cable Port(max) | Max diameter Of cable(mm) | Splice Tray model | Core capacity Tray | Weight (kg) |
1010 | 432 ×205 | 120 | 6 | φ19 | B | 12-24 | 2.3 |
2.Products capability
Sequence Number | Inspection Item | Requirement | Inspection | ||
1 | Appearance and configuration | Appearance | Shape integrity, | Meets the requirements | |
Optical Fibers Storage Set | Residual fiber length no less than 1.6m | >1.6m | |||
Residual fiber curvature Radius no less than 30mm | >35mm | ||||
Electric Connecting Set | Electric connecting or shut off section in the box, ground lead-out section on the external shell. | Meets the requirements | |||
2 | Seal performance | Charged with air which pressure is 60KPa±5KPa+65°C,20°C-40°C,2h10cycles,Allow air pressure change 5KPa,immersed in the water for 15min,no air bubble escape | No air bubble escape, air pressure change is 4KPs |
| |
3 | Insulated Resistance | After soaked into the water which is 1.5m deep for 24h,Insulated resistance≥2×104MΩ | Between two metal sections | 1×106MΩ |
|
Between metal section and ground | 1×106MΩ |
| |||
4 | Voltage Resisting Strength | After soaked into the water which is 1.5m deep for 24h,DC 15KV holding 1min,No breakage, no electric arc | Between two metal sections | No breakage No electric arc | |
Between metal section and ground | No breakage No electric arc |
| |||
5 | Seal performance | Charged with air which pressure is 100KPa±5KPaimmersed in the water for 15min,no air bubble escape; After remove for 24hr,air pressure keeps unchanged | No air bubble escape, air press keeps unchanged | ||
6 | Re-Seal performance | Repeat Seal performance 3 times, no air bubble escape; After remove for 24hr,air pressure keeps unchanged | No air bubble escape, air press keeps unchanged |
| |
7 | Axis Tensile | For 800N axis strength Charged with air which pressure is 60KPa±5KPa,last 1 min, air pressure keeps unchanged | Air press keeps unchanged | ||
8 | Crush | For 2000N/100mm,crush force, Charged with air which pressure is 60KPa±5KPa,last 1 min, air pressure keeps unchanged | Air press keeps unchanged |
| |
| |||||
| |||||
| |||||
