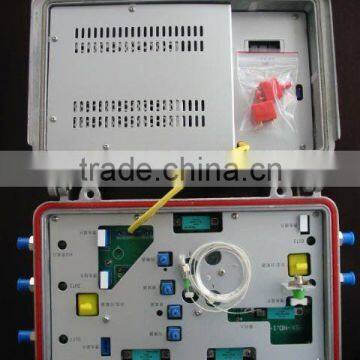

Numeral optical receiver

Specifications

Numeral optical receiver is used in the field to receive the CATV signal and, covert the optical signal to electric signal.

Products type:
Numeral optical receiver:four output and two output

Products capability:
Work both in 1310 window and 1550 window
Has return signal expand ability

Technology specification:

System RF feature:
C/N (dB)≥51
CSO (dB)≤-62
CTB (dB)≤-67
Output level:98dBμV/ch
Optical specifications:
Optical input:-7~+2 dBm
Optical suggestion input:-3~+1dBm
Wavelength:1100~1600nm

RF specifications
Band width:45~750/862MHz
Output level:100dBμV
output impedance (Ω):75
Flatness:≤±0.75dB
Return loss:≥16 dB(45~550MHz)
≥14 dB(550~750862MHz)

Order information:
Power supply:220V or 60V
Output ports:four ports or tow ports
Band width:45~750MHz,45~860MHz
Return signal ability available
