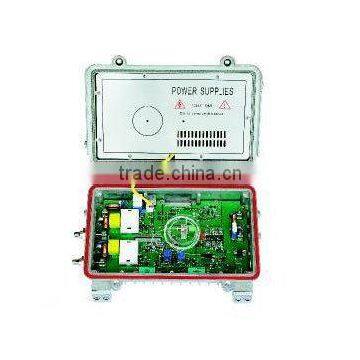

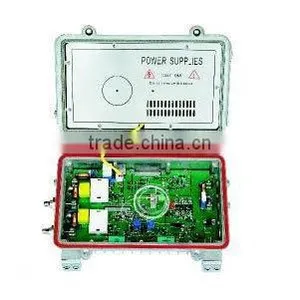

PIN Optical Receiver
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
APT
Model Number:
SM
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
APT
Model Number
SM
Specifications
PIN optical receiver is used in the field to receive the CATV signal and,has credible performance and is prone to be managed.Products type:
Numeral optical receiver:four output and two output
Products capability:
Work both in 1310 window and 1550 window
Has return signal expand ability
Technology specification:
System RF feature:
C/N (dB)≥51
CSO (dB)≤-62
CTB (dB)≤-67
Output level:98dBμV/ch
Optical specifications:
Optical input:-7~+2 dBm
Optical suggestion input:-3~+1dBm
Wavelength:1100~1600nm
RF specifications
Band width:45~750/860MHz
Output level:100dBμV
output impedance (Ω):75
Flatness:≤±0.75dB
Return loss:≥16 dB(45~550MHz)
≥14 dB(550~750862MHz)
Order information:
Power supply:220V or 60V
Output ports:four ports or tow ports
Band width:45~750MHz,45~860MHz
Return signal ability available
