NDK YUH-HUA electronic Fireplace Valve gas ignition burner Control System with remote heater parts

Name: NDK YUH-HUA electronic Fireplace Valve gas ignition burner Control System with remote heater parts
Brand: NDK YUH-HUA
Availability: InStock

FOB Price

US$ 0.1 - 1 / Set

300 Sets(Min. Order)

Port Keelung
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Gas Heater Type	Other, Fireplace Heater	Installation	Freestanding, Portable, Wall Mounted
Gas Type	Natural Gas, Propane	Use	Bathroom, Bedroom, Garden, Living Room, Other
Function	Adjustable Thermostat, Remote Controlled, Other, Adjustable Thermostat, Remote Controlled, Totally automatically controlled	Certification	CE, CSA, UL
Model Number	BK-368	Brand Name	NDK YUH-HUA
Place of Origin	Taiwan, China

Product Description

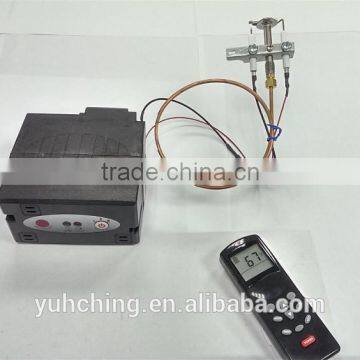

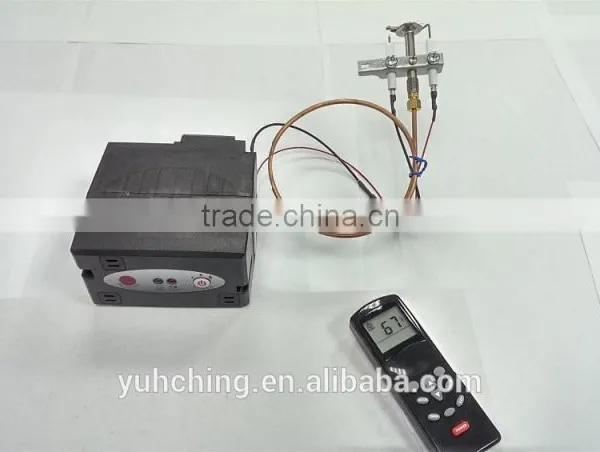

Fireplace Gas Control System with Remote Controller (BK-368)

Hot Point :

1. Remote Controlled
2. For fireplace and BBQ,Stoves
3. Both NG & LPG
4. With Gas valve & Ignition

5. CE & UL & CSA Approved

Specification :

1. Gas Type: Both Natural Gas & LPG (Propane)

2. Capacity: Can be adjusted by your market needs

NG : Max 45000 BTU / hr

LPG : Max 90000 BTU / hr

3. Temperature : ~ 80^.C (175^.F)

4. Operation Voltage : 110 / 220 VAC ; 3 VDC

5. Output Voltage : 12 kV / min

6. Ignition Circles : 6 Hz at 3VDC

7. Maximum Operation Pressure : 1 / 2 psi (3.5 kpa)

8. Flame Faliure Respone Time : 25 +/- 5s (safty control system).

Product Description

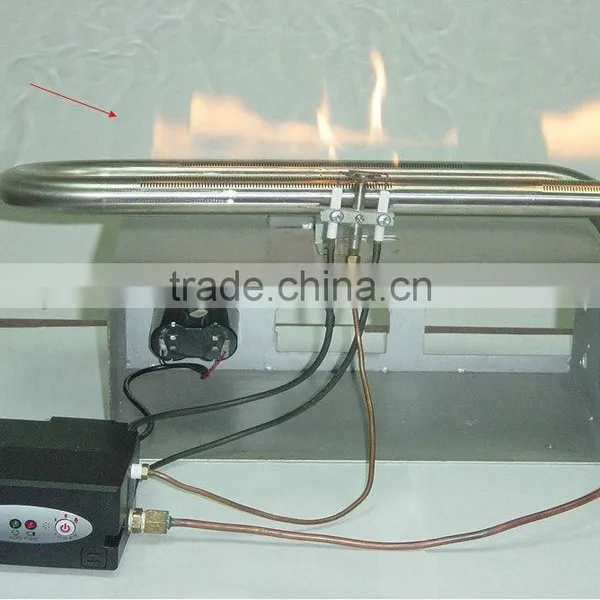

1. There are four stages of fires on this system. Pilot—>Small—>Medium—>Big fires

2. All functions are controlled by remote controller which means end consumers never use their hands to turn on/off under freezing weather again.

3. The most important thing is saftey. There are two gates of valves (all four valves) to contol the flow of gas in order to avoid the leakage of gases.

4. There is a Children saftey device on remote controller. Operator has to press Key press for 2 senconds to unlock and press the power key again then to turn on the heater.

5. Flame out saftey device. Please kindly find the operation rule in specification page 5.

6. Customerization service: we can adjust the BTU based on the gas pressure to match your markets demand to make sure the stability of fires.

7. There are 2 kinds of remote controller for choice. One is simple one for elderly people to use; another is one with LCD monitor for younger and fashion people to choose.

8. Only main system and 1 remote controller are necessary. Other accessries are optional.

9. ODS function is workable!

10. DC Battery for 3v and AC 100~240V all available in the meantime!

11. Emergency Device: While consumers meet Power Failure, they still can use DC power to go through freezing winter

12. CE/CSA/CUL Approved!
