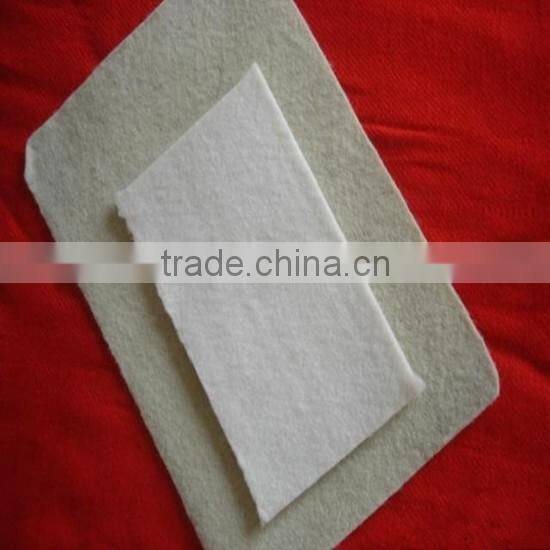

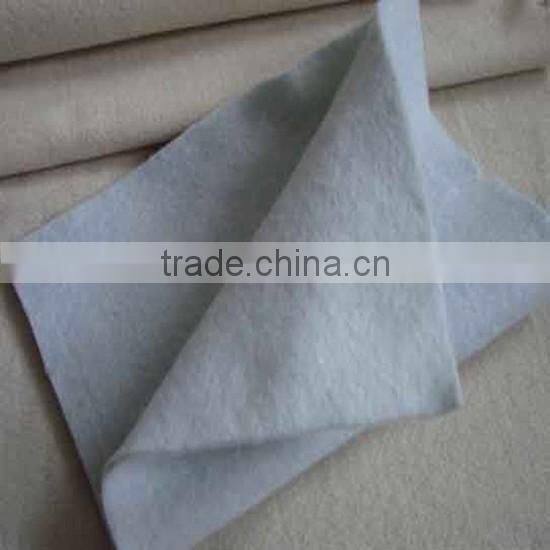

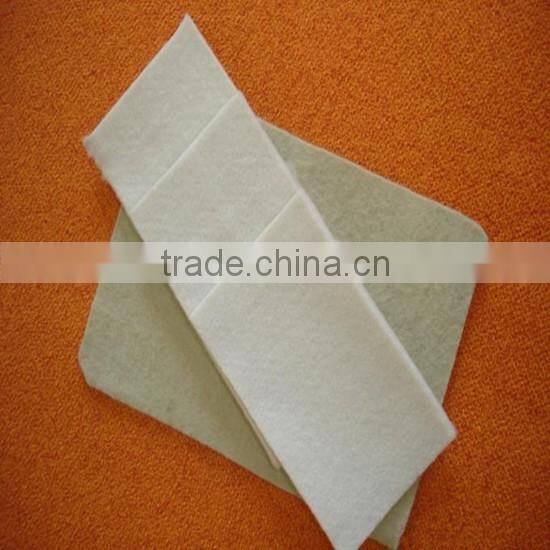

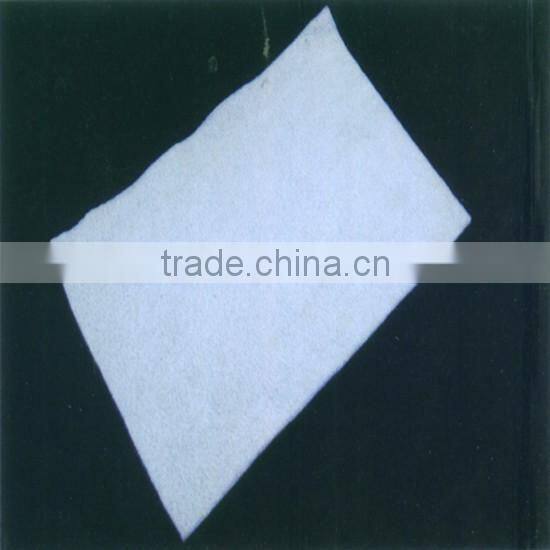

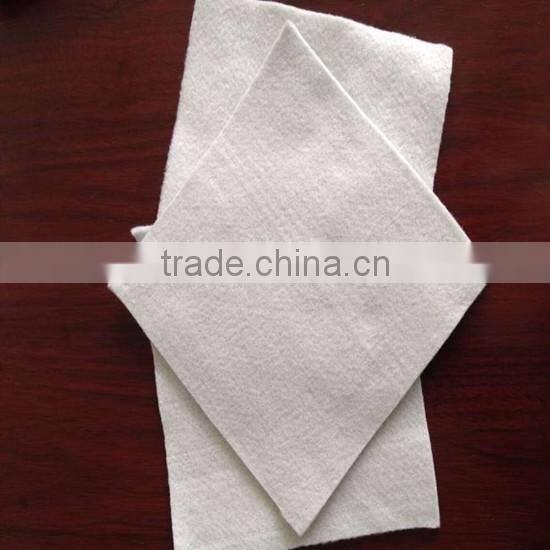

Help CenterNEW!! PP200,Polypropylene PP Staple Fiber Needle Punched Geotextile Non Woven
Related Products
-
Big Stock!! RTV2 Silicone for Making MouldUS$ 2.5 - 5MOQ: 1000 Kilograms -
Factory!! Monofilament Polypropylene Fiber/PP FiberUS$ 1,100 - 1,800MOQ: 10 Metric Tons
-
Factory!! 100% Viscose Rayon Filament YarnUS$ 2.5 - 5MOQ: 1000 Kilograms
-
Factory!!flame Retardant Fiber for Filling Pillows/fire Resistant FibreUS$ 1.2 - 2MOQ: 10 Kilograms
-
Factory!!Staple Fiber/fibre Virgin/ Composite Bamboo Charcoal FiberUS$ 1.8 - 4.8MOQ: 10 Kilograms
Description:
Polypropylene Needle Punched Geo Textiles Pp Staple Fiber For Geobag Geotextile Fabric Lowes is a special kind of nonwoven geotextile because of its special manufacture method by puncturing the rolling formed layer made of randomly oriented short staple fiber. Our raw material is the top class 100% new PP(Polyproplylene) or PET(Polyester) fiber. The needle punch process involves forcibly entangling layers of loose staple fibre into three dimensional structure by sequentially punching and pulling out barbed needles through the fiber matrix, and forms a strong fabric that retains its dimensional stability, expands the serving year to all the applied project. Because of its proven track record and versatility, Needle Punched, as the most commonly used Nonwoven Geotextile, is widely used in civil and environmental engineering applications like subsurface drainage, roadway separation, railroad stabilization, erosion control, hard armor underlayment, landfill leachate collection, underground retention/detention systems, environmental protection and other projects.
Specification:
Mass Per Unit Area: 100-900g/m2
Fiber Type: Staple fiber
Color: White, Black, Grey
Width Range: 1-6m
Length: 50m/100m/120m
Technical Data for Short Fiber:
| Properties | Unit | PET100 | PET150 | PET200 | PET250 | PET300 | PET350 | PET400 | PET450 | PET500 | PET600 | PET800 | |
| Mechanical Properties | |||||||||||||
| Tensile Strength | MD | KN/m | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 |
| TD | KN/m | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | |
| Tear Strength | MD | KN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 |
| TD | KN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 | |
| CBR Plunger Strength | KN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 | |
| Elongation at Yield | MD | % | 25~100 | ||||||||||
| TD | % | 25~100 | |||||||||||
| Hole Size | O90(O95) | mm | 0.07~0.2 | ||||||||||
| Vertical Permeability | cm/s | k*(10-1~10-3),k=1.0~9.9 | |||||||||||
| Identification Properties | |||||||||||||
| Material | / | Polyester | |||||||||||
| Color | / | White | |||||||||||
| Thickness | mm,≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
| Weight unit area | g/m² | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |
| Forms of Supply | |||||||||||||
| Roll width | m | 1~6 | |||||||||||
| Roll length | m | 100 | |||||||||||
