Help CenterHot Rolled Steel Angle With Standard ASTM A36 SS400 S235JR
Related Products
-
A36 70*70 Steel Slotted AngleUS$ 450 - 650MOQ: 1 Metric Ton -
ASTM Hot Rolled Steel Angle IronUS$ 450 - 650MOQ: 1 Metric Ton
-
Mild Steel Unequal Steel Angle BarUS$ 450 - 650MOQ: 1 Metric Ton
-
MS Perforated Steel Angle SizesUS$ 450 - 650MOQ: 1 Metric Ton
-
Slotted Steel Angle 50x50x5US$ 450 - 650MOQ: 1 Metric Ton
Working Today, Building Tomorrow!
We do care: angel steel
--Good Quality
--On-time Delivery
--Competitive Price

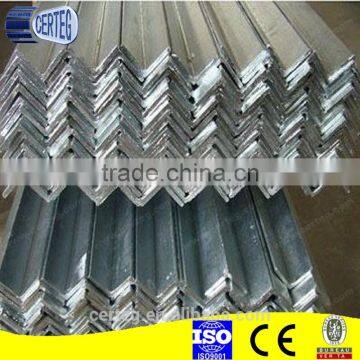

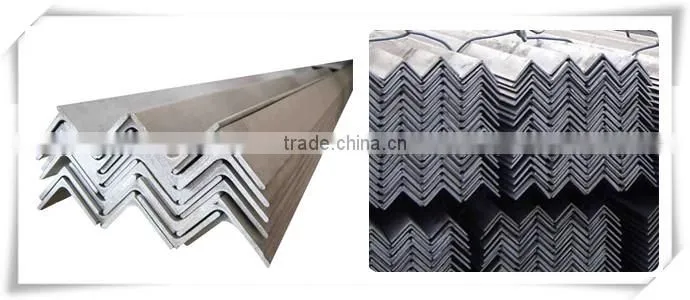

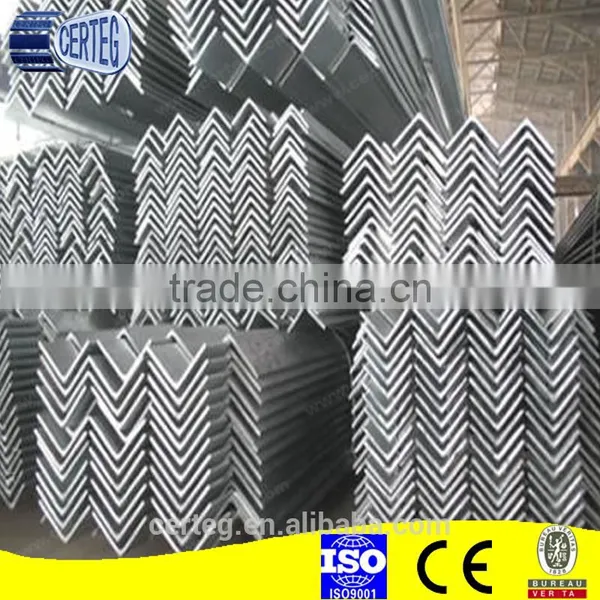

Part 1. Theproduct
Part 2. The specification
| Production Standard: | |||||||
| GB/T2101—89;GB9787—88/GB9788—88;JISG3192—94;DIN17100—80;GOCT535—88 | |||||||
| General Specification: | |||||||
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
| 25*3 | 1.124 | 70*5 | 5.397 | 100*6 | 9.366 | 70*45*4 | 3.57 |
| 25*4 | 1.459 | 70*6 | 6.406 | 100*8 | 12.276 | 70*45*5 | 4.403 |
| 30*3 | 1.373 | 70*7 | 7.398 | 100*10 | 15.12 | 70*45*6 | 5.218 |
| 30*4 | 1.786 | 70*8 | 8.373 | 100*12 | 17.898 | 100*80*6 | 8.35 |
| 40*3 | 1.852 | 75*5 | 5.818 | 110*8 | 13.532 | 100*80*7 | 9.656 |
| 40*4 | 2.422 | 75*6 | 6.905 | 110*10 | 16.69 | 100*80*8 | 10.946 |
| 40*5 | 2.976 | 75*7 | 7.976 | 110*12 | 19.782 | 110*70*8 | 10.946 |
| 50*4 | 3.059 | 75*8 | 9.03 | 110*14 | 22.809 | 110*70*10 | 13.476 |
| 50*5 | 3.77 | 75*10 | 11.089 | 125*8 | 15.504 | 140*90*8 | 14.16 |
| 50*6 | 4.465 | 80*6 | 7.376 | 125*10 | 19.133 | 140*90*10 | 17.475 |
| 60*5 | 4.57 | 80*8 | 9.658 | 125*12 | 22.696 | 140*90*12 | 20.724 |
| 60*6 | 5.42 | 80*10 | 11.874 | 125*14 | 26.193 | 160*100*12 | 23.592 |
| 63*5 | 4.822 | 90*8 | 10.946 | 140*10 | 21.488 | 160*100*14 | 27.247 |
| 63*6 | 5.721 | 90*10 | 13.476 | 140*12 | 200*125*12 | 29.761 | |
| 63*8 | 7.469 | 90*12 | 15.94 | 200*125*14 | 34.436 | ||

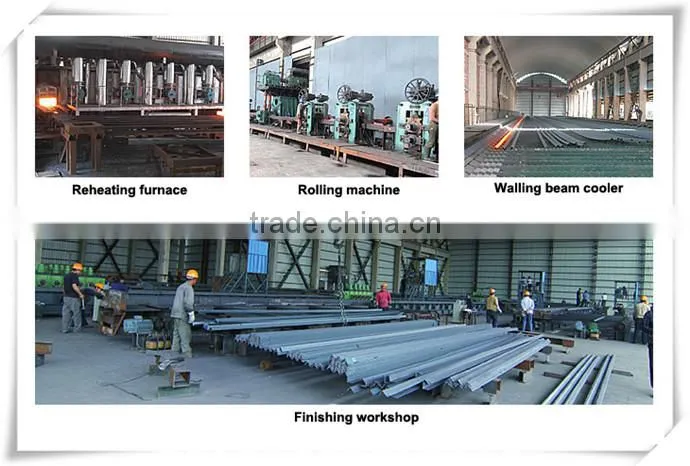

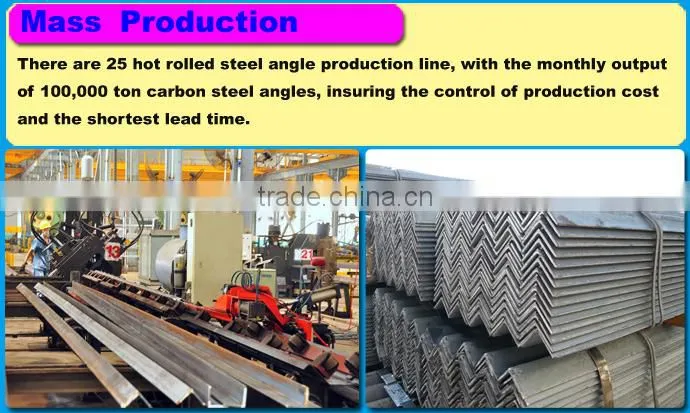

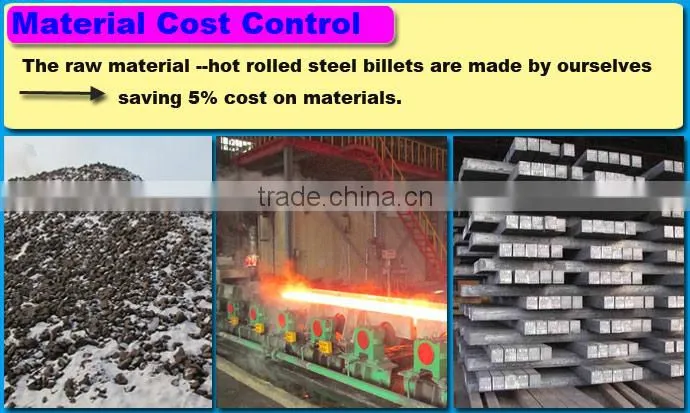

Part 3. Our production process & Quality control
Tips: The third party inspection is also acceptable(SGS,BV,COC,etc.)
Part 4. Why us

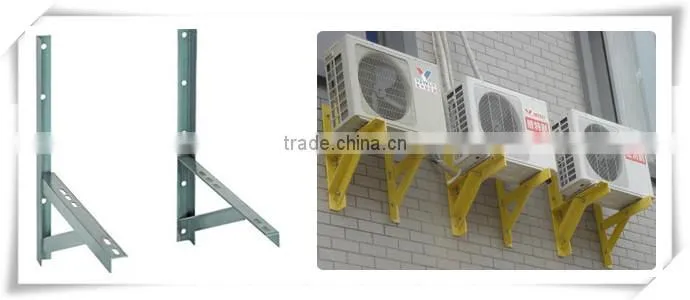

Part 5. Applications or projects
Contact us
24 hours feedback, 48 hours solution.
Contact person:Jack Han
M.B/Whatsapp:+86 18258211356
Skype:certeg09
Tel:+86-571-86550987
Fax:+86-571-86576647
For more information, please feel free to contact.
