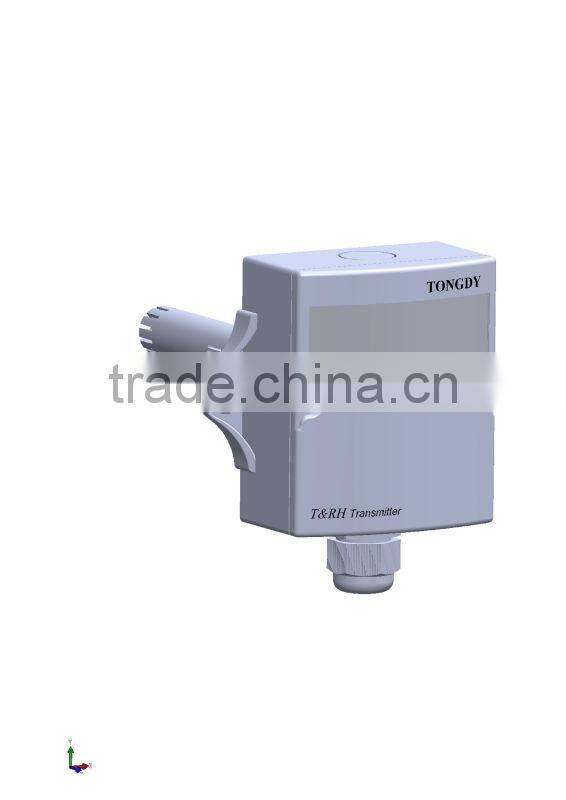

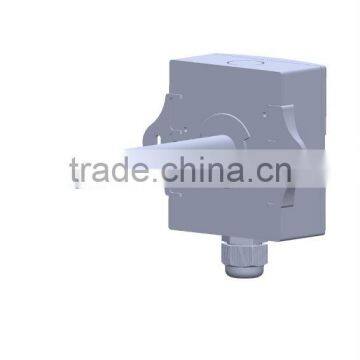

Help CenterDuct Type Temperature Humidity Transmitter
Related Products
-
Wholesale Duct Mounting Temperature Humidity MeterNegotiableMOQ: 10 Pieces -
Duct Type Temperature and Humidity MeterNegotiableMOQ: 10 Pieces
-
Super Temperature Humidity ControllerUS$ 1 - 2MOQ: 10 Pieces
-
Super Temperature and Humidity SensorsNegotiableMOQ: 10 Pieces
-
Wholesale Duct Mounted Temperature Humidity TransmitterNegotiableMOQ: 10 Pieces
Specifications
High accuracy sensors with combined temperature andrelative humidity together with the digital auto compensation
Temperature and Humidity Transmitter Features
u Designed for detection temperatureand relative humidity
u High accuracy sensors with combined temperature andrelative humidity together with the digital auto
compensation
u Outside sensing probe design for measurements more accurate,no influence from components
heating
u Special white backlit LCD can be selected with displayingboth actual humidity and temperature
u Smart structure for easy disassembly
u Provide three types of wall mounting and duct mounting, andsplit type
u Provide up to two dry contactoutputs with each 5amp
u Friendly operation buttons forsetup and operating
u Modbus RS485 communication optional
u ZigBee wireless optional
u CE-Approval
Temperature and Humidity Transmitter Applications
u High end HVACsystems
u Ventilation systems
u Detection and display temperatureand RH measurements
u Control temperature and humidity devices
u Modbus communication systems
u Wireless receiving and transmissionof temperature& RH
Specifications
|
Temperature |
Relative Humidity |
Accuracy |
±0.4°C(0°C~50°C) |
±3%RH (20%-80%RH) |
Measuring range |
0°C~50°C(32°F~122°F) (default) |
0 -100%RH |
Display resolution |
0.1°C |
0.1%RH |
Stability |
±0.1°C |
±1%RH per year |
|
Longtime storage environment |
10°C-50°C, 20%RH~60%RH |
|
Output |
2X0~10VDC(default) or 2X 4~20mA (selectable by jumpers) 2X 0~5VDC (selected at place the order) |
|
RS485 interface(optional) |
Modbus RS485 interface |
|
Power supply |
24 VDC/24V AC ±20% |
|
Power cost |
≤1.6W |
|
Permissible load |
Max. 500Ω (4~20mA) |
|
Connection |
Screw terminals/ wire diameter:1.5mm2 |
|
Housing/ Protection class |
PC/ABS fireproof material / IP54 |
|
Dimension |
THP Series: 85(W)X100(H)X50(D)mm+65mm(external probe)XÆ19.0mm TH9 Duct Series: 85(W)X100(H)X50(D)mm +135mm(duct probe) XÆ19.0mm |
|
Net weight |
THP Series: 280g TH9 Duct Series: 290g |
|
Model Information
Product Type |
Model Name |
Description |
Wall Mounting(with adown external sensor probe)No LCD |
THP111/121/131 |
2X 0~10VDC/ 2X 4~20mA/ 2x 0~5VDC linear outputs for temperature and humidity measurements. Modbus RS485 interface. No LCD display. |
THP101 |
Modbus RS485 protocol for temperature and humidity measurements. No LCD display. |
|
Wall Mounting(with adown external sensor probe) LCD Display |
THP201 |
Modbus RS485 protocol for temperature and humidity measurements. LCD display temperature & humidity. |
THP210/220/230 |
2X 0~10VDC/ 2X 4~20mA/ 2x 0~5VDC linear outputs for temperature and humidity measurements. LCD display temperature & humidity. |
|
THP211/221/231 |
2X 0~10VDC/ 2X 4~20mA/ 2x 0~5VDC linear outputs for temperature and humidity measurements. Modbus RS485 interface. LCD display temperature & humidity. |
|
|
Duct Probe Type No LCD |
TH9111/121/131 |
Duct probe type with 2X 0~10VDC/ 2X 4~20mA/ 2x 0~5VDC linear outputs for temperature and humidity measurements. Modbus RS485 interface. No LCD display. |
TH9101 |
Duct type type with Modbus RS485 interface. |
|
|
Duct Mounting With LCD |
TH9201 |
Duct probe type with a Modbus RS485 interface. LCD display temperature & humidity |
TH9210/220/230 |
Duct probe type with 2X 0~10VDC/ 2X 4~20mA/ 2x 0~5VDC linear outputs for temperature and humidity measurements. LCD display temperature & humidity |
|
TH9211/221/231 |
Duct probe type with 2X 0~10VDC/ 2X 4~20mA/2x 0~5VDC linear outputs for temperature and humidity measurements. Modbus RS485 interface.LCD display temperature & humidity |
Postfix 1: temperature scaling
T05: 0°C~50°C(32°F~122°F) default (without the postfix indicates the default)
T06: 0°C~60°C(32°F~140°F)
T26: -20°C~60°C(-4°F~140°F)
No the postfix 1 indicates the default (0~50°C)
Postfix 2: extended probe of TH9
1: the probe length is added to 135+70mm
2: the probe length is added to 135+140mm
No the postfix 2 indicates the probe length is 135mm
For example: THP201-T0050 indicates the wall mounting transmitter with Modbus RS485 interface for temperature and humidity measurements. LCD display temperature & humidity. The temperature range is 0°C~50°C.
TH9211-1indicates the duct type transmitter with Modbus RS485 interface. LCD display temperature & humidity. The temperature scaling is -20~60°C. The duct probe length is extended to 135+70mm
