Super Room Temperature Humidity Controller for Cooling/Heating Device
- Beijing
You May Like
-
Good Feedback Room Temperature Humidity Controller for humidifier/dehumidifier
-
Good Quality temperature humidity controller for greenhouse
-
Wholesale Air Conditioner Room Temperature Sensor
-
Wholesale Digital Temperature Controller
-
Wholesale Digital Temperature Humidity Sensor
-
Tongdy Humidity Temperature Controller
Product Details
| Place of Origin | Beijing, China | Brand Name | Tongdy | |
| Model Number | F2000P-TH | Theory | Other, on/off output to control temperature and humidity | |
| Output | Digital Sensor |
Product Description
Specifications
Ambiance Relative Humidity controller (hygrostat) and control with temperature detection and optional temperature control
Features
u Detect and display ambiance relative humidity& temperature
u A high accuracy RH & Temp. sensor inside
u LCD can display working status such as %RH,
temperature, set point, and device mode, etc.
Makes reading and operating easy and accurate
u Provide one or two dry contact outputs to control a
Humidifier/dehumidifier and a cooling/heating device
u All models feature user-friendly setting buttons
u Enough parameters setup for end users for more
applications. All setup will be held even if power
failure
u Button-lock function avoids wrong operation and keep on the setup
u Infrared Remote Control (optional)
u Blue backlight (optional)
u Modbus RS485 interface (optional)
u Provide the controller with an external RH&Temp. sensor or external RH&Temp. sensor box
u Other wall mounting and duct mounting humidity controllers, please see our high accuracy hygrostat THP/TH9-Hygro series and THP –Hygro16 Plug-and-Play high-power humidity controller.

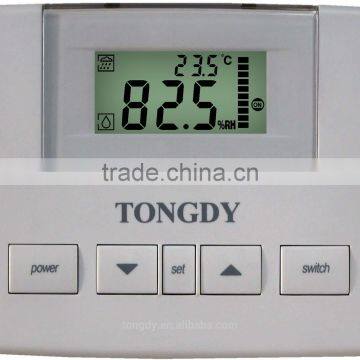

Buttons and LCD
humidity device on |
setting switch |
temperature |
humidify |
down up |
turn on/off |
set cool/heat mode for temperature |
dehumidify |
relative humidity |
Models
Product Name | Model | Description |
Humidity Controller Power supply: -(A)/(B)/(C) A: 230VAC B: 110VAC C: 24 VAC | F2000P-TH-K01-a-(A)/(B)/(C) | Detect and display RH&Temp. 1XON/OFF relay output to control a humidifier or dehumidifier. The max. current is 5A. |
F2000P-TH-K02-a-(A)/(B)/(C) | Detect and display RH&Temp. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device. The max. current is 5A. | |
F2000P-TH-K01-WT-(A)/(B)/(C) | Detect and display RH&Temp. with the external sensor. 1XON/OFF relay output to control a humidifier or dehumidifier. | |
F2000P-TH-K02-WT-(A)/(B)/(C) | Detect and display RH&Temp. with the external sensor. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device. | |
F2000P-TH-K01-TSM-(A)/(B)/(C) | Detect and display RH&Temp. with an external sensor box. 1XON/OFF relay output to control a humidifier or dehumidifier. | |
F2000P-TH-K02-TSM-(A)/(B)/(C) | Detect and display RH&Temp. with an external sensor box. 2X ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device. | |
Humidity Controller With Modbus | F2000PC-TH-K01-(A)/(B)/(C) | Detect and display RH&Temp. 1XON/OFF relay output to control a humidifier or dehumidifier. Modbus interface |
F2000PC-TH-K02-(A)/(B)/(C) | Detect and display RH&Temp. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device. Modbus interface. | |
Options for Above Models | ||
| Back light-EL | Blue back light displaying |
Remote receiving-R | Remote control humidity with the infrared hand held controller | |
¨ Specifications
| Power supply | 230VAC/110VAC/24VAC selectable in the order | |||
| Output | One or two Max. 5A relay/each for the On/Off output | |||
| Displaying | LCD | |||
| External sensor connection | Typical 2m, 4m/6m/8m selectable | |||
| Net weight | 280g | |||
| Dimensions | 120mm(L)×90mm(W)×32mm(H) | |||
| Mounting standard | Wall mounting in the wire box of 2”×4” or 65mm×65mm | |||
Sensor spec. | Temperature | Humidity |
| ||
Accuracy | ±0.5°C (20°C~40°C) | ±3.5% RH (20%-80%RH), 25°C |
| ||
Measuring range | 0°C~60°C | 0~100%RH |
| ||
Display resolution | 0.1°C | 0.1%RH |
| ||
Stability | <0.04°C/year | <0.5%RH/year |
| ||
Storage environment | 10°C-50°C, 10%RH~80%RH |
| |||
