Good Feedback Room Temperature Humidity Controller for Humidifier/dehumidifier

Name: Good Feedback Room Temperature Humidity Controller for Humidifier/dehumidifier
Brand: Tongdy
SKU: 141811130
Availability: InStock

Good Feedback Room Temperature Humidity Controller for Humidifier/dehumidifier thumbnail-1

Good Feedback Room Temperature Humidity Controller for Humidifier/dehumidifier photo-1

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Beijing, China

Brand Name:

Tongdy

Model Number:

F2000P-TH

Contact Supplier Request Quote Chat Now

Tongdy Sensing Technology Corporation (Beijing)

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Beijing, China

Brand Name Tongdy

Model Number F2000P-TH

Theory Other, on/off output to control temperature and humidity

Output Digital Sensor

Specifications

Ambiance Relative Humidity controller (hygrostat) and control with temperature detection and optional temperature control

Good Feedback Room Temperature Humidity Controller for Humidifier/Dehumidifier

Room Temperature Humidity Controller Features

u Detect and display ambiance relative humidity& temperature

u A high accuracy RH & Temp. sensor inside

u LCD can display working status such as %RH,

temperature, set point, and device mode, etc.

Makes reading and operating easy and accurate

u Provide one or two dry contact outputs to control a

Humidifier/dehumidifier and a cooling/heating device

u All models feature user-friendly setting buttons

u Enough parameters setup for end users for more

applications. All setup will be held even if power

failure

u Button-lock function avoids wrong operation and keep on the setup

u Infrared Remote Control (optional)

u Blue backlight (optional)

u Modbus RS485 interface (optional)

u Provide the controller with an external RH&Temp. sensor or external RH&Temp. sensor box

u Other wall mounting and duct mounting humidity controllers, please see our high accuracy hygrostat THP/TH9-Hygro series and THP –Hygro16 Plug-and-Play high-power humidity controller.

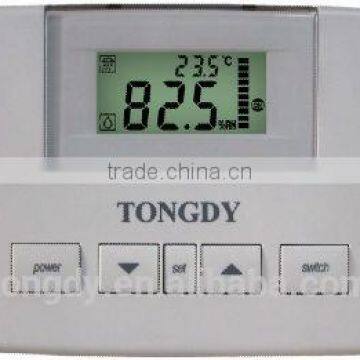

Buttons and LCD

humidity device on

setting switch

temperature

humidify

down up

turn on/off

set cool/heat mode for temperature

dehumidify

relative humidity

Models

Product Name	Model	Description
Humidity Controller Power supply: -(A)/(B)/(C) A: 230VAC B: 110VAC C: 24 VAC	F2000P-TH-K01-a-(A)/(B)/(C)	Detect and display RH&Temp. 1XON/OFF relay output to control a humidifier or dehumidifier. The max. current is 5A.
	F2000P-TH-K02-a-(A)/(B)/(C)	Detect and display RH&Temp. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device. The max. current is 5A.
	F2000P-TH-K01-WT-(A)/(B)/(C)	Detect and display RH&Temp. with the external sensor. 1XON/OFF relay output to control a humidifier or dehumidifier.
	F2000P-TH-K02-WT-(A)/(B)/(C)	Detect and display RH&Temp. with the external sensor. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device.
	F2000P-TH-K01-TSM-(A)/(B)/(C)	Detect and display RH&Temp. with an external sensor box. 1XON/OFF relay output to control a humidifier or dehumidifier.
	F2000P-TH-K02-TSM-(A)/(B)/(C)	Detect and display RH&Temp. with an external sensor box. 2X ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device.
Humidity Controller With Modbus	F2000PC-TH-K01-(A)/(B)/(C)	Detect and display RH&Temp. 1XON/OFF relay output to control a humidifier or dehumidifier. Modbus interface
Humidity Controller With Modbus	F2000PC-TH-K02-(A)/(B)/(C)	Detect and display RH&Temp. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device. Modbus interface.
Options for Above Models
	Back light-EL	Blue back light displaying
	Remote receiving-R	Remote control humidity with the infrared hand held controller

¨ Specifications

	Power supply		230VAC/110VAC/24VAC selectable in the order
	Output		One or two Max. 5A relay/each for the On/Off output
	Displaying		LCD
	External sensor connection		Typical 2m, 4m/6m/8m selectable
	Net weight		280g
	Dimensions		120mm(L)×90mm(W)×32mm(H)
	Mounting standard		Wall mounting in the wire box of 2”×4” or 65mm×65mm
Sensor spec.		Temperature		Humidity
Accuracy		±0.5°C (20°C~40°C)		±3.5% RH (20%-80%RH), 25°C
Measuring range		0°C~60°C		0~100%RH
Display resolution		0.1°C		0.1%RH
Stability		<0.04°C/year		<0.5%RH/year
Storage environment		10°C-50°C, 10%RH~80%RH
