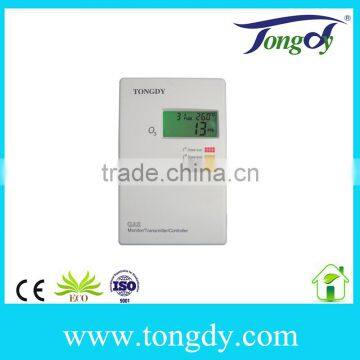

High Precise Ozone Controller O3 Monitor With One Relay Output

Name: High Precise Ozone Controller O3 Monitor With One Relay Output
Brand: Tongdy
SKU: 141811048
Availability: InStock

US$ 300 - 350 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

Tongdy

Model Number:

G09-O3

Tongdy Sensing Technology Corporation (Beijing)

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name Tongdy

Model Number G09-O3

High Precise Ozone controller O3 monitor with one relay output

1.Design for real time monitoring ambiance ozone level and temperature

2.Gentlest shape and convenient structure

3.Trusty quality with lower prices

4.Particular LCD display with three color backlights

5.LCD displays ozone level and temperature measurements

6.Electrochemical ozone sensor with 0~5ppm (0~5mg/m³), high sensitivity

7.Two stages alarm preset

8.Both alarm way: buzzer alarm and backlight

lours switch

10.Provide up to 010V analog output and 2 relay dry contact outputs

11.Humidity measurement and display optional

12.RS485 communication interface, 15 KV antistatic protection

13.Provide two easy methods for calibration and setup alarm points by end users: infrared remote controller and a software via RS485

Specifications:

Gas Detected	Ozone
Sensing Element	Electrochemical gas sensor
Sensor lifetime	>2 years, removable
Temperature Sensor	NTC
Humidity Sensor	HS series capacitive sensor
Power Supply	24VAC/VDC (power adaptor selectable)
Power Consumption	2.8W
Response Time	<50s @T90
Signal Update	1s
Warm up Time	<60 seconds
Ozone Measuring Range	0~5000ppb (0-5ppm)( 0~9.81mg/m³) 0~1000ppb
Display Resolution	1ppb (0.001ppm) (0.01mg/ m³)
Accuracy	±0.01ppm + 10% reading
Nonlinear	<1%FS
Repeatability	<0.5%
Zero Drift	<1%
Alarm	Buzzer and Yellow or Red backlight switch
Display	Green-normally, Orange – first stage alarm, Red- second stage alarm.
Temperature/humidity Measuring Range	5℃~60℃ (41℉~140℉)/0~80%RH
Analog Output	0~10VDC(default) or 4~20mA linear output selectable
Analog Output Resolution	16Bit
Relay dry contact Output	Two dry-contact outputs Max, switching current 3A (220VAC/30VDC), resistance Load
Modbus Communication Interface	Modbus RTU protocol with 19200bps(default) 15KV antistatic protection
Working Condition/Storage Conditions	5℃~60℃ (41℉~140℉)/ 0~ 80% RH
Net Weight	190g
Dimensions	130mm(H)×85mm(W)×36.5mm(D)
Installation Standard	65mm×65mm or 85mmx85mm or 2”×4” wire box
Interface Connection (Max)	9 terminals
Wiring Standard	Wire section area<1.5mm²
