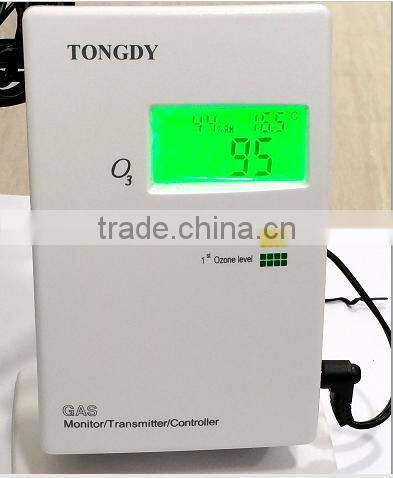

Popular wall mount or Desktop mount Ozone monitors & Controller O3 monitor with relay output
Ozone monitors & Controller Features
1. Design for real time monitoring room carbon dioxide level
2. NDIR infrared CO2 sensor inside with special Self Calibration System. It makes the CO2 measurement more accurate and more reliable in use.
3. More than 10 years lifetime of CO2 sensor
4. Temperature and humidity monitoring
5. Three-color (green/yellow/red) LCD backlitindicating ventilation optimal/moderate/poor based on the CO2 measurement
6. Two alarm ways: buzzer alarm and backlight Colours switch
7. Provide optional 1xrelay output to control a ventilator
8. Easy touch button for operation
9. High quality with the perfect appearance, best choice for home and office
10. 220VAC or 24VAC/VDC power selectable; power adaptor available; desktop and wall mounting type available
11. EU standard and CE-approval
Application
New G01-CO2 monitor/alarm is used to monitoring room CO2 level, as well as room temperature and humidity. It provides one on/off output to control a ventilator with four CO2 levels presetting.
Especially it provides both buzzer alarm and three colors backlit switching alarm.
u Hotel, exhibition hall, hospital, shop, restaurant, air port, train station, theater and other public places
u House, villa, office, meeting room, classroom and other rooms
u All ventilation systems
Specifications Ozone monitors & Controller O3 monitor with relay outputs
Gas detected |
Carbon Dioxide (CO2) |
Sensing element |
Non-Dispersive Infrared Detector (NDIR) |
Accuracy@25℃(77℉) |
±60ppm + 3% of reading |
Stability |
<2% of FS over life of sensor (15 yr typical) |
Calibration interval |
ABC Logic Self Calibration Algorithm |
NDIR life |
15 years |
Response Time |
<2 minutes for 90% step change |
Signal update |
Every 2 seconds |
Warm up time |
<3 minutes (operation) |
CO2 measuring range |
0~5,000ppm |
CO2 Display resolution |
1ppm |
Power supply |
100~240VAC or 10~24VAC/VDC selectable in the order |
Consumption |
3.5 W max. ; 2.5 W avg. |
Temperature sensor |
NTC 5K |
Humidity sensor |
HS series capacitive sensor |
Temperature measuring range |
-20~60℃(-4~140℉) |
Humidity measuring range |
0~99%RH |
Relay output (optional) |
One relay output with rated switching current: 3A, resistance load |
Operation conditions |
0~50℃(32~122℉); 0~95%RH, non condensing |
Storage conditions |
-10~60℃(14~140℉) 5~95%RH non condensing |
Weight |
200g |
Dimensions |
130mm(H)×85mm(W)×36.5mm(D) |
Installation |
Desktop and wall mounting(65mm×65mm or 2”×4”wire box) |
Housing and IP class |
PC/ABS fireproof plastic material, protection class: IP30 |
Standard |
CE-Approval |
n Models Guide for Ozone monitors & Controller O3 monitor
Model |
Name |
Description |
Power Supply |
Type |
|
G01-CO2-B320D |
CO2, temperature and humidity monitor/alarm |
Three-color backlit LCD, buzzer alarm |
100~240VAC |
Wall mounting |
|
G01-CO2-B320D-NR |
CO2 and temperature monitor/alarm (no RH option) |
Three-color backlit LCD, buzzer alarm |
100~240VAC |
Wall mounting |
|
G01-CO2-B331C |
CO2, temperature and humidity monitor/alarm |
Three-color backlit LCD, buzzer alarm |
18~24VAC/VDC with a DC socket. |
Wall mounting |
|
G01-CO2-B331C-NR |
CO2 and temperature monitor/alarm (no RH option) |
Three-color backlit LCD, buzzer alarm |
18~24VAC/VDC with a DC socket. |
Wall mounting |
|
G01-CO2-B340C |
CO2, temperature and humidity monitor/controller |
Three-color backlit LCD, buzzer alarm; 1 on/off output; touch-key for operation |
18~24VAC/VDC |
Wall mounting |
|
G01-CO2-B340C-NR |
CO2 and temperature monitor/controller (no RH option) |
Three-color backlit LCD, buzzer alarm; 1 on/off output; touch-key for operation |
18~24VAC/VDC |
Wall mounting |
|
G01-CO2-B340D |
CO2, temperature and humidity monitor/controller |
Three-color backlit LCD, buzzer alarm; 1 on/off output; touch-key for operation |
100~240VAC |
Wall mounting |
|
G01-CO2-B340D-NR |
CO2 and temperature monitor/controller (no RH option) |
Three-color backlit LCD, buzzer alarm; 1 on/off output; touch-key for operation |
100~240VAC |
Wall mounting |
|
Optional Accessories |
|
||||
870 |
Power adaptor |
Input:100~240VAC, Output: DC 24V/ 240mA |
Just for G01-CO2-B331C or G01-CO2-B331C-NR |
|
|
921 |
Wall mounting plate |
Accessory for wall mounting |
|
|
|
921+922 |
Desktop bracket |
As be the desktop type |
Just for G01-CO2-B331C or G01-CO2-B331C-NR |
|
|
Package & Installing

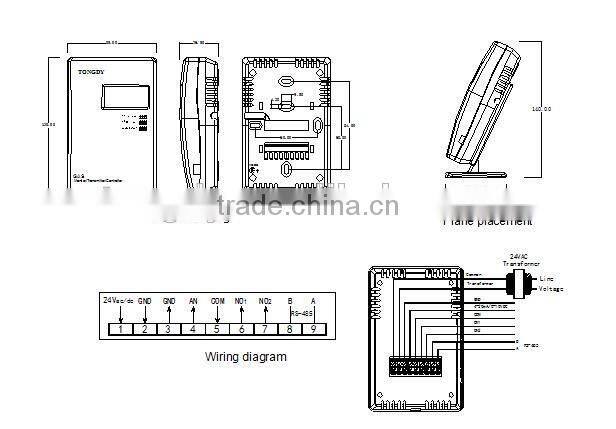

Wire Connection
FAQ
Company and Certification
Founded in 1999, Tongdy Control Technology is an industry leader which has designed and manufactured high quality IAQ products and HVAC controllers for 12 years.
Tongdy provides IAQ products including transmitters/controllers of carbon dioxide and carbon monoxide, with or without temperature and humidity detection; other IAQ indicators
and controllers of ozone and VOC’s, as well as micro particles.
The HVAC products include temperature and humidity transmitters, programmable and non-programmable digital thermostats and humidity controllers with Modbus and Bacnet
interface. Not only these products have Modbus or Bacnet option but also some of them have Zigbee or Wifi communication option.
All of these products have CE-approval.
