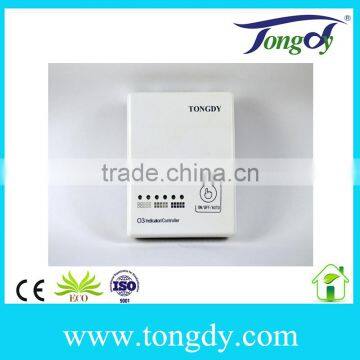

Best Ozone Transmiiter High Accuracy O3 Meter

Name: Best Ozone Transmiiter High Accuracy O3 Meter
Brand: Tongdy
SKU: 141811028
Availability: InStock

Tongdy Sensing Technology Corporation (Beijing)

US$ 70 - 150 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

Tongdy

Model Number:

F2000TSM-O3-LXXX

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name Tongdy

Model Number F2000TSM-O3-LXXX

Usage Other, detect ozone level and control ozone generator or ventilation

Theory Other, current or voltage

Output Analog Sensor

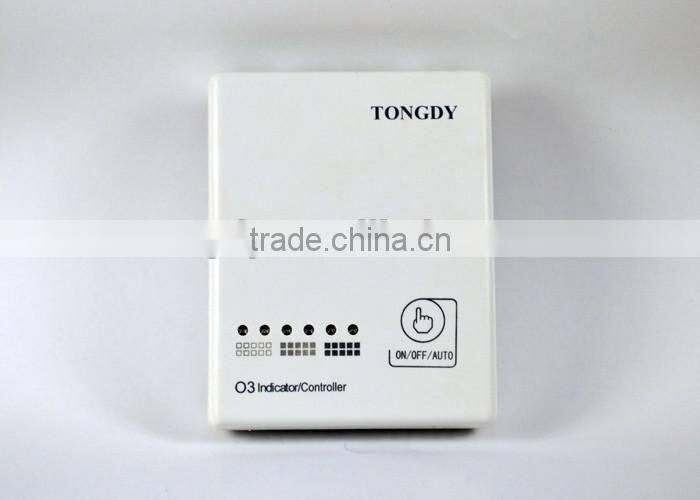

Best Ozone transmiiter high accuracy O3 meter

Ozone Indicator Features

u Real time detect ozone in wall mounting type

u Semiconductor ozone gas sensor inside and measuring range 10~500ppb.

u More than 5 years lifetime.

u Special temperature compensation design for ozone measurements

u Design an easy zero-calibration way

u Full time indicates ozone levels with special design 6 indicator lights

u Six different ozone range corresponds with different lights indicating.

u The on/off output option for control an ozone generator

u Four setting ozone level ranges can be selectable to control the relay output via jumpers

u Optional one analog output for ozone measurement

u Modbus RS-485 interface with 15KV antistatic protection, independent address setting.

Specifications

Gas detected	Ozone
Sensing element	Semiconductor ozone gas sensor
Power Supply	24VAC/VDC±10%
Consumption	2.2 W
Temperature sensor	NTC 5K
Warm up time	96 hours (first time) 1 hour(operation)
Signal Update	2s
O3 Measuring Range	10~500ppb
O3 measuring precision	±15ppb + 20% reading (10~50°C/30~70%RH)
Six indicator lights	The first green indicator light:O3≤49ppb The first and the second green indicator lights:50ppb~99ppb The first yellow indicator light:100ppb~199ppb The first and the second yellow indicator lights:200ppb~299ppb The first red indicator light:300ppb~399ppb The first and the second indicator lights:O3 ≥400ppb
Modbus interface	Modbus RS485 protocol with19200bps(default), 15KV antistatic protection, independent base address, 31 max network nodes
Relay output(optional)	One dry contact output, rated switching current 2A(resistance load). Provide four ozone ranges to be selected to control the relay turn-on/turn-off (50ppb /100ppb-default / 200ppb/ 300ppb)
Analog output(optional)	1X0~10VDC or 4~20mA for ozone measurements
Operation temperature	0~50°C (32~122°F)
Operation humidity	5~95%RH,non condensing
Storage conditions	10~50°C (50~122°F)
Weight	190g
Dimensions	100mm×80mm×28mm
Installation standard	65mm×65mm or 2”×4” wire box
Housing/ IP rate	PC/ABS plastic fireproof material, IP30
Standard	CE-Approval EN60730-1:2000 +A1:2004 + A16:2007 + A2:2008 Directive: 2004/108/EC

Models

ITEM	MODEL	DESCRIPTION
Ozone Detector/Controller	F2000TSM-O3-L100C	Ozone indicator with 6 LED indicator lights Modbus RS485 interface
	F2000TSM-O3-L101C	Ozone indicator with 6 LED indicator lights One dry contact output, Modbus RS485 interface
	F2000TSM-O3-L110C	Ozone indicator with 6 LED indicator lights One analog output, Modbus RS485 interface
