Specifications
1. electrochemical ozone sensor;2. ozone range: 0-5ppm
3. Remote control

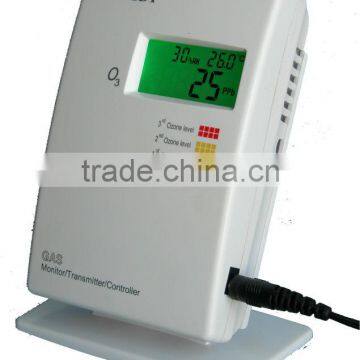

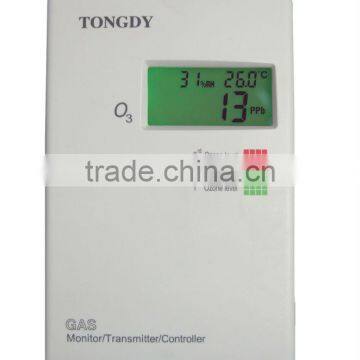

Super Ozone Measurer with electrochemical sensor
1.Design for real time monitoring ambiance ozone level and temperature
2.Gentlest shape and convenient structure
3.Trusty quality with lower prices
4.Particular LCD display with three color backlights
5.LCD displays ozone level and temperature measurements
6.Electrochemical ozone sensor with 0~5ppm (0~5mg/m3), high sensitivity
7.Two stages alarm preset
8.Both alarm way: buzzer alarm and backlight
lours switch
10.Provide up to 010V analog output and 2 relay dry contact outputs
11.Humidity measurement and display optional
12.RS485 communication interface, 15 KV antistatic protection
13.Provide two easy methods for calibration and setup alarm points by end users: infrared remote controller and a software via RS485
Application
Specially used for detecting indoor ambiance quality
Real time measuring ozone level and analyzing: alarm when ozone level is over proof, control ozone concentrations by controlling related devices in order to reach a certain level in some special places
Portable type for real time measuring and analyzing
Anti-epidemic and disease prevention, sanitary inspection, environment protection, health protection, etc. G09-O3 series is the best device used to detect and analyze ozone concentration.
Specifications
Gas Detected | Ozone |
Sensing Element | Electrochemical gas sensor |
Sensor lifetime | >2 years, removable |
Temperature Sensor | NTC 5K |
Humidity Sensor | HS series capacitive sensor |
Power Supply | 24VAC/VDC (power adaptor selectable) |
Power Consumption | 2.8W |
Response Time | <50s @T90 |
Signal Update | 1s |
Warm up Time | <60 seconds |
Ozone Measuring Range | 0~5000ppb (0-5ppm)( 0~9.81mg/m3) |
Display Resolution | 1ppb (0.001ppm) (0.01mg/ m3) |
Accuracy | ±0.01ppm + 10% reading |
Nonlinear | <1%FS |
Repeatability | <0.5% |
Zero Drift | <1% |
Alarm | Buzzer and Yellow or Red backlight switch |
Display | Green-normally, Orange – first stage alarm, Red- second stage alarm. |
Temperature/humidity Measuring Range | -20°C~60°C(-4°F~140°F)/0~99%RH |
Analog Output | 0~10VDC(default) or 4~20mA linear output selectable |
Analog Output Resolution | 16Bit |
Relay dry contact Output | Two dry-contact outputs Max, switching current 3A (220VAC/30VDC), resistance Load |
Modbus Communication Interface | Modbus RTU protocol with 19200bps(default) 15KV antistatic protection |
Working Condition | -20°C~60°C (-4°F~140°F)/ 0~ 99% RH |
Storage Conditions | -40°C~70°C(-40°F~158°F)/ 0~ 95% RH |
Net Weight | 190g |
Dimensions | 130mm(H)×85mm(W)×36.5mm(D) |
Installation Standard | 65mm×65mm or 85mmx85mm or 2”×4” wire box |
Interface Connection (Max) | 9 terminals |
Wiring Standard | Wire section area<1.5mm2 |
Manufacturing Process | ISO 9001 Certified |
Housing and IP class | PC/ABS fireproof plastic material, protection class: IP30 |
Compliance | EMC Directive 89/336/EEC |
