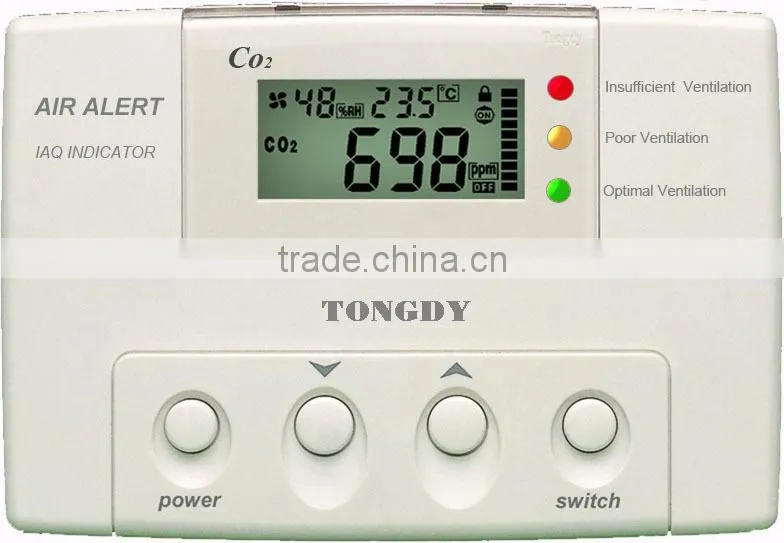

CO2 Controller Alarm for Ventilation

Name: CO2 Controller Alarm for Ventilation
Brand: Tongdy
SKU: 141810970
Availability: InStock

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

Tongdy

Model Number:

F2000IAQ-CO2-31XX/51XX

Tongdy Sensing Technology Corporation (Beijing)

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name Tongdy

Model Number F2000IAQ-CO2-31XX/51XX

Usage Auto

Specifications

1 CO2 indicator and alarm
2 Real-time detect and display room CO2 and temperature
3 3 LED indicator lights

Real-time detecting and display CO₂ level during 0ppm to 20,000ppm CO₂ range; Also detecting room temperature from 5 to 45℃

Optional real-time humidity from 5%RH to 95%RH

NDIR CO₂ sensor technology of infrared self diffusion, 15 years lifetime

Self Calibration Algorithm makes it in using without calibration amending

The three measured CO₂ ranges for 3-LED indicator lights selectable by end users

LED’s brightness adjustment

Optional 1X dry contact output or one 0~10VDC output to control a ventilation device

Easy preset CO₂ level for buzzer alert (optional)

Optional RS485 interface to connect to a PC or another system(optional)

Specifications

Gas detected	Carbon Dioxide (CO₂)
Sensing element	Non-Depressive Infrared Detector (NDIR)
Temperature sensor	NTC
Temperature correction	Self compensation
CO₂ NDIR life	15 years
Consumption	3.5W/ Max, 2.5W/ Average
Accuracy@25℃(77℉)	±40ppm + 3% of reading
Stability	<2% of FS over life of sensor (15 yr typical)
Warm up time	2 hours (first time) 2 minutes (operation)
CO₂ measuring range	0~5,000ppm(default ), 0~2,000ppm programmable selection
CO₂ setting & Display resolution	1ppm
Temperature measuring range	0~50℃(32~122℉)
Temperature setting range	5~45℃(41~113℉)
Option: 1X dry contact output	Rated currency for contact point: 2A220VAC/30VDC, resistance load
Option: RS485 communication interface	9600/14400/19200(default)/28800/38400bps rates selectable by program,15KV protection for static, independent address setting
Operation condition	0~50℃ (32~122℉), 0~95%RH without condensing
Power supply	220VAC/110VAC or 24VAC 50/60HZ±10%
Weight	380g
Dimensions	130mm×90mm×40mm
Connections Interface	Locate in interface of connection
Installment standard	65mm×65mm or 2”×4” wire box
Wiring standard	Wire section area<1.5mm²
Approval Standard	CE-Approval
Programming and selection	DIP switches inside and external push-buttons
