Specifications
LCD display with three colorbuzzer alarm and backlight colors switchover
1X relay output
touch button
Features
Design for real time monitoring room carbon dioxide
level
NDIR infrared CO2 sensor inside with special Self Calibration System. It makes the CO2 measurement more accurate and more reliable in use.
More than 10 years lifetime of CO2 sensor
Temperature and humidity monitoring
Three-color (green/yellow/red) LCD backlitindicating ventilation optimal/moderate/poor based on the CO2 measurement
Two alarm ways: buzzer alarm and backlight
Colours switch
Provide optional 1xrelay output to control a ventilator
Easy touch button for operation
High quality with the perfect appearance,
best choice for home and office
20VAC or 24VAC/VDC power selectable; power adaptor available; desktop and wall mounting type available
EU standard and CE-approval
Application

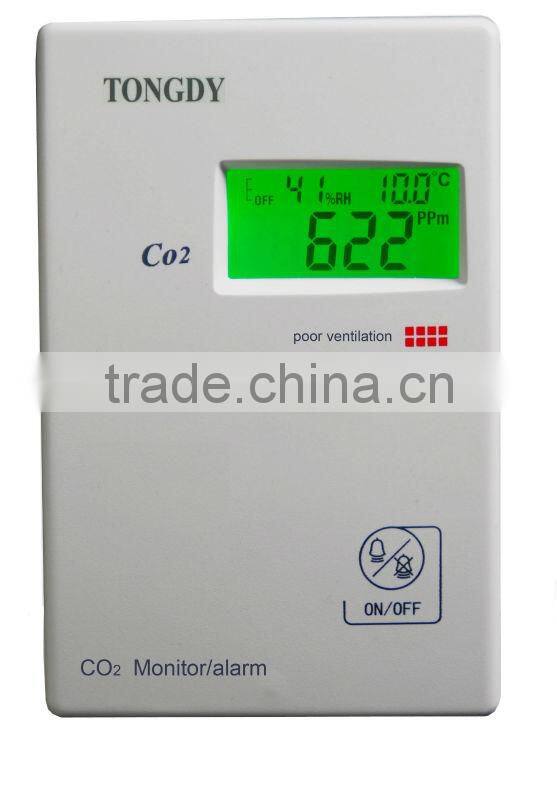

New G01-CO2 monitor/alarm is used to monitoring room CO2 level, as well as room temperature and humidity. It provides one on/off output to control a ventilator with four CO2 levels presetting. Especially it provides both buzzer alarm and three colors backlit switching alarm.
Hotel, exhibition hall, hospital, shop, restaurant, air port, train station, theater and other public places
House, villa, office, meeting room, classroom and other rooms
All ventilation systems
Specifications
Gas detected |
Carbon Dioxide (CO2) |
Sensing element |
Non-Dispersive Infrared Detector (NDIR) |
Accuracy@25°C(77°F) |
±60ppm + 3% of reading |
Stability |
<2% of FS over life of sensor (15 yr typical) |
Calibration interval |
ABC Logic Self Calibration Algorithm |
NDIR life |
15 years |
Response Time |
<2 minutes for 90% step change |
Signal update |
Every 2 seconds |
Warm up time |
<3 minutes (operation) |
CO2 measuring range |
0~5,000ppm |
CO2 Display resolution |
1ppm |
Power supply |
100~240VAC or 10~24VAC/VDC selectable in the order |
Consumption |
3.5 W max. ; 2.5 W avg. |
Temperature sensor |
NTC 5K |
Humidity sensor |
HS series capacitive sensor |
Temperature measuring range |
-20~60°C(-4~140°F) |
Humidity measuring range |
0~99%RH |
Relay output (optional) |
One relay output with rated switching current: 3A, resistance load |
Operation conditions |
0~50°C(32~122°F); 0~95%RH, non condensing |
Storage conditions |
-10~60°C(14~140°F) 5~95%RH non condensing |
Weight |
200g |
Dimensions |
130mm(H)×85mm(W)×36.5mm(D) |
Installation |
Desktop and wall mounting(65mm×65mm or 2”×4”wire box) |
Housing and IP class |
PC/ABS fireproof plastic material, protection class: IP30 |
Standard |
CE-Approval |
