Strong CO2 Controller for All Ventilation Systems

Application

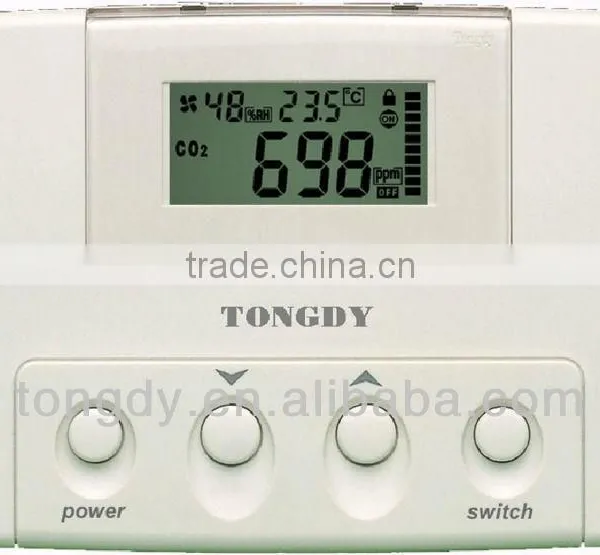

F2000IAQ-CO₂ monitor/controller is used to monitoring and control room CO₂ level, as well as room temperature and humidity, provide one or two or three 0~10VDC analog outputs and up to three dry contact outputs . F2000IAQ-CO₂ can be as a programmable logical controller to control CO₂ level, temperature or humidity, and also as a transmitter DDC/PLC controller or other automation systems. It provides a RS485 communication interface with an independent address to PC or other control systems.

 Hotel, exhibition hall, hospital, shop, restaurant, air port, train station, theater and other public places

 House, villa, office, meeting room, classroom and other places

 Greenhouse, mushroom, grown room and other agricultural applications

 All ventilation systems

¨   Specifications

 Models Guide

F2000IAQ-CO2- X₁ X₂ Y₁ Y₂- RH- Z

X₁ (the product type)

  3- CO₂ and temperature detection

      5- CO₂ and temperature detection with Modbus RS-485 communication

X₂ (display type)

0-LCD display

1-LCD display with 3 LED lights beside

2-Backlit LCD display

Y₁ (Analog output)

0-no analog output

1- 1 X 0 – 10 VDC output

2- 2 X 0 – 10 VDC outputs

3- 3 X 0 – 10 VDC outputs

 Y₂ (Dry contact output)

0- no dry contact output

1- 1 relay dry contact output

2- 2 relay dry contact outputs

3- 3 relay dry contact outputs

RH (Humidity detection and display)

         No RH option indicates no humidity detection and display

Z (power supply)

     C- 24VAC/VDC

     D- 100~240VAC (just for IAQ-CO2-300Y₂/500Y₂)

Example: F2000IAQ-CO₂-3011 indicates that it can detect CO₂ and temperature with one analog output and one relay dry contact output. F2000AQ-CO₂-5002-RH indicates that it can detect CO₂ and temperature and humidity with two relays dry contact outputs, and Modbus RS485 communication
