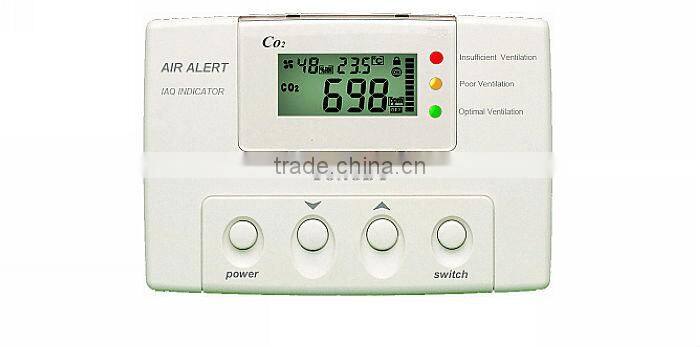

Help CenterFactory Price Carbon Dioxide Controller for Ventilation
Related Products
-
Strong CO2 Controller for All Ventilation SystemsNegotiableMOQ: 20 Pieces -
CO2 Meter for Indoor Air Quality MonitorNegotiableMOQ: 20 Pieces
-
Top CO2 PPM Meter and AlarmNegotiableMOQ: 10 Pieces
-
High Accuracy Carbon Dioxide Alarm for Indoor Air PollutionNegotiableMOQ: 10 Pieces
-
China Good Supplier of Carbon Dioxide Sensor for Indoor Air QualityNegotiableMOQ: 10 Pieces
Specifications
Real-time monitoring carbon dioxide (CO2) measurements during 0 to 20,000ppm rangeOptional real-time monitoring temp.,RH%
The monitor/controlleris special design to monitor and alarm CO2 level, also provides upto one 0~10VDC output and one on/off relay output to control a fan or a CO2generator.
An data logger is designed inside, which canrecord CO2 measurements more than 115 days and can be saved the datavia a USB disk.
Thememorial CO2 monitor/controller not only very easily to be used as aCO2 monitor and controller, but also as a recorder of themeasurements.
F2000IAQ-CO2-31XXUseries Application in schools, kindergartens, officebuildings, greenhouses and so on.
Carbon Dioxide Controller Features
Real-time monitoringcarbon dioxide (CO2) measurements during 0ppm to 20,000ppm range
Optional real-timemonitoring temperaturefrom -20°Cto 60°C and relative humidity from 0 to 100%RH
Non-dispersiveinfrared (NDIR) CO2 sensor withself calibration, 15 years lifetime
The 3-LED indicatorlights indicate three CO2 measured ranges
LED lights brightnessadjustable
Provide1X0~10VDC output for alternative linear
CO2measurement and PID control output
Provide1X On/Off dry contact output to control alternative a ventilator and a CO2generator
An internal data logger is used torecord CO2measurementsas well as optional temperature and RH% measurements.
With super large capabilitymemorizer, it can save data of up to 115 days
Provide the software to preset thesampling time, read and record CO2/temperature&RH levels on PC
Post the data from the internalmemorizer by any USB disk, and copy the data to a PC
