Simple CO2 Detector for agriculture
- 3000 Piece / Pieces per Month
- Beijing
- High quality Portable Industrial Automatic Humidistat
- Weatherproof plant grow bags for vegetable and flower
- High Quality Removable outdoor plant grow bag
- Weatherproof plant grow bags for vegetable and flower
- 7 Gallon Black Breathable Felt Fabric Grow Bags
- Fabric Grow Bag Smart Pots With Handles For Potato
Product Details
Model Number: | F2000TSM-CO2-SP-PP | Place of Origin: | Beijing, China | Brand Name: | Tongdy, Tongdy |
Product Description
Simple CO2 Detector for agriculture
CO2 Controller for agriculture Features
u Real-time detecting CO2 level with wall-mounting type
u NDIR infrared CO2 module inside with four CO2 detection range selectable.
u CO2 sensor has Self-Calibration Algorithm and up to
15 years lifetime
u Six indicator lights to indicate six CO2 ranges

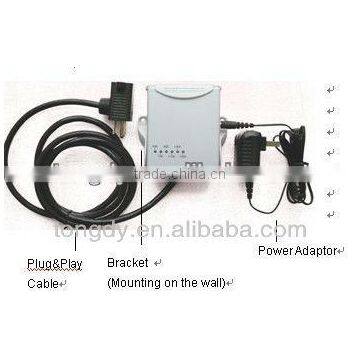

u Optional Plug&Play cable which connected with a CO2 generator(American standard)
u Easy to install with wall mount bracket
u 100~230 Volt power supply with a power adaptor
u An on/off output with 6A relay to control a
generator, four CO2 levels selectable for the relay switch by two jumpers
Specifications
Power supply | 12VDC Or 110VAC~230VAC with a power adapter |
Consumption | 1.0 W Max |
CO2 sensor | Non-Dispersive Infrared Detector (NDIR) ABC Logic Self Calibration(default: ineffective) |
CO2 measuring range | 0~2,000ppm |
Accuracy@25°C(77°F) | ±50ppm + 3% of reading |
Stability | <2% of FS over life of sensor |
Response time | <2 minutes for 90% step change |
Warm up time for turning-on | 48 hours (first time), 2 minutes (operation) |
6 green LED lights | 1st green light on as CO2 measurement≤700ppm 2nd green light on when 700ppm<CO2 measurement<900ppm 3rd green light on when 900ppm<CO2 measurement<1,100ppm 4th green light on when 1,100ppm<CO2 measurement<1,300ppm 5th green light on when 1,300ppm<CO2 measurement<1,500ppm 6th green light on as CO2 measurement>1,500ppm |
Dry contact output | Max. switch current: 6A (load resistance) Four CO2 levels selectable to control the relay by jumpers CO2≤700ppm the relay is on and CO2≥900ppm the relay is off CO2≤900ppm the relay is on and CO2≥1100ppm the relay is off CO2≤1100ppm the relay is on and CO2≥1300ppm the relay is off CO2≤1300ppm the relay is on and CO2≥1500ppm the relay is off (default) |
Operation conditions | 0~50°C(32~122°F); 0~95%RH, non condensing |
Storage conditions | 0~40°C(32~104°F); 0~90%RH, non condensing |
Dimensions/Net weight | 100mm×80mm×24mm (H X W X D) /110g |
CO2 Controller for agriculture Application
F2000TSM-CO2-L110-SP-PP Detector/Controller is used to monitoring and control CO2 level in greenhouse and other similar applications, providing one 6A relay output to control a generator on/off.
