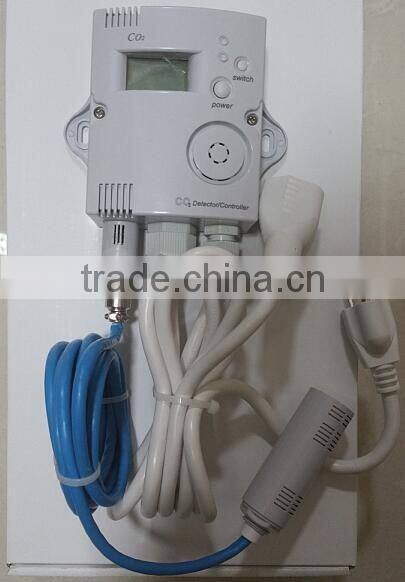

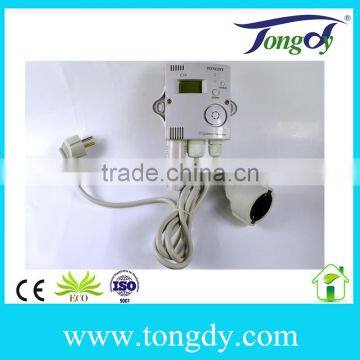

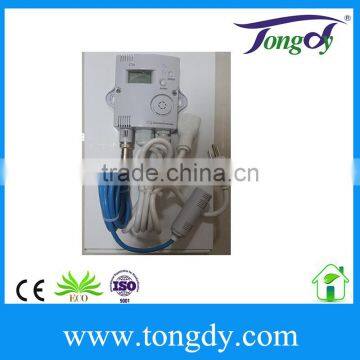

wholesale LCD display Plug and Play CO2 grow room controller
Greenhouse CO2 Controller Features
1. Special used to real-time detect CO2 level in air ducts.
2. NDIR infrared CO2 sensor inside with Self-Calibration and up to 15 years lifetime
3. High accuracy humidity and temperature de Greenhouse CO2 Controller tection&display optional
4. With LCD or without LCD selectable
5. Providing one dry contact output with presetting the setpoint
6. Modbus RS485 communication interface optional
7. Wireless of ZigBee protocol optional
8. Smart structure with easier wire connection through the external pipe
9. Provide four types: wall mounted, duct mounted, split and plug & play
10. For plug & play type, special design a photosensor inside to detect day/night and change the working mode of the CO2 generator
11. For duct probe type, special the 180° rotatable fastness position of the probe can be used in two directions of air flow.
12. Replaceable filter in the probe and extendable probe length
13. Design the convenient and easier buttons for operation
Specifications
CO2 Sensor | Non-Dispersive Infrared Detector (NDIR) | |
Measurement Range | 0~2,000ppm (default) 0~5,000ppm (preset) | |
Accuracy | ±40ppm + 3% of reading @22°C(72°F) | |
Stability | <2% of full scale over the life of the sensor | |
Calibration | Self-calibration system | |
Response Time | <5 minutes for 90% step change at low duct speed | |
Non-linearity | <1% of full scale @22°C(72°F) | |
Duct Air Velocity | 0~450m/min | |
Pressure Dependence | 0.135% of reading per mm Hg | |
Warm up time | 2 hours (first time) 2 minutes (operation) | |
Split CO2 sensor | 2 meter cable connection between the senor and the controller | |
Temperature & Humidity Detection&Display (optional) | Temperature | Relative Humidity |
Sensing element: | Band-gap-senor | Capacitive humidity sensor |
Measuring range | -20°C~60°C | 0 -100%RH |
Accuracy | ±0.5°C (20~40°C) | ±4.5%RH (25°C, 15%-85%RH) |
Display resolution | 0.1°C | 0.1%RH |
Stability | ±0.1°Cper year | ±1%RH per year |
General Data |
| |
Power supply | 24VAC/24VDC or 100VAC~240VAC | |
Consumption | 1.8 W max. ; 1.0 W avg. | |
LCD display | Display CO2 measurement or CO2 + temperature& humidity measurements | |
Dry contact output (optional) | 1xdry contact output for CO2 Max. 5A (100~240VAC/30VDC)rated switch contact | |
Plug& play type | Just for 100VAC~240VAC power supply with European or American power plug and power connector to the CO2 generator | |
Modbus RS485 Interface (optional) | 19200bps, 15KV antistatic protection. | |
Wireless module (optional) | ZigBee 2.4G short distance wireless communication | |
Operation conditions | -0°C~50°C(32~122°F); 0~99%RH, non condensing | |
Storage conditions | 10~50°C(-40~158°F)/ 20~60%RH | |
Net weight | 280g | |
IP class | IP30 | |
Standard Approval | CE-Approval | |
Typical Applications
1.In office and residence areas to detect CO2 level
2.Ventilation control
3.In BAS to detect the CO2 and the data transmittance
4.For greenhouse and plant bin
5.For CO2 laboratory
