Specifications

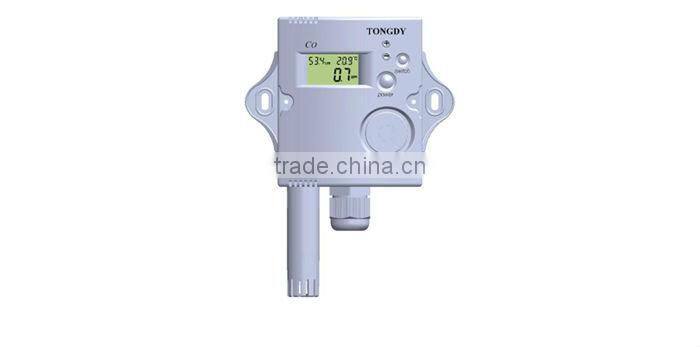

Super quality CO Controller for carpark

1.Design for real-time detection indoor carbon monoxide.

2.High accuracy humidity and temperature detection optional

3.LCD display carbon monoxide and optional temperature&RH measurement

4.Smart buttons for easy operation

5.Excellent electrochemical CO sensor with up to 5 years life time

6.Replaceable CO sensor

7.Provide 1X analog linear output (0~10VDC/4~20mA selectable) for the measurement

8.Providing up to two dry contact outputs with presetting the setpoint

9.Modbus RS485 communication interface optional

10.Provide two easy methods for calibration and setup alarm points by end users: infrared remote controller or a software via RS485

11.24VAC/VDC power supply

12.CE-Approval

8.24VAC/VDC power supply

Models Guide

TKG- CO- 1 X Y Z C- R–TH

1: wall mounted with the external sensor in an adown probe

X: analog output

         0: no analog output

         1: 1x0~10VDC linear output(default)

         2: 1X4~20mA linear output (default)

         3: 1X0~10VDC output and can be switch to 4~20mA (just for only one analog output)

Y:relay dry contact output

       0: no dry contact output

1: 1xdry contact output

2: 2xdry contact outputs

Z:Communication interface

       0: no communication

       1: Modbus RS485 interface

C:24VDC/VAC power supply

R: co range

  005: 0~500ppm (default)

001: 0~100ppm

   010: 0~1000ppm

-TH(option) temperature & RH detection and display

No –TH indicates without temperature & RH detection and display

-NL(option) No LCD display for the transmitter with the analog linear output or with the Modbus interface.

For example: TKG-CO-1101-001-TH indicates the CO detector with 1X0~10VDC linear output and Modbus interface. CO range:0~100ppm. It has temperature and humidity detection and display.
