Specifications
1.Indoor Carbon Monoxide Detector and Controller,2 Real time detect and Indicate carbon monoxide level with 6 indicator lights
Wholesale CO Transmitter for Car Parking
Real time detect and transmit ambiance carbon monoxide level
Up to more than five years lifetime
1x analog output or linear measurement
Modbus RS485 interface
The highest performance with the lowest price

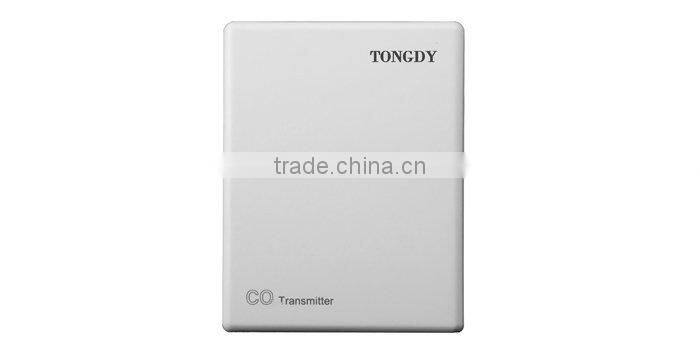

F2000TSM-CO-C101 is specifically designed to detect and transmit carbon monoxide level in the enclosed or semi-enclosed car parks and to regulate the environment according to the measurement of carbon monoxide.It is designed for easy installation and minimum maintenance during operation.
¨ Features
u Wall mounting, real time detect CO level with measuring range of 0~100ppm/ 0~200pm/ 0~500ppm.
u Electrochemical sensor which offer several advantages over traditional electrochemical sensors.
u With a long life, good long term stability, and high accuracy, the CO sensor is environmentally friendly without risk of electrolyte leakage.
u With simple calibration
u The special design of easy sensor’s replacement makes customers Wholesale CO Transmitter for Car Parking replace sensor easily by themselves
u Full time CO level detection, even the slightest leak can be detected
u One analog output of the measurement of carbon monoxide concentration with 0~10V/4~20mA selectable
u Special built-in Self-Zero Correction algorithm.
u Modbus RS-485 communication with 15KV antistatic protection, also can be calibrated carbon monoxide measurement via the interface
Application
u Residential and commercial CO detectors and transmitters
u Ventilation control for indoor parking garages
u Recreational vehicle CO detectors
u Kitchen rooms and restaurants
u Freezing machine rooms and other places where air quality is easy to worsen
Specifications
CO Measurement | |
Gas detected | Carbon monoxide |
Sensing element | Battery operable electrochemical sensor |
Gas sample mode | Diffusion |
Warm up time | 1hour (first time) |
Response Time | Within 60 seconds |
Signal Update | 1s |
CO Measuring Range | 0~100ppm(default) 0~200ppm/0~500ppm selectable |
Accuracy | <±1ppm (at 20±5°C/ 50±20%RH) |
Stability | ±5% (over 900 days) |
Electrical |
|
Power Supply | 24VAC/VDC |
Consumption | 1.5 W |
Wiring connections | 5 terminal blocks (max.) |
Outputs | |
Linear analog output | 1x0~10VDC/4~20Ma selectable in order |
D/A resolution | 16 bit |
D/A conversion accuracy | 0.1ppm |
Modbus RS485 Communication interface | Modbus RS485 interface 9600/14400/19200(default), 28800 bps, 38400 bps (programmable selection), 15KV antistatic protection |
General Performance | |
Operation temperature | 0~60°C(32~140°F) |
Operation humidity | 5~99%RH, non condensing |
Storage conditions | 0~50°C(32~122°F) |
Net Weight | 190g |
Dimensions | 100mm×80mm×28mm |
Installation standard | 65mm×65mm or 2”×4” junking box |
Housing and IP class | PC/ABS fireproof plastic material, protection class: IP30 |
Compliance | EMC Directive 89/336/EEC |
