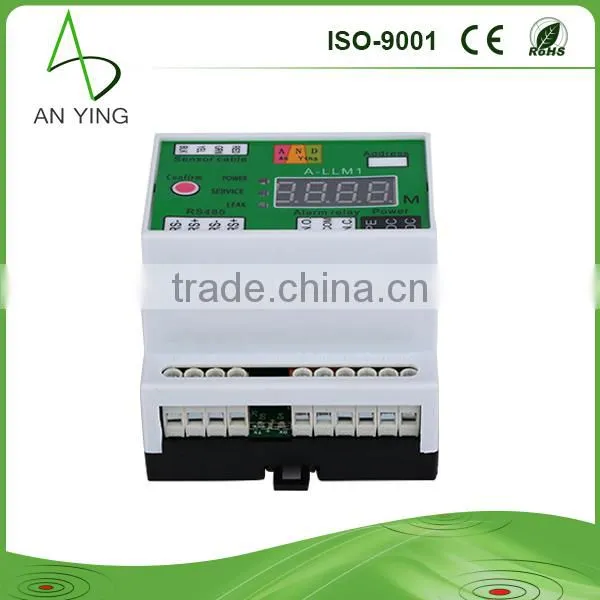

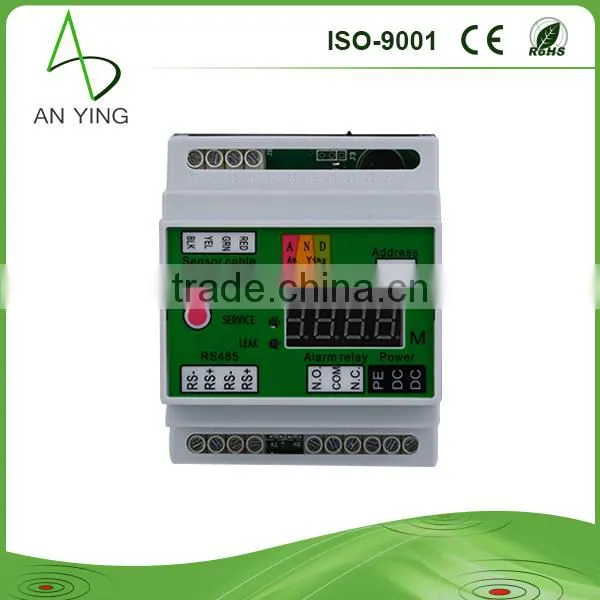

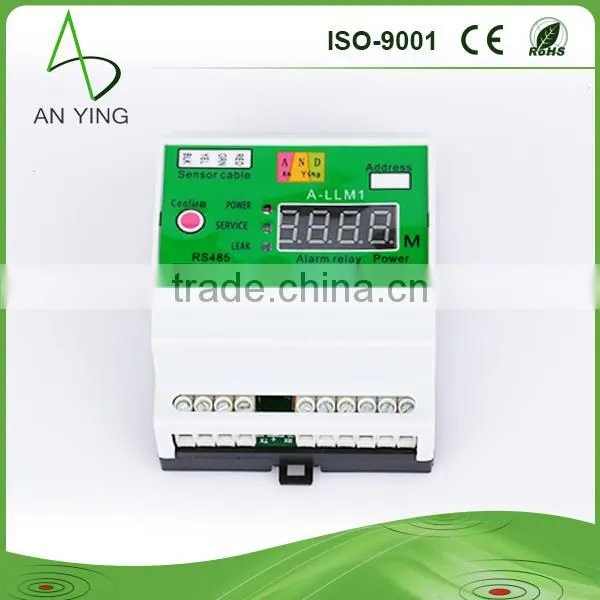

2017 the Newest Localizable Water Leak Detection
Water Leak Detector with Alarm
RS - 485 Output, Enable Software Management.
"Quality is Our Culture!"
Click the picture or the title to know more details.
| | |

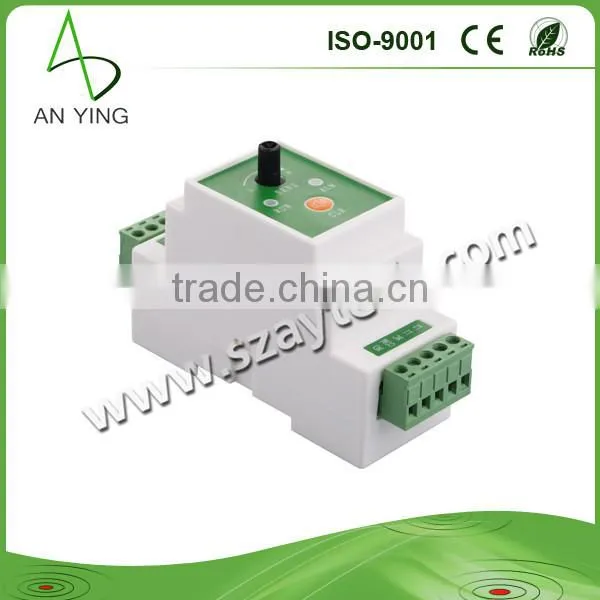

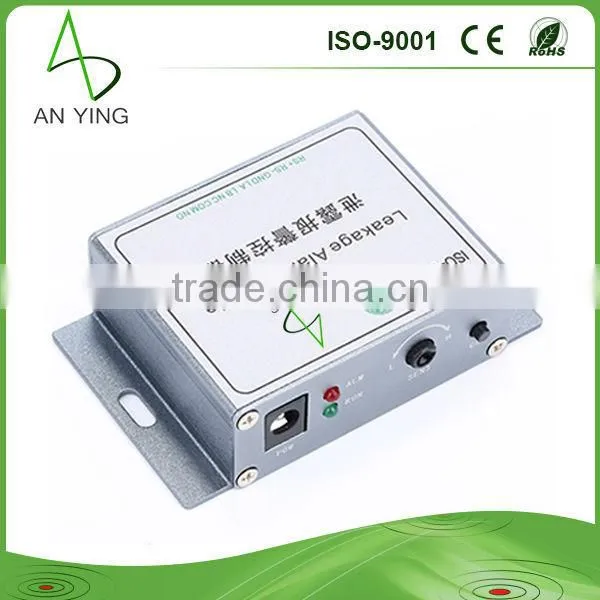

| Anying 4-zone Water Leak Detector A-LC6A Monitoring 4 different places Aluminium Oxide Made Cover Unique & Durable Design Relay & RS485 Output with built-in alarm Enable Software Management | Anying Water Leak Detector A-LC1A
Good price with great quality Sensitivity is controllable Relay & RS485 Output with built-in alarm Enable Software Management | Anying Water Leak Detector A-LC6A
Aluminium Oxide Made Cover Unique & Durable Design Sensitivity is controllable Relay & RS485 Output with built-in alarm Enable Software Management |
| | |

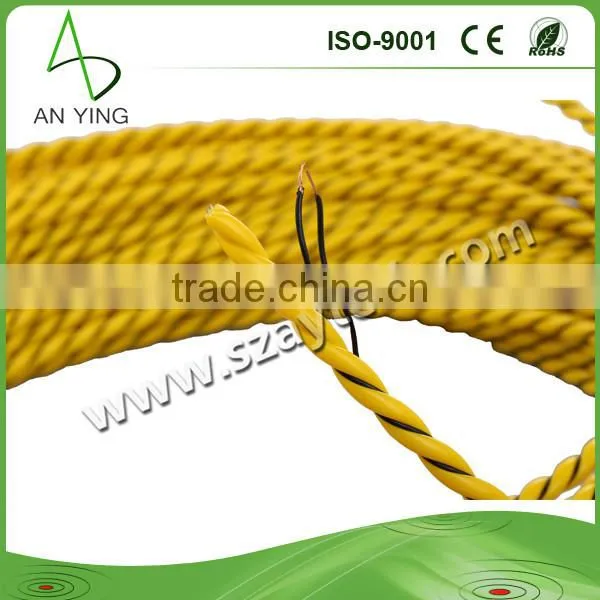

Anying 2-pin Water Leak Detection Cable A-LC1B Compatiable with none-location detector Great quality with long life Length & Color could be customized Better price than other manufacturer | Anying 4-pin Water Leak Detection Cable A-LL1000 Compatiable with location detector Great quality with long life Length & Color could be customized Better price than other manufacturer
| Anying 4-zone Anti-acid/alkali Water Leak Detector A-LC6A Compatiable with location detector Great anti-acid/alkali ability Length could be customized
|
- Power, leakage, the cable error and communication status are displayed on the LCD screen in real time.
- Leakage point and cable error will be displayed on the nixie tube.
- It could keep 32 leakage records.
- Practical and reliable twisted-pair serial RS - 485 communication, the unit can control sense cables up to 1200 meters, general industrial standard MODBUS protocol
- AC12V power supply
- A variety of communication baud rate could be chosen, address and communication baud rate is set by software, so that you don’t need switch.
- It’s able to set the relay NO-COM /NF-COM at the same time, it’s depended on your need.
- Great anti-static, anti-thunder & anti-surge ability, making the working system safer and reliable.
- Convenient installation of DIN guide rail.

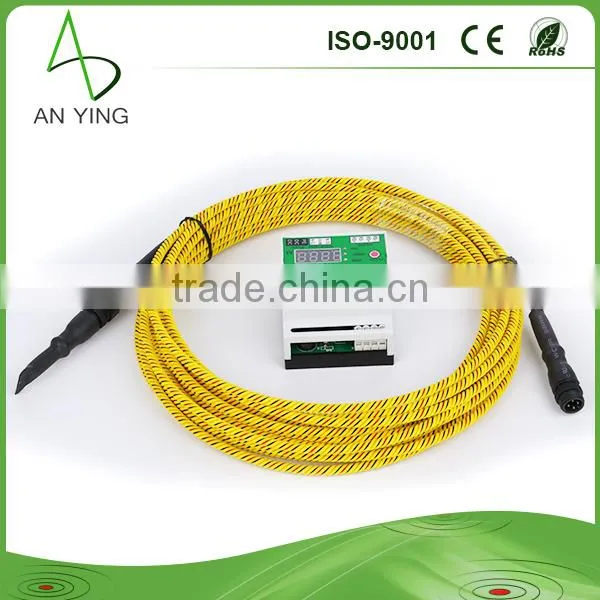

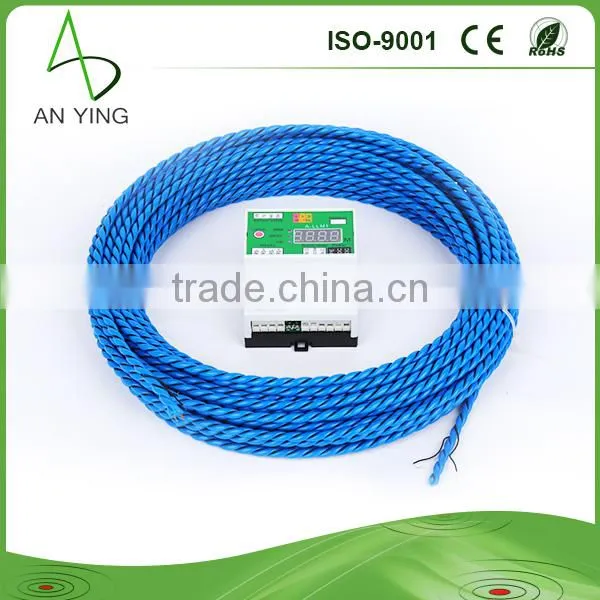

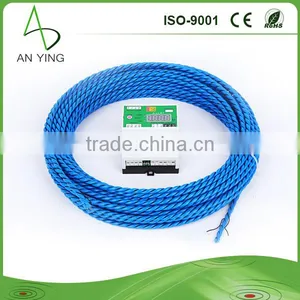

A complete set
↓↓↓↓↓↓↓↓
Technical Parameter
Basic characteristics | Sensor cable compatibility | A-LLW1000 sensing cable,TraceTek sensing cable, or the similar type |
Maximum length of the cable | 1500m | |
Admissible location error | Length of Sensor cable*0.5% ±0.5m | |
Environmental rating | Storage temperature | -40 oC - 60 oC(0 oF - 140oF) |
Working temperature | -20oC - 50 oC(32 oF - 122oF) | |
Working Humidity | 5% - 95%(no condensation) | |
Power supply | AC 12V,3W | |
Serial interface | Network configuration | Two-wire network of RS-485; Baud rates is optional: factory default 9600; Address is optional: 0~255, factory default 0 |
Communication protocol | MODBUS RTU | |
Relay contactor | Function | NO-COM /NF-COM, free to choose ; leakage alarm or sensor error alarm |
Rating | AC125V,0.5A,DC24V,1A | |

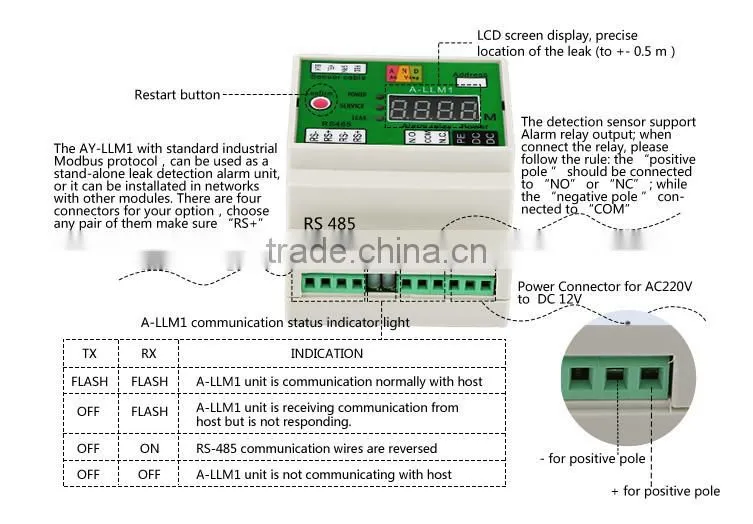

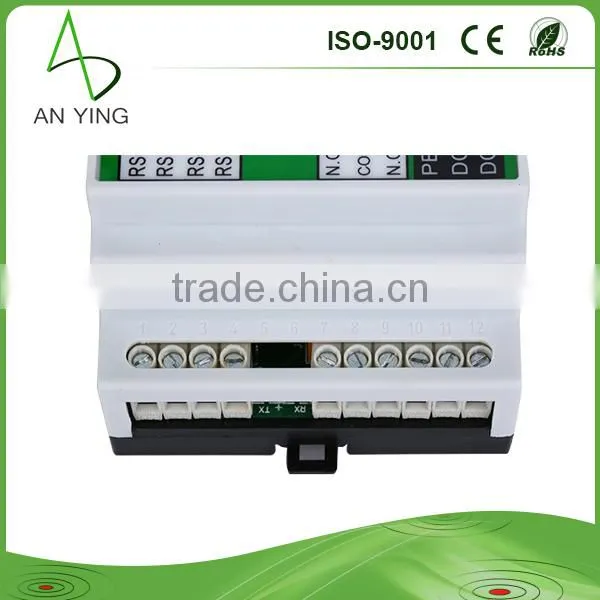

Introductions of Interface

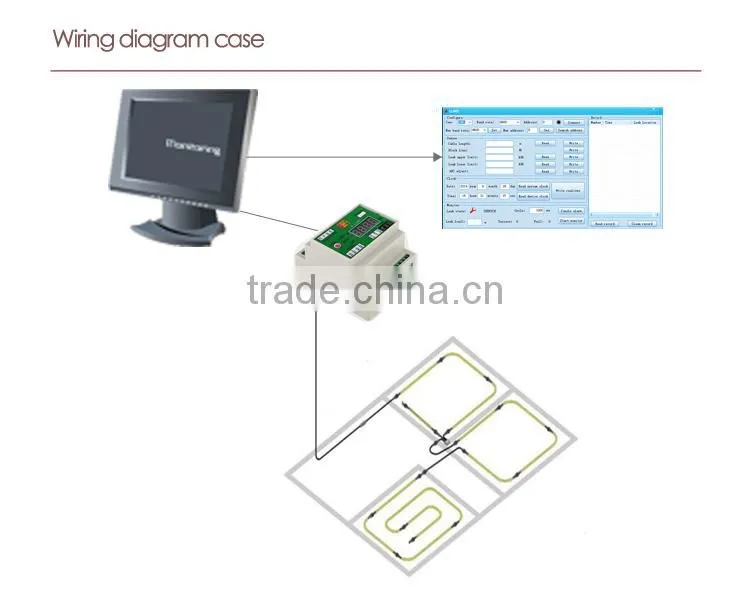

Software Control
The OEM service is offered if needed.
