2017 Hotsales Wifi Game Controller

2017 Hotsales wifi game controller

    Led wifi controller is the second controller with the traditional basis of IR, RF technology above, in response to market demand, customer needs and the birth of an integrated market, it is the latest wifi technology controller. It makes it easier to control the LED, more humane. We can use an Android or IOS phone system control software can be installed on the remote control LED, which is the voice of every customer!Use WiFi technology allows a wider range of our control, you can break the shackles of the narrow space in the building which can be remote 50 meters outdoors, then you can remote control 100 meters or more..

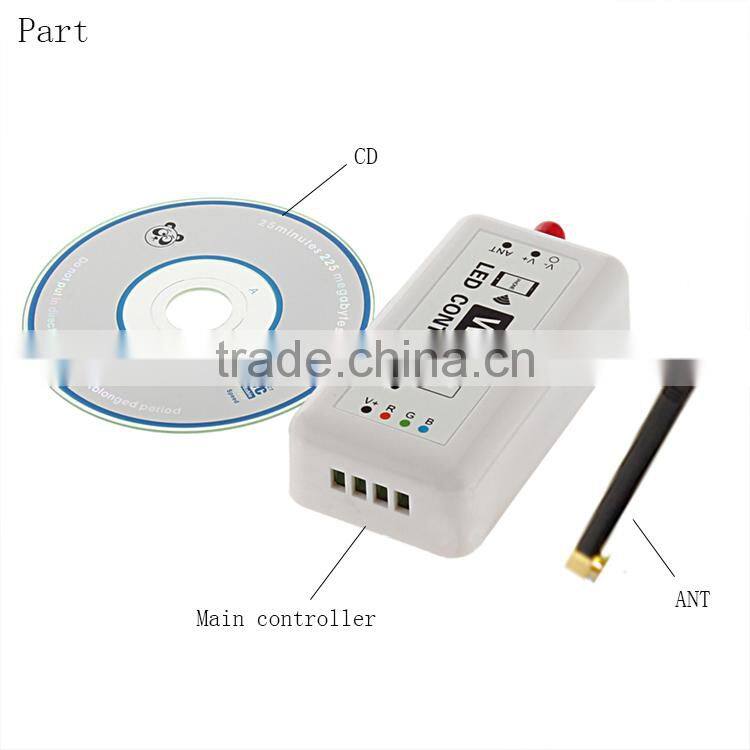

Photos show

Installation Instructions

1. Install ANT:Clockwise installing WiFi antennas, antenna counterclockwise to remove.
2. Power and LED equipment
3. Full-color version:
   1. V+:LED devices connected to the cathode;
   2. R :Full-color LED devices connected red negative;
   3. G :Full-color LED device connected green anode;
   4. B :Full-color LED devices connected blue negative;
4. Monochrome version:
   1. V+:LED devices connected to the cathode;
   2. CH1:Take the first road negative monochrome LED equipment;
   3. CH2:Take the second road monochrome LED equipment negative;
   4. CH3:The third color LED devices connected to the negative way;
5. Input interface:
   1. V+:Power input positive;
   2. V-:Power input negative;
   3. ANT:WiFi signal receiving antenna;
6. Inside the controller buttons:
   1. RESET:
   2. Short press function:
      • Monochrome Controller:In between strobe and gradient mode switch;
      • Full-color Controller:Among 27 kinds of mode switching;
7. Long press function:The controller back to the factory settings, the factory settings are as follows:
   • WIFI network name: LEDnetxxxxxxxxxxxx
   • Controller IP address: 192.168.10.1
   • The default setting is stand-alone mode:
   • Encryption: WPA2-PSK AES Password: 88888888
   • Note: If you need to reset. Please long press the power 20 seconds;

The application is downloadable from both iTunes store and Google Play. It is absolutely free. Find the card with software two dimension code in the package. The software support 3 languages Chinese/English /Germany, it will automatic recognize language according to OS.

Shenzhen An Ying Technology Co.,Ltd was established in 2009.Our company has strong science and technology strength.Otherwise ,there are many high quality researching talents who own the master's and bachelor's degree.We have established the LED department and machine room monitoring departmen under our common efforts.We specialize in researching ,producing and processing LED lighting, leak detector,machine room monitoring device.The head office is located in Shenzhen.There is complete and scientific quality management system in Shenzhen An Ying Technoloey Co.,Ltd . The honesty, the strength and the high quality of the products has been recommended by the industy and the customers in the world. Your presence and guidance ,or business negotiation are warmly welcome.

Failed many times,bulbs still can’t be connected to router.How to do?

Answers:

(A)Make sure you have input right password of wireless router.

(B)Make sure qty that how many device can be accepted to router is still available.Generally,one router can accept 15 pcs wireless device,some routers just accept 7 or 8 pcs wireless device.

(C)Try to use other wireless router.

In phone wifi setting interface,” LEDnet*********” cannot be found.How to do?

Answers:

(A)Make sure if bulbs were power on or off

(B)If you have set bulbs to network mode,”LEDnet*********” was concealed.That’s normal.

(C)Pls connect phone’s wifi to wireless router.Then run “LED Magic Color” app,devices can be scanned.

How to solve it if phone cann’t find bulbs’signal?

Answers:

(A)Make sure if bulbs were power on or off

(B)Make sure if phone have opened wifi or not.First time,pls open phone’s wifi setting interface and click “LEDnet*********”to connect it.

(C)If step a) and b) were correct,pls run app.Then you can find bulbs.
