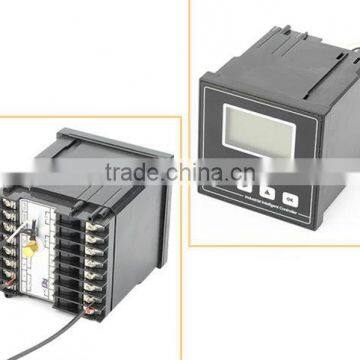

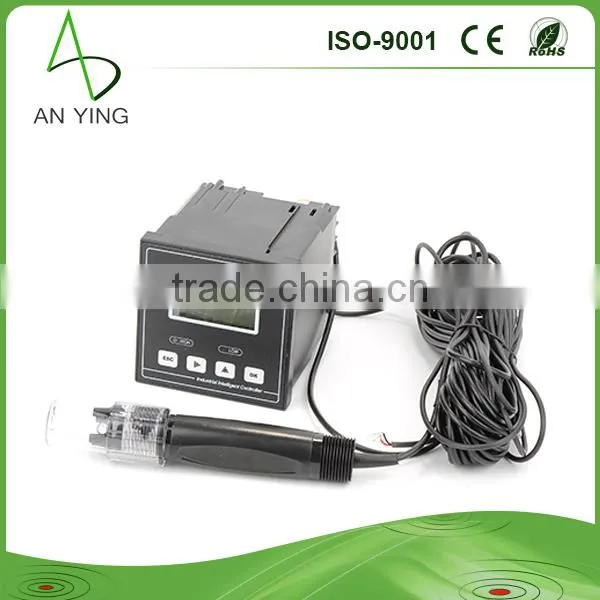

Newly Developed Real-Time Soil pH Sensor 4-20ma, Wide Range Measuring ph Sensor 4-20ma for Agriculture & Industry
US$ 465 - 486
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Anying
Model Number:
A-PH01
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Promotion Portable Greenhouse Using Digital Soil Moisture Meter, Soil ph Moisture Meter, Soil Moisture SensorNegotiableMOQ: 1 Set -
New-designed Small and Exquisite Soil Electrical Conductivity Sensor for Testing Soil SalinityUS$ 265 - 275MOQ: 1 Set
-
Promotion for Double 12th Super Sensitive Remote Control Greenhouse and Urban Lighting Illuminance SensorUS$ 130 - 150MOQ: 1 Piece
-
Promotion for Double12th Infrared High Precision Digital Inspecting Agricultural CO2 ControllerNegotiableMOQ: 1 Piece
-
China Supplier High Sensitivity Soil Moisture Sensor, Soil Humidity Testing EquipmentUS$ 115 - 130MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Anying
Model Number
A-PH01
Newly Developed Real-Time Soil pH Sensor 4-20ma
Wide Range Measuring ph sensor 4-20ma for Agriculture & Industry
Related Products
"Quality is Our Culture!"
Click the picture or the title to know more details.
|
|
|
|
Anying Temperature & Humidity Sensor TH6 Unique design, easy to install Relay & RS485 Output with external sensor Enable Software Management |
Anying Solid Moisture & Temperature Sensor High-sensitivity
Enable Software Management
Optional 4-20 mA, 0-2V, RS485 output
Be compatible to all kinds of solid
Endure long time electrolysis
|
Anying CO2 Sensor SM3370M
High sensitive infrared sensor probe
Self-diagnosis function
Convenient installation and maintenance
Optional: 4~20mA , 0~5V , 0~10V or RS485 output
|
|
|
|
|
Anying Lux Meter A-LUX1
Waterproof, easy installations
Stable remote control
3 optional output: 0-5V/4-20mA/RS485/RS232
3 optional power supply: 220V AC/24V AC/24V DC
|
Anying Conductivity Sensor A-EC01 High sensitivity and stability
3 Options of Output signals:
Voltage output:0~5V or 0~2V
Current output:4-20mA
Digital output:RS485
|
Anying Humidity & Temperature Controller TH1 Clear LCD screen to show real-time data RS485 Output with built-in sensor Enable Software Management
|
Product Feature
Industrial pH meter is upgraded intelligent product of industrial acidity meter. It can achieve continuous measurement and control of the pH of waste water.
This instrument could be applied to the fields of sewage treatment, chemistry, printing and dyeing, paper making, pharmacy and environmental protection, etc.
According to the environment and characteristics of water industry, combining international electricity supply standard, considering electrical design code of special environment, there are 3 power supply for you to choose: 220V AC or safe low voltage of 24V AC and 24V DC.
Signal output could also be optional: 0-5V/4-20mA/RS485.
Main features of this product
- Standard & friendly English interface and you could switch to Chinese if you need.
- Realize pH/ORP measurement, upper and lower limit control, current output, digital communication. (Optional)
- Automatic temperature compensation or manual temperature compensation are all available.
- pH high limit alarm and low limit alarm four-way relay. Hysteresis amount adjustable.
- Meter mode isolates transmit port. Maximum circuit resistance is over 300Ω
- Alarm sound will activate the on and off function. Set on or off through the interface option setting
- Energy-saving mode is available, the for LCD backlight would be automatically off at fixed time.
- High performance CPU, good electromagnetic compatibility
- Password management function, avoid wrong operations of non professional personnel
Details Show
Technical Parameter
| Measuring range | pH(0 – 14 pH) ;ORP( -1900 - +1900 mV) |
| Accuracy | + 0.02 pH; +1 mV |
| Resolution | 0.01pH; 1mV |
| Stability | ≤ 0.02 pH/24 hours; ≤ 3 mV/24 hours |
| pH standard solution | 4.01/6.86/9.18 |
| Display mode | 128 * 64 lattice LCD |
| Temperature compensation | 0–100 ℃ manual/automatic(NTC10K) |
| Signal output | 4-20mA isolation protection output, maximum loop resistance 300Ω |
| Alarm output | each team of high and low limit alarm contact (3A/250 V AC), contact relay regularly on |
| Power supply | AC 220V±10% 50Hz |
| Power consumption | ≤3W |
| Environment conditions | (1) temperature 0~ 60 ℃ (2) humidity≤85%RH |
| Overall size | 96×96×110mm(height×width×depth) |
| Hole size | 92×92mm(height×width) |
