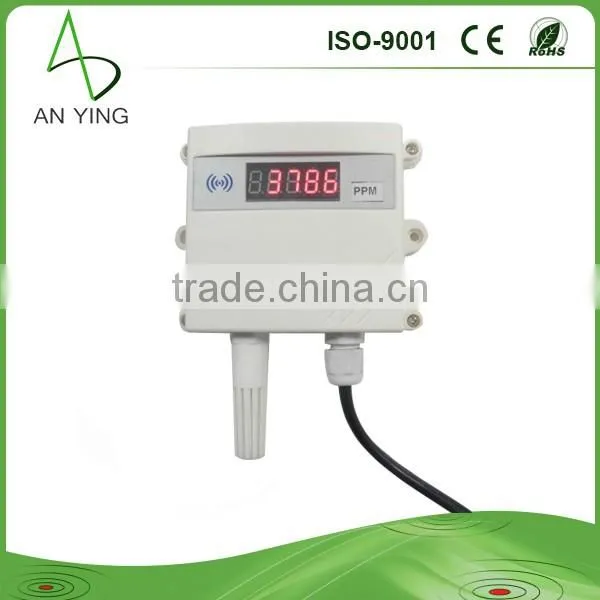

Greenhouse CO2 Controller
Smart Farming CO2 Controller Hydroponics/Copnograph
|
|
|
|
Anying Temperature & Humidity Sensor TH6 Unique design, easy to install Relay & RS485 Output with external sensor Enable Software Management |
Anying Solid Moisture & Temperature Sensor High-sensitivity
Enable Software Management
Optional 4-20 mA, 0-2V, RS485 output
Be compatible to all kinds of solid
Endure long time electrolysis
|
Anying LUX Sensor A-LUX1
High sensitive infrared sensor probe
Self-diagnosis function
Convenient installation and maintenance
Optional: 4~20mA , 0~2V , or RS485 output
|
|
|
|
|
Anying Humidity & Temperature Controller TH1 Clear LCD screen to show real-time data RS485 Output with built-in sensor Enable Software Management |
Anying Conductivity Sensor A-EC01 High sensitivity and stability
3 Options of Output signals:
Voltage output:0~5V or 0~2V
Current output:4-20mA
Digital output:RS485
|
Anying PH Sensor A-PH01 Standard & friendly English interface
Equipted with relays
Together with temperature sensor
3 optional output: 0-5V/4-20mA/RS485
3 optional power supply: 220V AC/24V AC/24V DC
|
Technical Parameter
Detection principle |
Dual channel non dispersive infrared principle |
Range |
0~2000ppm ,0 ~ 5000ppm (Maximum 0-150,000 PPM) |
Precision |
±2% ppm (0~3000ppm) @10 ~ 50℃ |
Response time |
0 ~ 80% < 30sec |
Data update time |
Every 2.0 Seconds |
Preheating time |
@25℃ < 90sec |
Operating environment temperature |
0 ~ 50℃, 0 ~ 90%RH Non Condensing |
Save temperature |
-40℃ ~ 70℃ |
Output |
Analog quantity :4~20mA , 0~5V , 0~10V |
Digital quantity :RS485 | |
Power supply |
DC 12-24V |
Power waste |
Peak 150mA, Low 25mA (@5VDC) |
|
Interface |
Red: (+) |
Blue:(-) | |
Yellow: The signal line | |
Size |
(W)112mm x (H)45mm x (D)90mm |
Introductions of Structure & Interface
The OEM service is offered if needed.
