An Ying high sensitivity soil humidity testing equipment, wisdom agriculture usage soil moisture sensor current output.
Function Instruction:
A-SM1 is a high sensitivity and precision sensor to detect the real time moisture of soil directly and stably through dielectric constant. A-SM1 adopts International Standard measuring method to measure the water content of soil. It can be used in Soil Moisture Measurement, Scientific Experiment, Water-Saving Irrigation, Greenhouse, Flower & Vegetable, Grass & Farm, Soil Quick Testing, Plant, Sewage Treatment, Grain Storge, Precision Agriculture etc, and also in Water Resources, Weather, the water content measuring of particulate matter and so on.

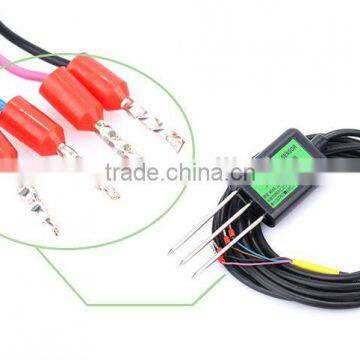

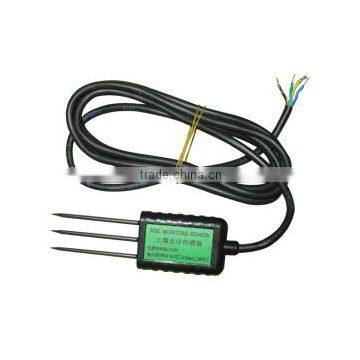

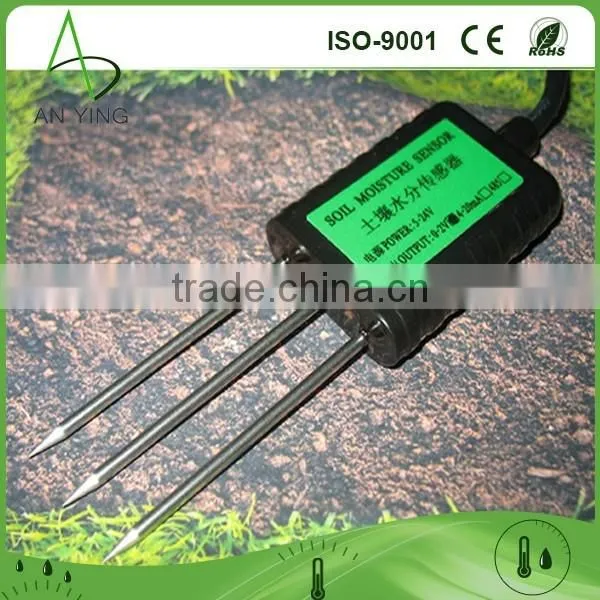

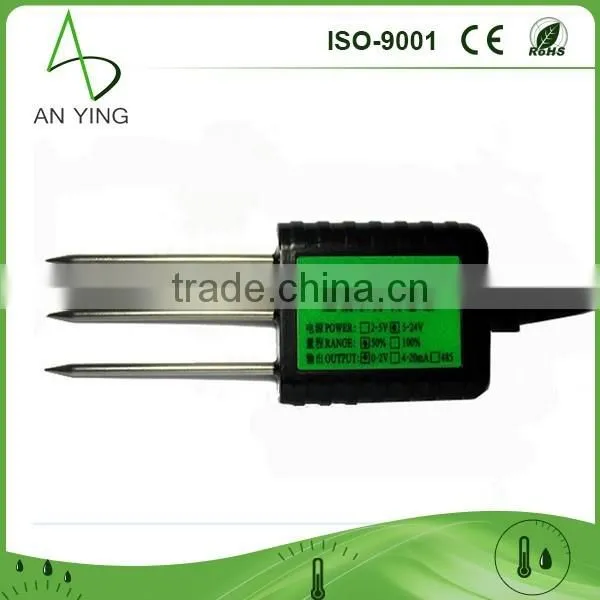

Photo showing
Competitive Advantage:
- High sensitivity and accuracy, good interchangeability.
- Reliably sealing, corrosion resisting, long service life in the soil.
- With flame-retardant epoxy resins to make sure strong waterproof and anti-impact of external forces.
- Made of high quality steel, the sensor can endure long time electrolysis and the corrosion of acid & base in the soil.
- Protected from inverse wire connection.
Technical parameter
| MODEL | A-SM1 | |
| Detected area | In the 7cm high, 7cm diameter cylinder with the central pin as the center | |
| Response time | Less than 1s | |
| Soil moisture accuracy | 0-53%:±3%; 53-100%:±5% | |
| Width | 45mm | |
| Thickness | 15mm | |
| Gap between the sensor pins | 13mm | |
| Logo | Support | |
| OEM | Support | |
| MOQ | Support | |
Connection
- Red(V+): Power(V+)
- Black(G): Power (GND)
- Blue(O1): Signal output (temperature)
- Brown(O2): signal output (water content)
- Yellow: No connection
- White: No connection
- Green: No connection
RS485 Mod bus communication protocol
- Red(V+): Power (V+)
- Black(G): Power (G)
- Blue(O1): No connection
- Brown(O2): No connection
- Yellow (T+): RS485+/A/T+
- White(T-): RS485-/B/T-
- Green(SET): when connect to “ V+”, it will start in “ setting ”; No connecting or connected to “ G ”, it’ll start in “ Operating ”
The configuration parameter of the module like Modus address, baud rate, check digit, communication protocol etc is saved by EEPROM (power storage device )inner. Due to absence from the specific configuration of the module, it can transfer the communication to the modules sometimes. To solve this problem, there’s special mode of the module called “ setting mode”. When it starts with “ Setting mode”, it’ll communicates as following parameter:
- Modbus address is 0.
- Communication configuration is 9600,N,8,1(9600bps, no check digit,8 data bits, 1 stop bit).
- Communication Modbus-RTU The configuration parameter of EEPROM will not change because “setting mode” or “ operation mode” starts.
Shenzhen An Ying Technology Co., Ltd was established in 2009 and the head office is located in Shenzhen, Guangdong.
Our company has strong science and technology strength and there are many ingenious researching talents who own the
master's and bachelor's degree. We have built two main product departments----environment monitoring system and
agriclutural Internet of Things(IoT). Environment monitoring products include water leak detectors, temperature and
humidity controllers. Agricultural IoT products include soil moisture sensor, soil salinity sensor, soil PH meter, illumination
sensor and CO2 sensor. Besides, we now have a new department---smart home. The products include smart air conditioner controller, smart socket, smart wifi/bluetooth LED bulbs and home security alarm system.
An Ying has been member enterprise of Alibaba for 7 years and own fixed markets and customer base at home and abroad.
Our strength and high quality products win a good reputation for us and has been recommended by the industries and
customers at home and abroad. Your presence and guidance, or business negotiation are warmly welcome.
Quality is our culture!
