Top Carbon Dioxide Controller CO2 Controller for Greenhouse Hydroponic Garden

Top Carbon Dioxide Controller CO2 Controller for Greenhouse Hydroponic Garden thumbnail-1
Top Carbon Dioxide Controller CO2 Controller for Greenhouse Hydroponic Garden thumbnail-2
Top Carbon Dioxide Controller CO2 Controller for Greenhouse Hydroponic Garden photo-1
Top Carbon Dioxide Controller CO2 Controller for Greenhouse Hydroponic Garden photo-2
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
INDOOR
Model Number:
YDCO2CC
Contact Supplier Request Quote Chat Now
Wenzhou Indoor Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name INDOOR
Model Number YDCO2CC

CO2 Controller for greenhouse

Plug and Play Carbon Dioxide Controller or Greenhouse

Features

1.Design for control the CO2 concentration in greenhouses or mushrooms
2.NDIR infrared CO2 sensor inside with Self-Calibration and up to more than 10 years lifetime.
3.Plug & play type, very easy to connect the power and a fan or CO2 generator.
4.100VAC~240VAC range power supply with European or American power plug and power connector.
5.A max. 8A relay dry contact output
6. Inside a photosensitive sensor for auto changeover day/night work mode
7. Replaceable filter in the probe and extendable probe length.
8.Design the convenient and easier buttons for operation.
9.Optional split external sensor with 2 meter cables
10.CE-Approval.



Top Carbon Dioxide Controller CO2 Controller for greenhouse Hydroponic GardenTop Carbon Dioxide Controller CO2 Controller for greenhouse Hydroponic Garden

Specifications

CO2 Sensor

Non-Dispersive Infrared Detector (NDIR)

Measurement Range

0~2,000ppm (default)

0~5,000ppm (preset)

Accuracy

±40ppm + 3% of reading @22°C(72°F)

Stability

<2% of full scale over the life of the sensor

Calibration

Self-calibration system

Response Time

<5 minutes for 90% step change at low duct speed

Non-linearity

<1% of full scale @22°C(72°F)

Duct Air Velocity

0~450m/min

Pressure Dependence

0.135% of reading per mm Hg

Warm up time

2 hours (first time)

2 minutes (operation)

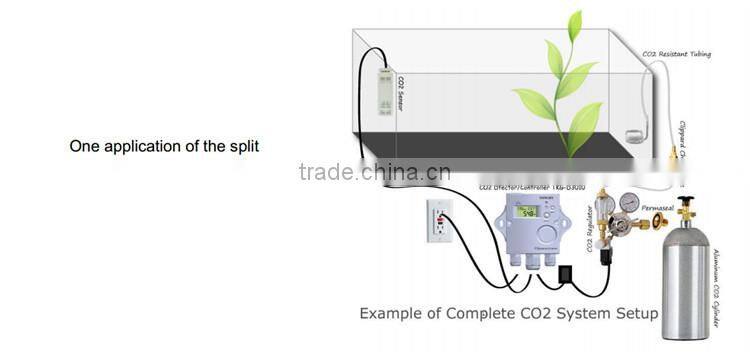

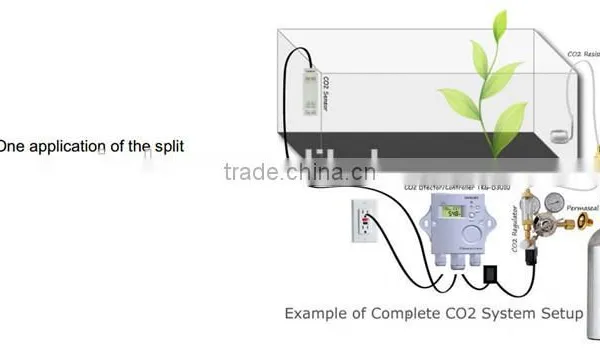

Split CO2 sensor

2 meter cable connection between the senor and the controller

Temperature & Humidity Detection&Display (optional)

Temperature

Relative Humidity

Sensing element:

Band-gap-senor

Capacitive humidity sensor

Measuring range

-20°C~60°C

0 -100%RH

Accuracy

±0.5°C (20~40°C)

±4.5%RH (25°C, 15%-85%RH)

Display resolution

0.1°C

0.1%RH

Stability

±0.1°Cper year

±1%RH per year

General Data



Power supply

24VAC/24VDC or 100VAC~240VAC

Consumption

1.8 W max. ; 1.0 W avg.

LCD display

Display CO2 measurement

or CO2 + temperature& humidity measurements

Dry contact output (optional)

1xdry contact output for CO2

Max. 5A (100~240VAC/30VDC)rated switch contact

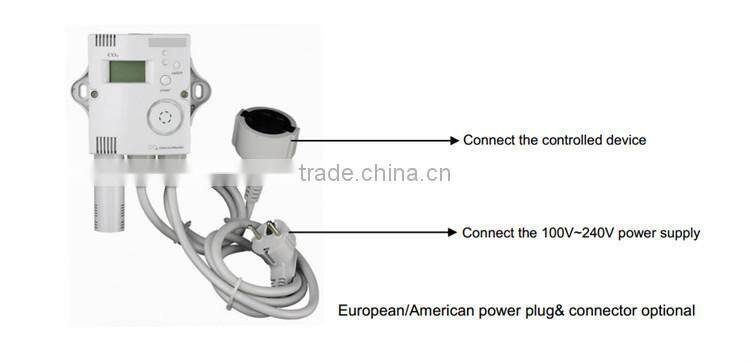

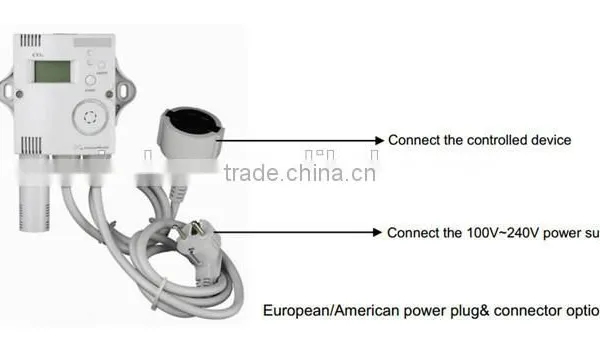

Plug& play type

Just for 100VAC~240VAC power supply with European or Americanpower plug and power connector to the CO2 generator

Modbus RS485 Interface (optional)

19200bps, 15KV antistatic protection.

Wireless module (optional)

ZigBee 2.4G short distance wireless communication

Operation conditions

-0°C~50°C(32~122°F); 0~99%RH, non condensing

Storage conditions

10~50°C(-40~158°F)/ 20~60%RH

Net weight

280g

IP class

IP30

Standard Approval

CE-Approval
