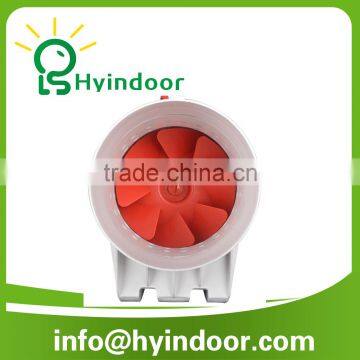

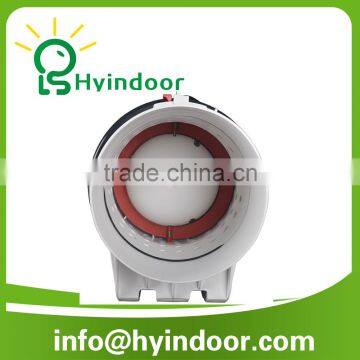

Silent 6" Inline Mixed Flow Duct Fan

Silent 6" Inline Mixed Flow Duct Fan thumbnail-1
Silent 6" Inline Mixed Flow Duct Fan thumbnail-2
Silent 6" Inline Mixed Flow Duct Fan thumbnail-3
Silent 6" Inline Mixed Flow Duct Fan photo-1
Silent 6" Inline Mixed Flow Duct Fan photo-2
Silent 6" Inline Mixed Flow Duct Fan photo-3
US$ 1 - 200 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Plastic
Mounting:
Roof Fan
Contact Supplier Request Quote Chat Now
Wenzhou Indoor Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Blade Material Plastic
Mounting Roof Fan
Place of Origin Zhejiang, China
Brand Name INDOOR
Model Number ID150
Power 43-50W
Voltage 115V/230V
Air Volume 410-530(M3/H)
Speed 1850-2550(RPM)
Certification CCC, ROHS
After-sales Service Provided No overseas service provided

Silent 6" Inline Mixed Flow Duct FanSilent 6" Inline Mixed Flow Duct FanSilent 6" Inline Mixed Flow Duct FanSilent 6" Inline Mixed Flow Duct Fan



Features:

  • Combine the acoustic and duct working principle, special design for excellent sound attenuation.
  • The shell is made of polypropylene plastic, with high anti-acid ability.
  • The impeller is made of ABS, designed by hydromechanics to reach the optimal air and pressure.
  • Two-speed motor, Japanese brand NMB ball bearing, long working life to 50,000 hours.
  • IP44 protection class, waterproof and dustproof more effective.
  • Operating temperature range: -20°C ~ 60°C



Specification:



Model

Double

speed

Voltage/

Frequency



Current



PowerSpeedWeightAirflowAir pressureNoise
(Amps)(W)(RPM)(Kg)(m³/h)(Pa)(dB)
HDD-150PHigh230V/50Hz0.255025004.553030031
Low0.2043185041024026
High115V/60Hz0.5562250053030031
Low0.4751185041024026



Silent 6" Inline Mixed Flow Duct FanSilent 6" Inline Mixed Flow Duct Fan
