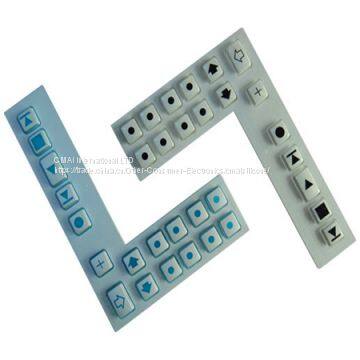

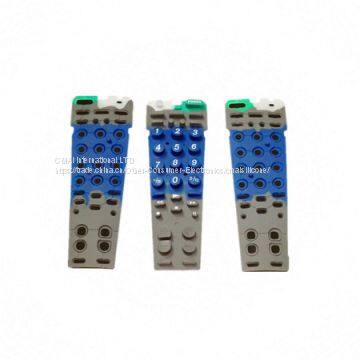

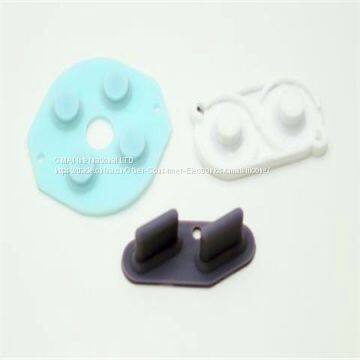

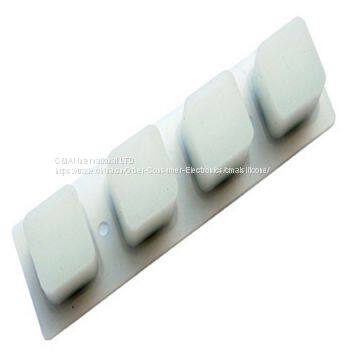

Silicone Rubsmall Remote Control Conductive Silicone Rubber Keypadsber Keypad

Silicone keypad

1. Customized all kinds of color and size according to personal demands.

2. Good tactile feeling.

3. Lifespan for over 1,000,000 pushes.

4. High quality rubber keypad meeting ISO/TS16949.

5. Anti-bacteria material, survives under harsh working environment.

· General specification:

o Contact rating: 20mA, 24VDC

o Contact resistance: 200 Ohms maximum

o Lifetime: 1,000,000 cycles per key

o Operating temperatures: -20 to 60°C

o Storage temperatures: -40 to 65°C

o Actuating force: 100, ±30 grams

o Stroke: 1.4, ±0.3mm

o Made by using compression molding & silk screening

o It is a simple silicone rubber keypad with opaque/transparent material and positive image printing

o Ink used for the graphics is a silicone based ink so that it is bonded to the base material after post curing

o A coating is applied to extend the life of the graphics if requested

· Advantages:

o Silicone button is not easy to be aged and hardened because of the stability of physical and chemical properties

o It is a non-toxic, tasteless and extremely soft materials, and harmless to our body, it can be repeated bending but will be difficult to break

o Silicone products have good resistance to extreme temperature (from -40-230°C)

o Silicone materials have got the FDA certificate so that products can be contacted with food directly

o Silicone button is with the oil-, corrosion-resistant and radiation-resistant, and also they are easy to clean

o Silicone button will not make impact noise, also prevent other household utensils with scratches

Customized high quality liquid silicone keypads

o Item Name Silicone rubber keypads

o Usage Silicone keypad mold for TV set, DVD, Air condition, phone, POS machine,Printer

o Material NBR, HNBR, NBQ, FKM, CR, PDFE, EPDM, SILICONE. ect.

o Color Any colors available

o Logo Customized logos and models

o Tempetature -40 °C to +220°C

o Hardness 30-80 shore A

o Feature 1.Ozone and Chemical resistance

o 2. Anti-aging, good flexibility, good elasticity

o 3. Excellent oil resistance

o Shape All shape is available / Various shape / Customized shape

o Eco-friendly Yes

o MOQ 100pcs or negotiable

o Other service OEM, ODM orders warmly welcome, welcome to your own design
