Shortwave Quartz Tube Infrared Emitter for Timber Surface Curing

Shortwave Quartz Tube Infrared Emitter for Timber Surface Curing photo-1
US$ 1 - 200 MOQ: 300 Pieces
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Infrared Heater, Infrared heating lamp
Power Source:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Infrared Heater, Infrared heating lamp
Power Source Electric
Place of Origin Anhui, China
Brand Name Quickly
Model Number KKL-S-005
Dimension(L*W*H) 600*(10*10,18*18, 23*11,33*15)mm
Weight 0.5-6KG
Voltage 45-600V, 110V, 220V, 240V, 380V, customized.
Power(W) 0.3-6KW
Certification CE, MA, AL, CNAL, CE approved by EMC
Warranty 5,000 hours, 5,000 hours
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Shortwave quartz tube infrared emitter for Timber surface curing

Product Catalog links as follow:

  • Shortwave heat lamp
  • Medium Wave heat lamp
  • Carbon fiber far infrared heat lamp
  • Fast Medium wave heat lamp

    Shortwave quartz tube infrared emitter for Timber surface curing  Shortwave quartz tube infrared emitter for Timber surface curing  Shortwave quartz tube infrared emitter for Timber surface curing

Parametric of Shortwave quartz tube infrared emitter for Timber surface curing

Voltage

120V, 220V,  240 V,380V,480V

Wattage

Range from 300W to 10000W

Diameter

10mm,12mm,15mm,20mm,23*11mm,33*15mm

Electricity saving rate

Can save 20-35% more energy

Main Positive Wavelength

1.0-1.4um

Response Time

1s

Max wire temperature

1800 ° - 2400 °C



Using time

More than 5000h

High power density

up to 200w/cm

Heating method

Non-contacting heating, radiation heating way

Core Competence

Clean, safe, high efficient, energy-saving

High heat reflector choice

Gold reflector and ceramic white reflector

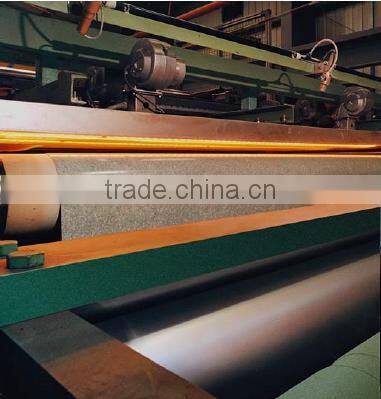

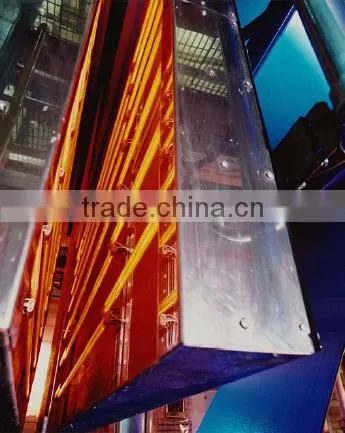

Application of Shortwave quartz tube infrared emitter for Timber surface curing

Automotive

Primer coat,Color coat,Clear coat,Powder coat,

Seat de-wrinkling,Head liner forming

Plastics

Welding,Forming,Softening,Curing,Drying

Printing

Ink drying,Silk Screening,Bindings,Glue drying

Food

Baking,cooking,stove,Browning,Dehydrating,Pasteurizing

Electronics

Re-flow soldering,Water dry-off,Silk screening

Textiles

Web Drying,Finishing,Pre-shrinking

Glass- Ceramics

Heating safety glass,Drying mirrors,Drying frit

Farm

Space heating,Incubating,Brooders



                 Shortwave quartz tube infrared emitter for Timber surface curing  Shortwave quartz tube infrared emitter for Timber surface curing





FAQ

1.What kind of customized service will you get?

All kinds of infrared lamps can be customized as you require, including the size,voltage and wattage,reflector and etc.



 2.How long is the warranty time?

Short wave infrared lamp:5000 hours;

Medium wave infrared lamp:20000 hours;

Carbon fiber lamp: 10000 hours;

Fast medium wave lamp: 10000 hours.

Remark: man-made and improper operation excluded



3.How about the after Sales?

Every infrared lamp will tested by our QC department before shipping.

If the infrared heat lamps have damage in transit or the life time less than we guaranteed(man-made excluded}.We will exchange the infrared heat lamp for the new one.



4.Which terms of payment do you prefer?

T/T,  Paypal,  Western Union, L/C

We also have trade assurance on alibaba. Let you feel more comfortable with money safety.



5.How about the delivery time?

Commonly 10-15 working day after receiving the deposit for the infrared heat lamps.



6.What's the package like?

Outside packed in wood and inside packed in soft EPE soft foam mat for maximum shock absorption, we can do package according to your design.
