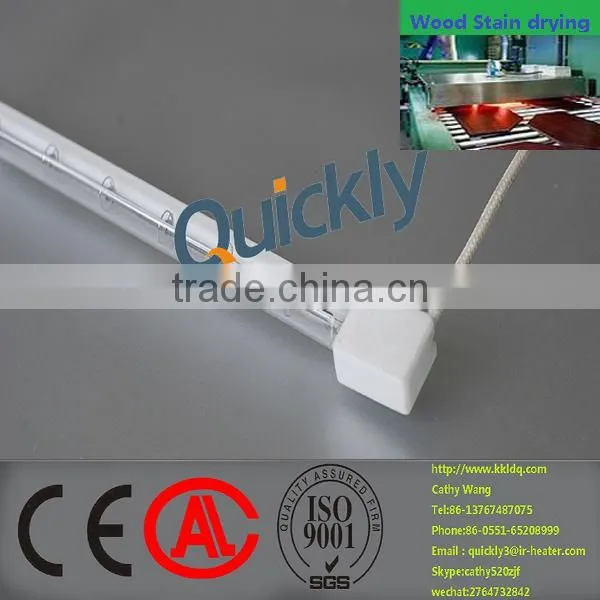

Single Quartz Tube,halogen Infrared Heating Element Heat Lamp

Name: Single Quartz Tube,halogen Infrared Heating Element Heat Lamp
Brand: Quickly
SKU: 141796470
Availability: InStock

US$ 1 - 200 MOQ: 300 Pieces

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Quickly

Application:

heating and drying, widely used in all kinds of industry heating process

Hefei Quickly Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Quickly

Application heating and drying, widely used in all kinds of industry heating process

Surface Treatment Gold Coated

Outside Diameter 10,12,15,23*11,33*15mm

Product description

Technical Parameters

Voltage	100, 110, 120, 220, 230, 240 V
Wattage	300 -6000W
Dia	10,12,15,20,818,2311,33*15mm
Electricity saving rate	30%
Wavelength	2.4-2.7µm
Response Time	1 - 2s
Electric heat transformation rate	>98%
Temperature(surface)	900℃
Max heating length	6400/ 2400 mm
Wire temperature	800 °C - 950 °C
Max power per unit area	150 kW /m

IR Benefits and Features

Long life	More than 10000h
Instant heat	within 1-4 min reaction time
High power density	up to 80w/cm
High control ability	neither ballast nor special circuits are necessary for basic usage
No air droughts	because of radiation
Clean	No byproducts, no pollution
Extensive assortment	voltage,wattage,length,base,cables and other specifications are available
High efficiency	more than 85% heat efficiency of full power.
Economical	More than 85% of consumed energy transmitted into infrared heat
Heat can be focused	Same optical properties as light,can be directed by reflectors
Safe	Quartz envelope, heat shock resistant
