Home > Products > Solar PV Industry IR lamp > Quartz Tubular Infrared Lamps for Roth&Rau PECVD

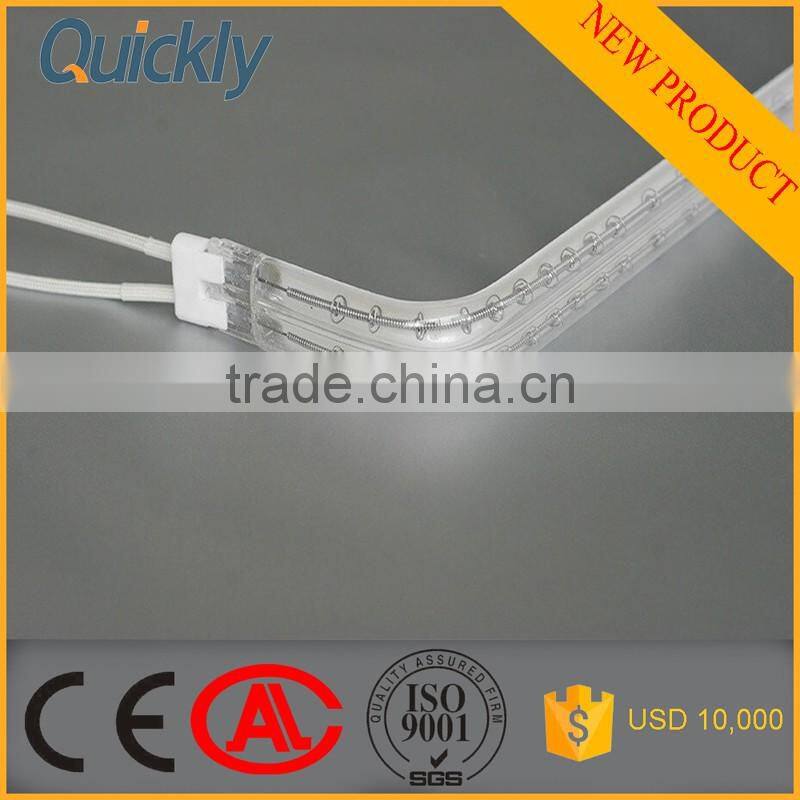

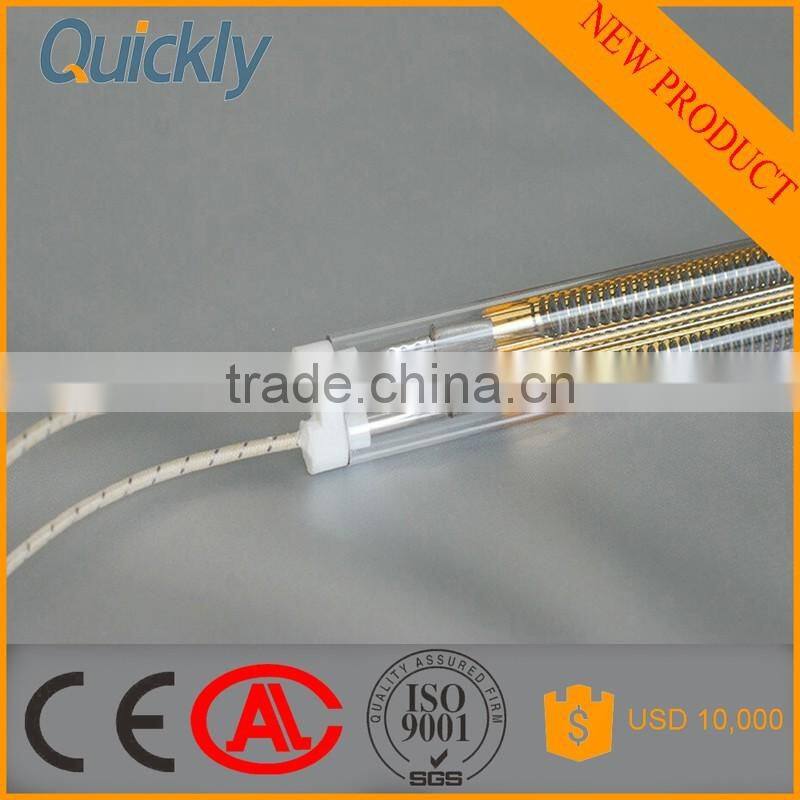

Quartz Tubular Infrared Lamps for Roth&Rau PECVD
- Shanghai
- T/T
You May Like
-
Quartz Halogen Infrared Heating Lamps for Screen Printer Conveyor Dryer
-
Quartz Tubular Infrared Heating Lamps for Conveyor Dryer
-
Quartz Halogen Shortwave Infrared Emitter for PECVD
-
White Plated Shortwave IR Lamps for Solar Screen Printer Dryer
-
Quartz Tubular Infrared Lamps for for Solar Screen Printer Dryer
-
Single Quartz Tube,halogen Infrared Heating Element Heat Lamp
Product Details
| Place of Origin | Anhui, China | Brand Name | Quickly | |
| Application | heating and drying, widely used in all kinds of industry heating process | Surface Treatment | Gold Coated | |
| Outside Diameter | 10,12,15,23*11,33*15mm | |||
Product Description
Photovoltaic Solar Application
Product | Short wave IR heat lamp | Medium wave IR heat amp | |
Wave length | 0.75-1.0μm | 2.4-2.7μm | |
Heating response time | 1 second | 1-4min | |
Voltage | 110v/230v/380v/400v,customized available | ||
Max. Length for twin tube | 6000mm | ||
Max. filament temp | 2200°C | 900°C | |
Watt density | 35-200w/cm | 10-30w/cm | |
Working expectation | 5000hours | 20000hours | |
Dia. of twin tube | 23×11mm / 33×15mm | ||
Wall thickness of tube | 0.8mm,1.0mm,1.2mm,1.5mm,1.8mm | ||
Dia. of single tube | Φ10mm, Φ11mm, Φ12mm, 15mm,18mm, 20mm | ||
Max. length for single tube | 1600mm(Φ12mm) | 2000mm(Φ15mm) | |
Main material | filament | tungsten filament | Ni80Cr20 heating wire |
| quartz glass | can resist high temperature, sudden hot and cold | |
Inner structure of quartz tube | Quartz envelope profile , vacuum processing with protective halogen gas inflation, which provide a safe working environment | Quartz envelope profile , Non-vacuum | |
Surface of quartz tube | 1. White reflector/Gold reflector: High heat radiation rate 2. Transparent tube: Normal style 3. Ruby tube for shortwave | ||
