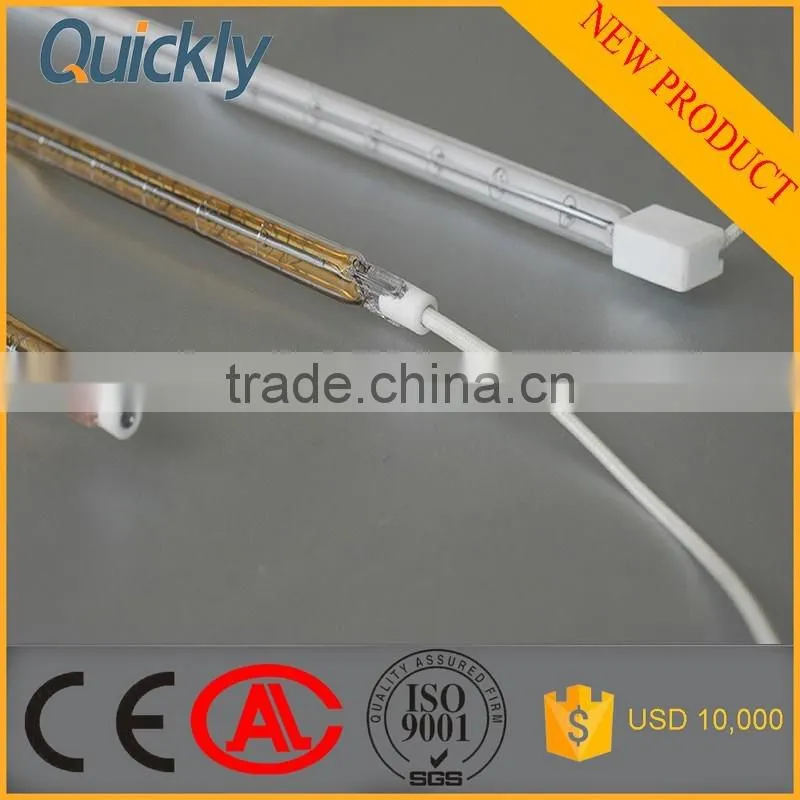

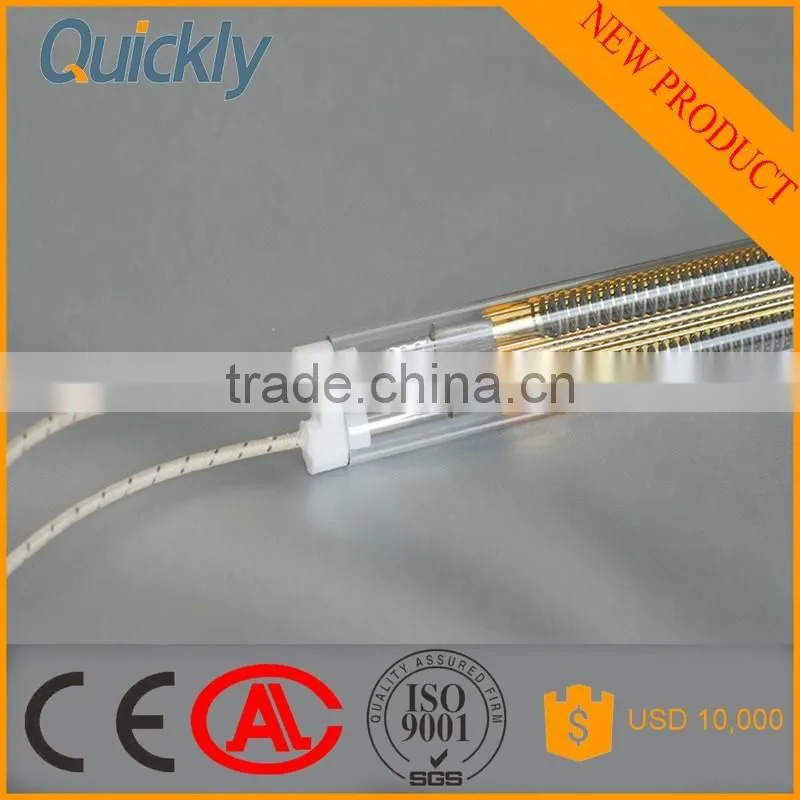

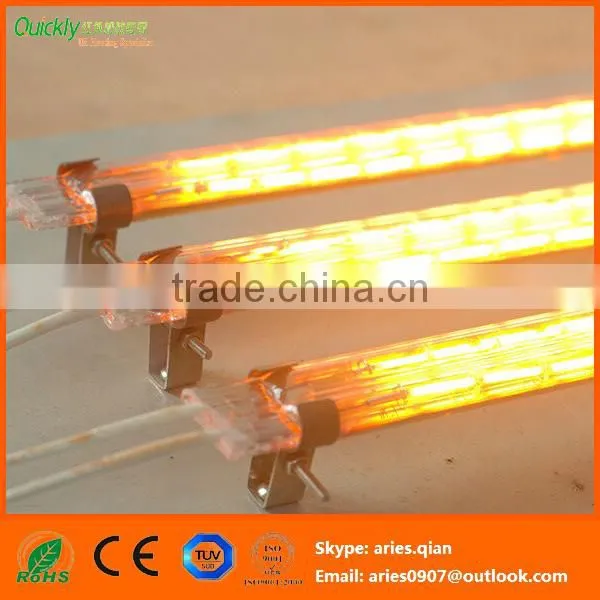

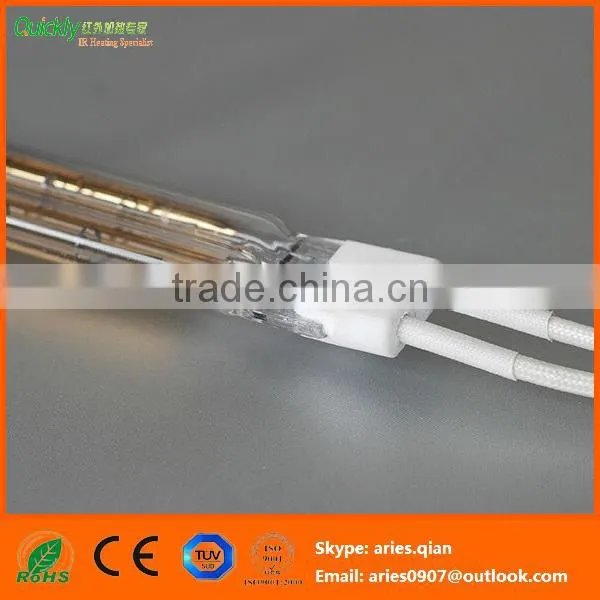

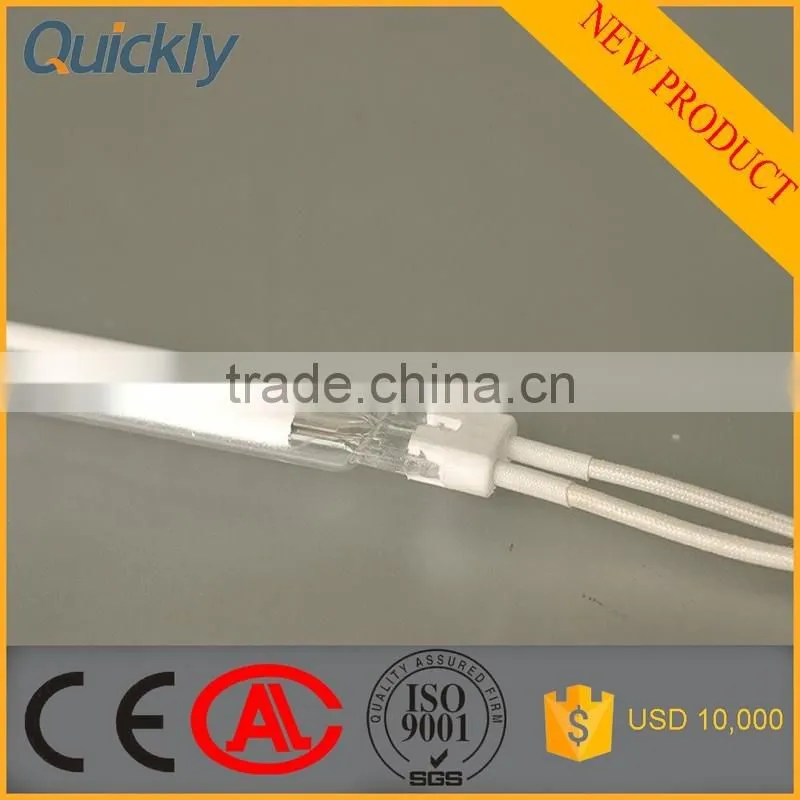

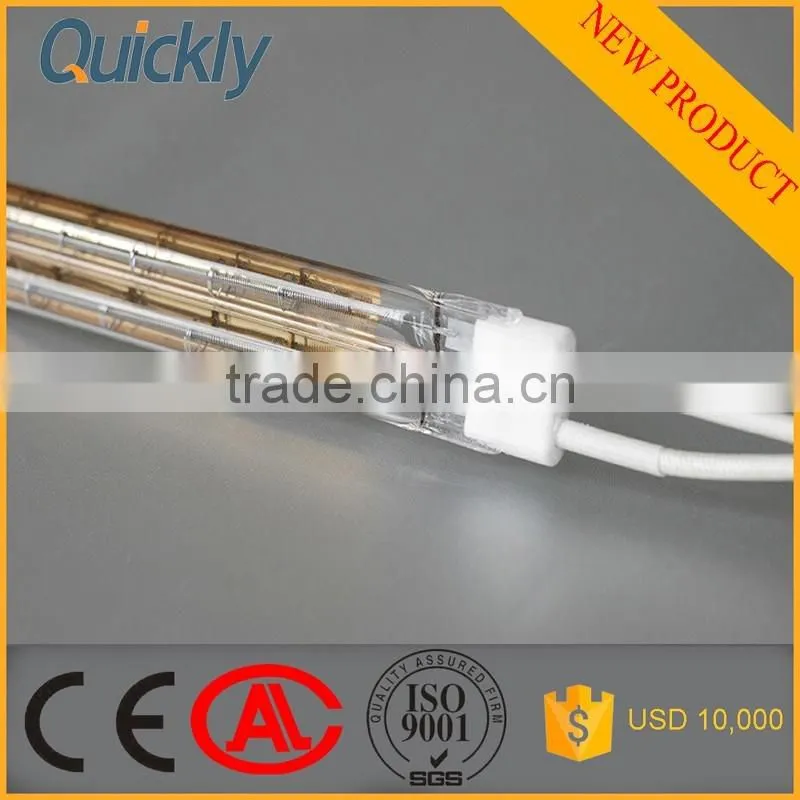

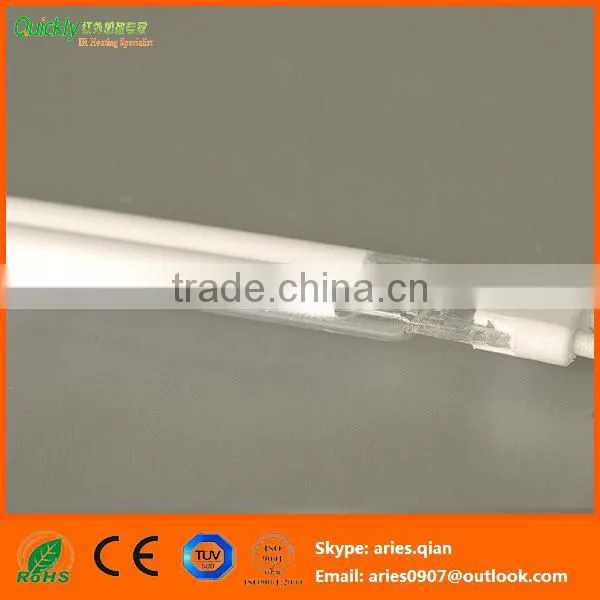

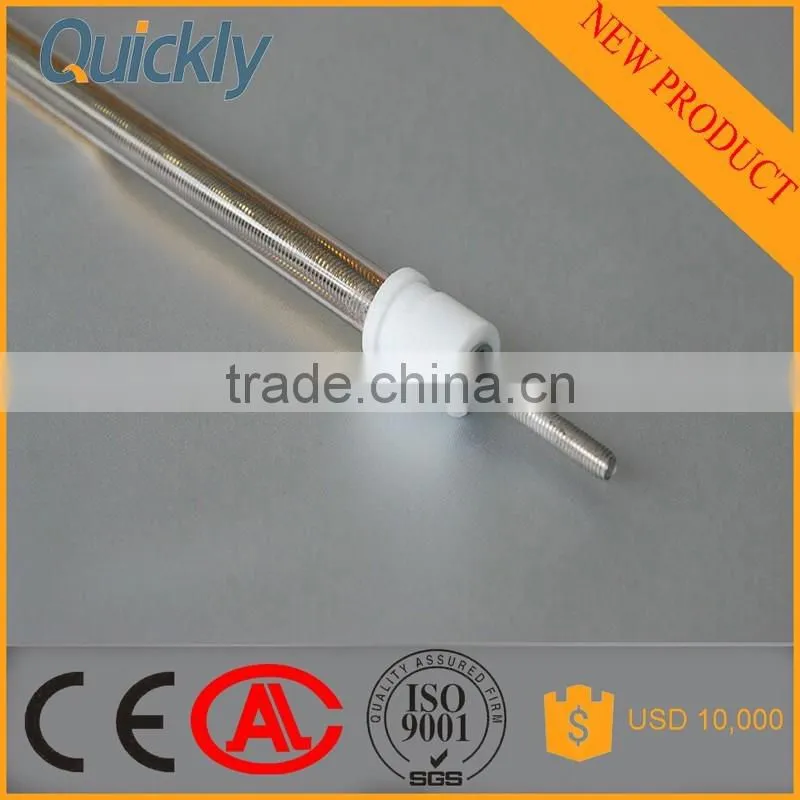

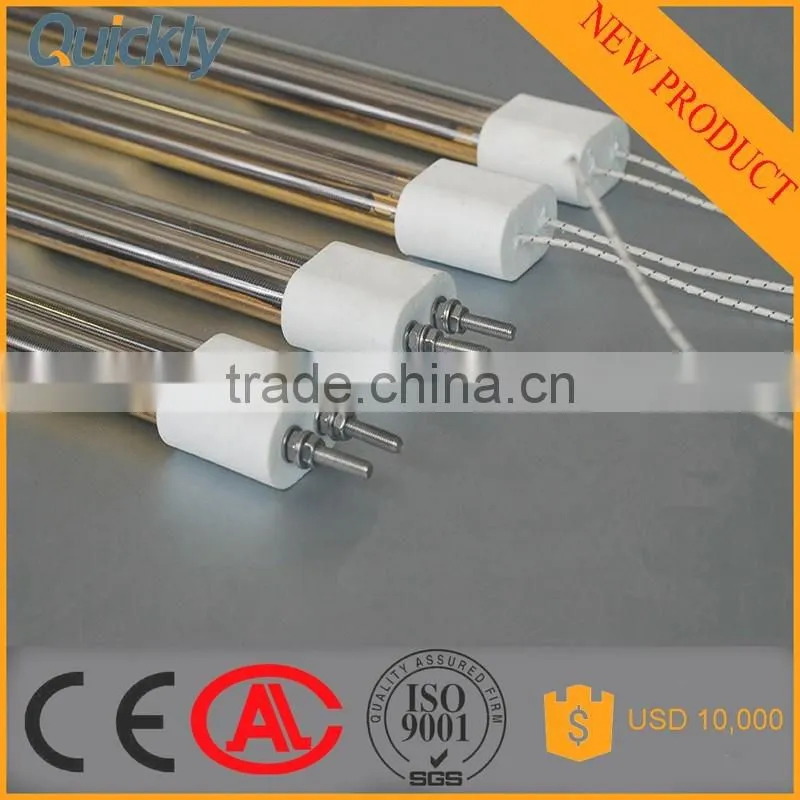

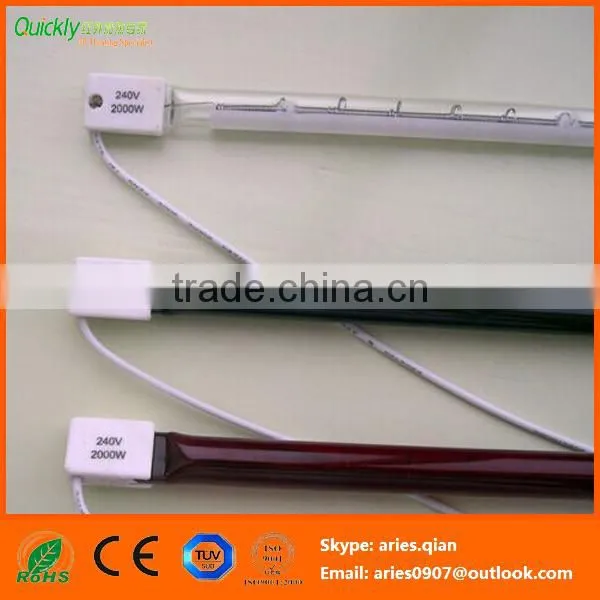

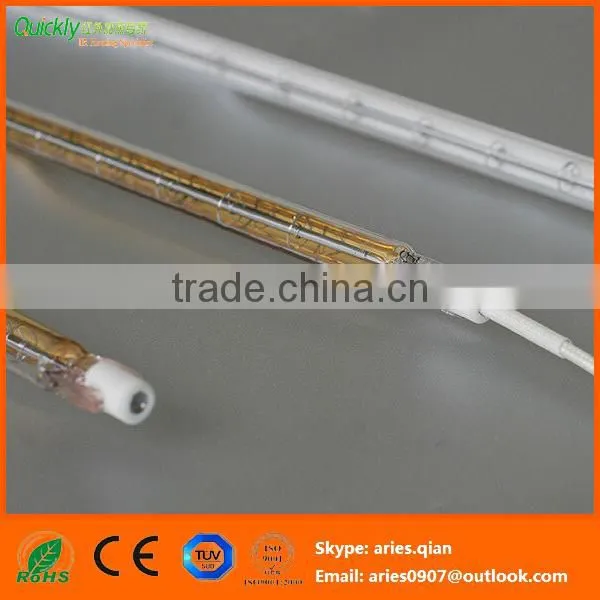

Shenzhen office Industrial heater infrared heating element
Technical data:
Product |
Short wave IR heat lamp |
Medium wave IR heat amp |
||
Wave length |
1.0-1.4μm |
2.0-4.0μm |
||
Heating response time |
1 second |
1-4min |
||
Voltage |
110v/230v/380v/400v, customized available |
|||
Max. Length for twin tube |
6000mm |
|||
Max. filament temp |
2200°C |
900°C |
||
Watt density |
35-200w/cm |
10-30w/cm |
||
Working expectation |
5000hours |
20000hours |
||
Dia. of twin tube |
23×11mm / 33×15mm |
|||
Wall thickness of tube |
0.8mm,1.0mm,1.2mm,1.5mm,1.8mm. the thicker, the strength is stronger. |
|||
Dia. of single tube |
Φ10mm, Φ11mm, Φ12mm, Φ15mm, Φ18mm, Φ20mm, basen on the total length of the quartz tube you need. |
|||
Max. length for single tube |
1200mm(Φ10mm) |
1500mm(Φ12mm) |
||
|
Main material |
filament |
tungsten filament |
Ni80Cr20 heating wire |
|
quartz glass |
can resist high temperature, sudden hot and cold |
|||
|
Inner structure of quartz tube |
Quartz envelope profile , vacuum processing with protective halogen gas inflation, which will provide a safe working environment. |
Quartz envelope profile , Non-vacuum |
||
Surface of quartz tube |
1. White reflector/Gold reflector: High heat radiation rate 2. Transparent tube: Normal style 3. Ruby tube for shortwave |
|||
Shenzhen office Industrial heater infrared heating element
1.About Quickly
Quickly Electric is a leading manufacture of infrared lamp in China.Our infrared lamps
can replace the Ushio, GE, Philips and some other brands you may use . More
competitive and stable in supplier chain. With fast delivery time and good quality lamps.
2.Can you make custom size lamp?
We have ODM and OEM services. Custom size,custom voltage and wattage,custom
reflector and etc.
Just tell me what you need,or providing drawings.We will produce you the lamp you
want.
3.How long about the lamp life time?
Short wave infrared lamp life time: more than 5000 hours(Assume high power density
lamps),Medium wave infrared lamp life time: more than 20000 hours.
4.How about our Production test before delivery?
Every lamp will be tested by our QC department before shipping. Any damage before
delivery will be replaced right away. Damage caused by delivery and non man-made reason within guarantee will also send the replacement heaters for you.
