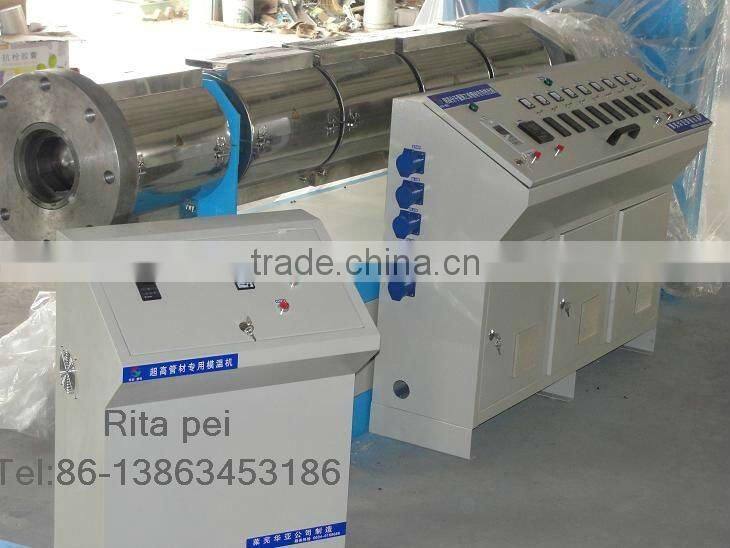

UHMWPE pipe extruder

Specifications

UHMWPE pipe exruder
Product diameter: 125mm wall thickness :5mm
high antiabrasive impact resistance,self-lubrication

UHMWPE pipe extruder

Model:90-125
Product diameter:125mm
Wall thickness: 5 mm
main technical performance parameters:
irstly , plastic extrusion machine

1, Gearbox:
A, gears hardened gears
B, thrust bearing Wafangdian Bearing Corporation products
C, ring seals using high-grade
2, barrel, screw
A, screw form:gh production of special screws
B, screw diameter:¢ 90mm,

screw L/D:20:1
, screw materials and processing technology:CMnALA,nitrided quenched
Nitriding depth: ≥ 0.6 mm nitride hardness ≥ HV800
D, processing: quenching  nitriding nitriding depth: ≥ 0.7 mm
Nitride hardness ≥ HV940
E, Barrel temperature control: automatic control of digital meters
F, barrel heating: Cast aluminum heat
G, barrel cooling: water barrel feed section of the work force segment, auto cooling fan
3, electrical:
A, control electrical appliances: Chint
B, low-voltage electrical appliances: Chint
C, temperature-controlled table: Japanese Omron
D, 18.5KW Motor: Siemens
E, frequency: AMB
F, powder dust dedicated cabinet
G, set of stainless steel powder hopper dedicated anti-
H, single-zone temperature-controlled stainless steel barrel housing

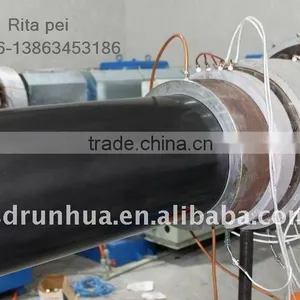

Second, the molding die
1, forming high molecular weight pipe diameter: ¢ 125
2, forming high molecular weight pipe wall thickness: 5
3, heating the form: cast aluminum or ceramic
Third, the stacking frame
Fourth, special mold temperature machine (patented technology)
