Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > New Hot Monocrystalline Solar Panel 250w

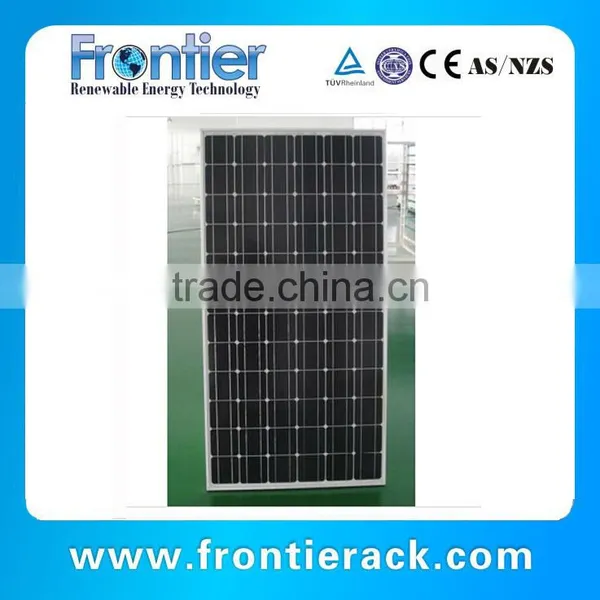

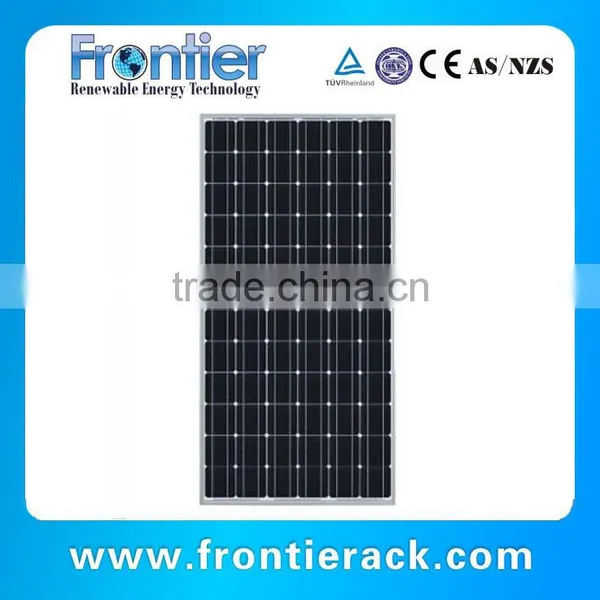

New Hot Monocrystalline Solar Panel 250w
US$ 0.51 - 0.55
MOQ: 10000 Watts
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Frontier
Model Number:
JX-250M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 Cheap pv Solar Panel 250w Monocrystalline Solar Panel HomeUS$ 0.51 - 0.55MOQ: 10000 Watts -
Highly Efficient Monocrystalline Solar Panel Sunpower 315 w Solar Panel PriceUS$ 0.51 - 0.55MOQ: 10000 Watts
-
China Frontier pv Solar Panel Price 310W Solar PanelUS$ 0.51 - 0.55MOQ: 10000 Watts
-
Best Price Sunpower Solar Panel 315W Mono Solar PanelUS$ 0.51 - 0.55MOQ: 10000 Watts
-
New Product Sun Power Solar Panel 245W Monocrystalline Solar Panel PriceUS$ 0.51 - 0.55MOQ: 10000 Watts
Place of Origin
Shanghai, China
Brand Name
Frontier
Model Number
JX-250M
Specification
Normal
Application
Commercial
Output Voltage (V)
31.2
Load Power (W)
monocrystalline solar panel 250w
Solar Power (W)
250w
Work Time (h)
24hours
Specifications
Monocrytalline Solar Panel,
Power: 250w
Certificate: TUV, IEC, ISO, CE, CEC
Warranty: 25 years
OEM
250W MONOCRYSTALLINE SOLAR PANEL
SPECIFICATION:
| Cells | Monocrystalline silicon solar cells 156x156mm | |||||
| Number of cells | 60(6×10) | |||||
| Dimensions (mm) | 1640 x 990 x 45 | |||||
| Weight (kg) | 21 | |||||
Electrical Characteristics
| Model | JX-250M | |||||
| Max Power Pm(W) | 250 | |||||
| Max Power Voltage Vm (V) | 31.2 | |||||
| Max Power Current Im (A) | 8.01 | |||||
| Open-Circuit Voltage Voc (V) | 37.3 | |||||
| Short-Circuit Current Isc (A) | 8.51 | |||||
| Cell Efficiency(%) | 17.2 | |||||
| Module Efficiency(%) | 15.4 | |||||
| Maximum System Voltage (V) | DC 1000(TUV) / DC 600(UL) | |||||
| Power Tolerance(%) | 0~+3 | |||||
| Series Fuse Rating (A) | 15 | |||||
Components & Mechanical Data
| Front Glass | High Transparency Tempered Glass, 3.2mm | |||||
| Junction Box | Pass the TUV Certificate PPO(black/IP65) | |||||
| Output Cables | 4mM2/0.9m | |||||
| Connectors | MC4(UV resistance and self-locking/IP67) | |||||
| Frame | Anodized aluminum alloy type 6063-T5 | |||||
| Encapsulation Material | EVA (0.50 ± 0.03mm thickness) | |||||
| Back Foil | White TPT (0.32 ± 0.03mm thickness) | |||||
| Fixing adhesive | Silicone Sealant(White) | |||||
| Temperature Range(°C) | -40°C to +90°C | |||||
| Max Load(Kpa) | 2.4 wind load / 5.4 snow load | |||||
| Temperature Range(°C) | -40°C to +90°C | |||||
Packing: 23pcs/carton pallet, 28pallets/40HQ container
