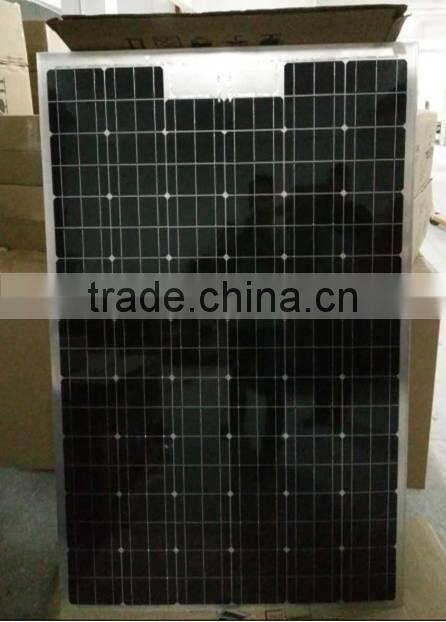

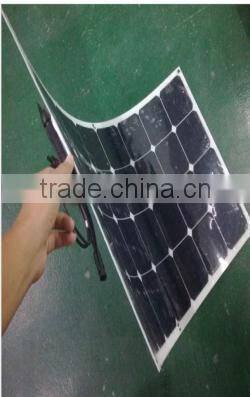

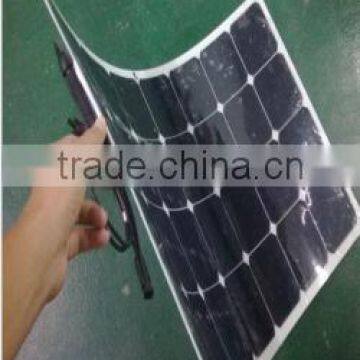

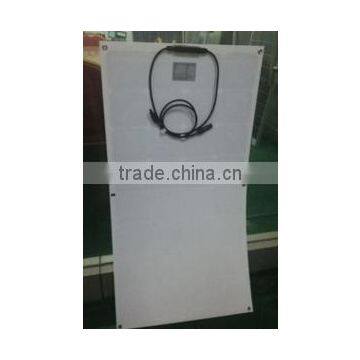

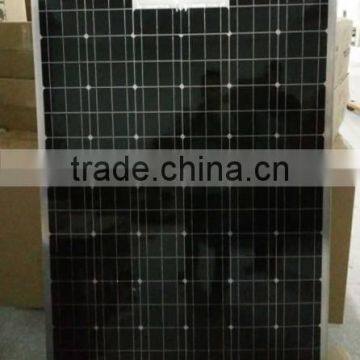

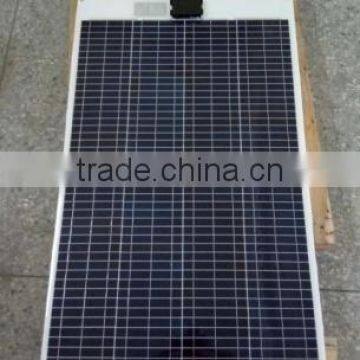

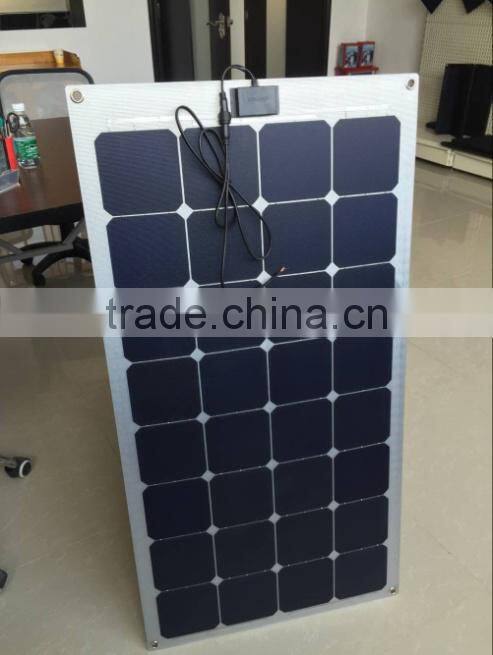

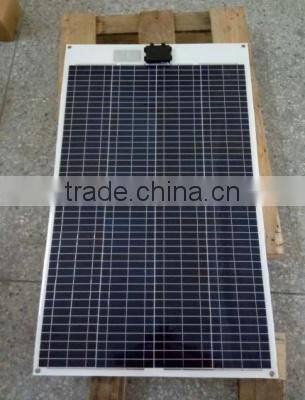

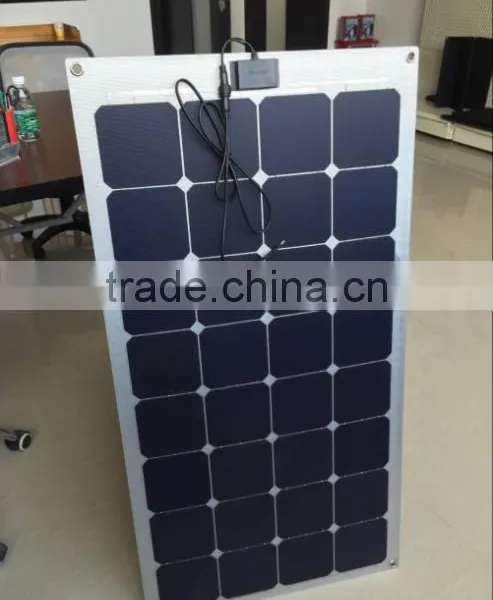

100W/18V Semi Flexible Solar Cell Panel

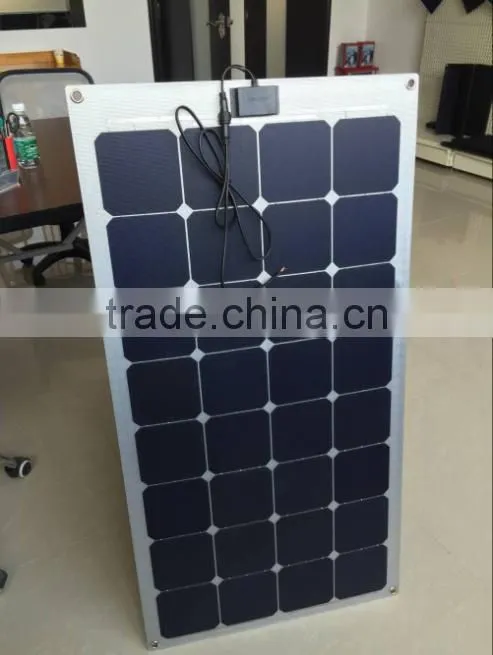

100W/18V Semi flexible solar cell panel

Products

Solar cell module

Module type

DG-M100W

Power at max          (W)

100W

Voltage at Pmax       (V)

18V

Current at Pmax       (A)

5.55A

Open-circuit voltage  (V)

21.24V

Short-circuit current (A)

6.11A

Max. system voltage   (V)

1000V

Cell coefficient      (%)

25%

Module coefficient    (%)

24%

Cell type   (mono / poly)

sunpower/American mono

Cell quantity     (PCS)

32pcs  (4x8)

Cell dimension       (mm)

125x125

Temperature coefficient of Pmax (%/℃)

-0.45%/℃

Temperature coefficient of Voc(%/℃)

-0.35%/℃

Tolerance(%)

±5%

Temperature coefficient of Isc(%/℃)

+0.05%/℃

Operating temperature range

-40℃~90℃

Test standard conditions

Am1.5   25℃  1000W/m2

N.W.  (Kg)

3Kg

Module dimension    (mm)

1050x540x3

G.W. (Kg)

3.5Kg

Packing quantity and sizes  (mm)

Structure

Transparent PET+EVA + Solar cell + EVA + white PET + International standard junction box

Junction box

International standard junction box

TUV certificated
