Professional Security 3.2 KWh / 4.0 KWh Lithium Ion '1500 w / 2000 W/Off Grid Home Solar Energy Storage System

Professional Security 3.2 KWh / 4.0 KWh Lithium Ion '1500 w / 2000 W/Off Grid Home Solar Energy Storage System thumbnail-1
Professional Security 3.2 KWh / 4.0 KWh Lithium Ion '1500 w / 2000 W/Off Grid Home Solar Energy Storage System thumbnail-2
Professional Security 3.2 KWh / 4.0 KWh Lithium Ion '1500 w / 2000 W/Off Grid Home Solar Energy Storage System photo-1
Professional Security 3.2 KWh / 4.0 KWh Lithium Ion '1500 w / 2000 W/Off Grid Home Solar Energy Storage System photo-2
US$ 0.1 - 0.2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Frontier
Model Number:
FES3215B/FES4020B
Contact Supplier Request Quote Chat Now
Shanghai Frontier Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Frontier
Model Number FES3215B/FES4020B
Specification Normal
Application Home
Output Voltage (V) 110V/230V
Load Power (W) 1500W/200W
Solar Power (W) 1200W/1500W
Work Time (h) 2-3hours

Professional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage SystemProfessional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage SystemProfessional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage System



3.2kWh/4.0kWh Lithium ion Battery 1500W/2000W Off grid Home Solar Energy Storage System

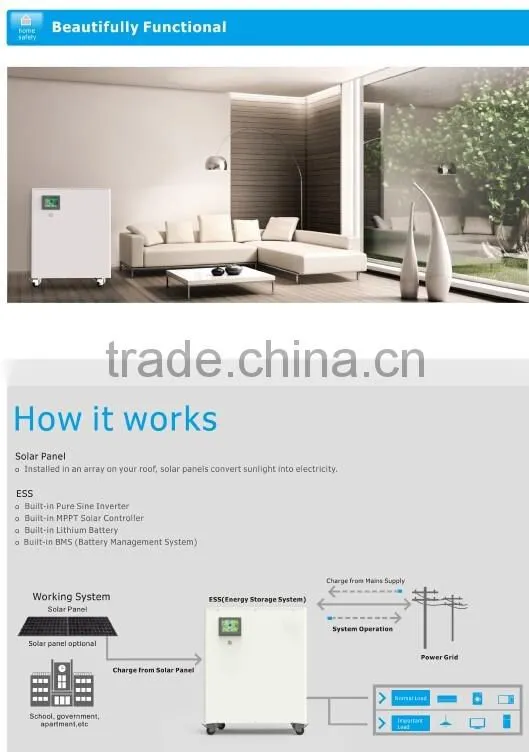

A Solar Energy Storage System with Solar & AC charger, Li-ion






Specifications





Model No.

FES3215B

FES4020B

Battery

Battery Capacity

4.0KWh

Battery Type

Li-ion Battery

Battery Cell

Samsung ICR18650-3.7V-2600mAh

Output

Rated Output Power

2000W

Peak Output

3000W

Output Voltage

110/230V

Output Frequency

50Hz/60Hz

Overload Ability

120%<load<130% @10min;
130%<load<150% @10s

UPS Function

YES

On/off Grid

Off Grid

Max Efficiency

92%(>70% Load)

AC Charge

Input Voltage

88~264Vac

Power Factor

≥0.94(full load)

Input Frequency

50/60Hz±5 Hz

Max Charge Power

600W

Max Efficiency

>92%

PV Charge

Max Input Power

1200W

1500W

Start-up Voltage

75Vdc

MPPT Amount

2

MPPT Input Voltage

75~140 Vdc

Max Input Voltage

150 Vdc

MPPT Efficiency

99.50%

Max Efficiency

>96%

Solar Charging Model

MPPT





 Professional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage System

Professional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage System

     Professional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage System      Professional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage SystemProfessional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage SystemProfessional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage SystemProfessional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage SystemProfessional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage System



Product pictures

 Professional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage System

Certifications&paten

     Professional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage System

 Professional security 3.2 kWh / 4.0 kWh Lithium ion '1500 w / 2000 w/Off grid Home Solar Energy Storage System
