Multi-functional Two post lifting parking system at the best price

FOB Price

USD $3,000 - $3,000 / Unit

2000 Units(Min.Order)

Supply Ability 300 Unit / Units per Month
Port Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Parking Lift	Height (mm)	4402mm
Width (mm)	2100 mm	Place of Origin	Shanghai, China
Brand Name	frontier	Model Number	DTPP-606H
Warranty	1 Years

Product Description

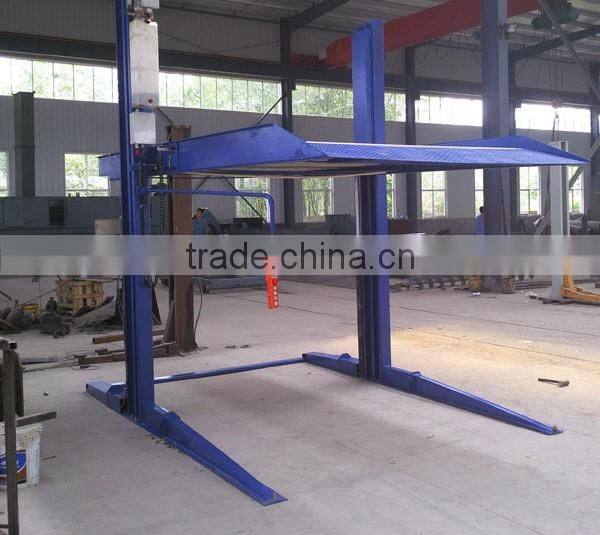

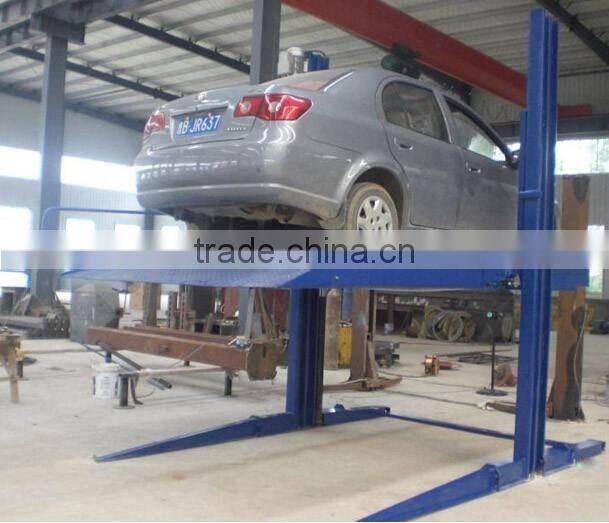

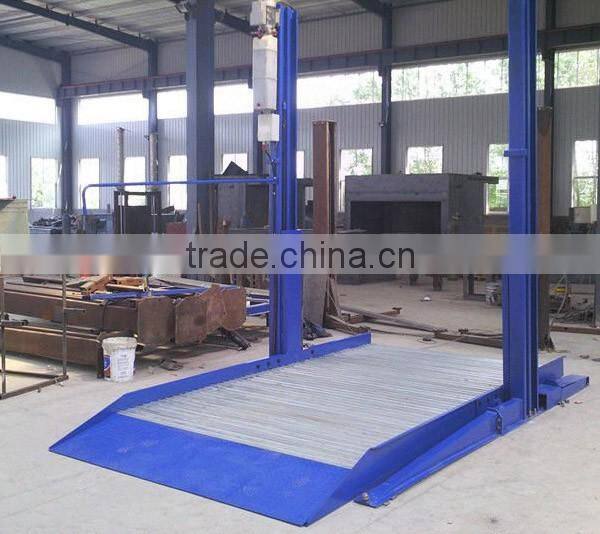

Two post parking lifter for sale

1. Operation principle:
The up and down carport is one unit, it adopts hydraulic transmission method. The down parking can directly access to vehicles, and access to the upper vehicles must remove the down carport.

2. Features:

a. Low profile design with advanced hydraulic direct drive double stage cylinders for better lifting performance

b. Column can be shared between two machines with our s

Specifications

Product	Two post car parking lift
Specifications	Lifting capacity	2700kg
	Overall height	3539mm
	Maximum lifting height	2100mm
	Height first level	1650mm
	Width between post	2117mm
	Lifting time	50s
	Drop time	40s
	Relative humidity	80%
	Working pressure	18Mpa
	Working temperature	-35 °C ~ 40 °C
	Working noise :	≤ 75dB ( A )
	Rated oil pressure	18Mpa
	Motor capacity	220V/380V/ ,60/50HZ
	Power	2.2kw
Notice	1. The lift can be grouped to one set (by two units, four units,six units, according to your requirements). 2. Strengthened Column 3. every 2 post lifts share one common post
Packaging details	One 20’ container:9sets One 40’container: 18sets Export Standard Packing
Shipment date	Within 7days after receipt of payment
Warranty time	1year, apart from artificial faults

Product pictures
